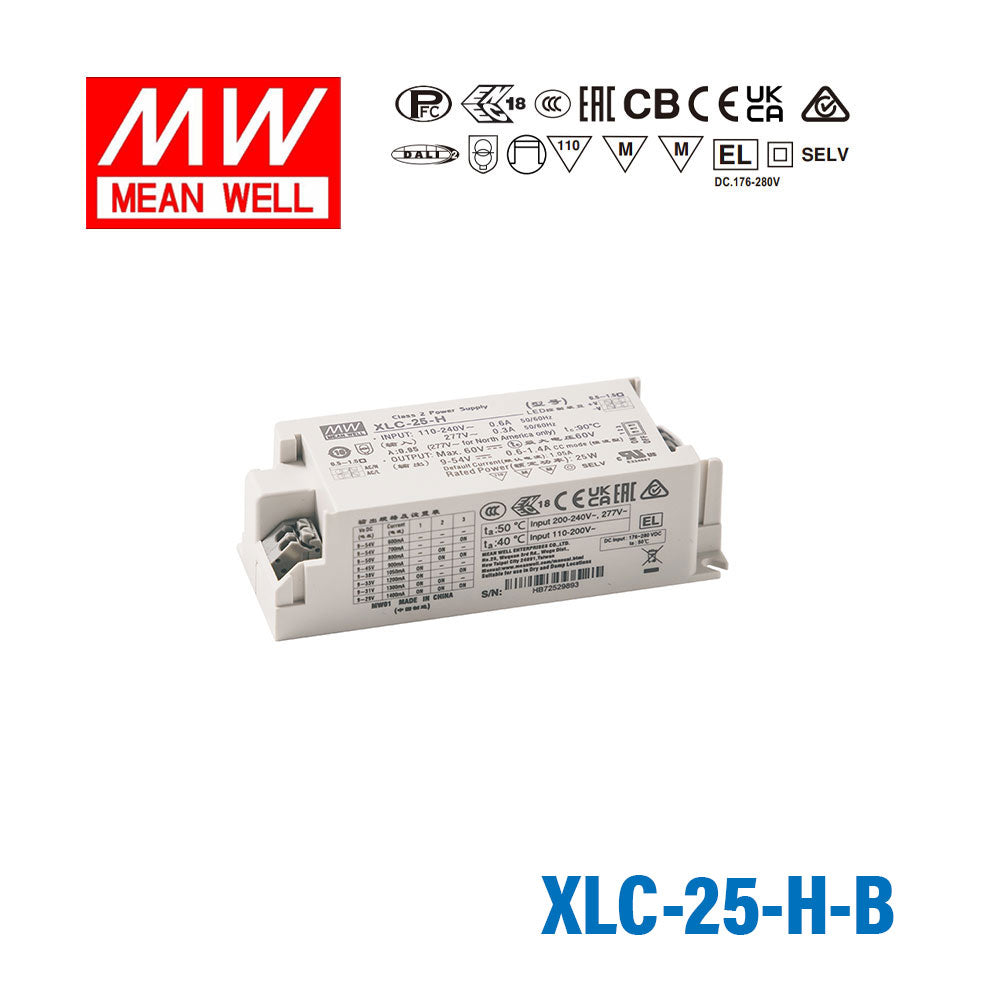

Mean Well XLC-25-H-B LED Driver 25W 700mA 9~54V Constant Power, 3 in 1 Dimming, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-B LED Driver 25W 700mA 9~54V Constant Power, 3 i...
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
::specification::
Frequently Asked Questions
Can the XLC-25-H-B drive LED downlights with dimming control from a building automation system?
Yes. The XLC-25-H-B supports 3-in-1 dimming (0–10V, PWM, and resistance), allowing it to interface with most commercial building automation and lighting control systems. It delivers 700mA constant current across a 9–54V output range for up to 25W.
Is the XLC-25-H-B suitable for dimmable LED signage modules?
Yes. The driver supports 3-in-1 dimming and its current is adjustable from 0.3A to 1.05A via dip switch, so it can be matched to signage LED modules with varying drive current requirements while maintaining dimming capability.
Can I use the XLC-25-H-B in a flicker-sensitive retail or museum lighting application?
Yes. The XLC-25-H-B is rated flicker-free, making it appropriate for retail display cases, museum accent lighting, and other environments where flicker could affect visual quality or occupant comfort.
Does the XLC-25-H-B work for tunable-white or multi-channel LED fixtures?
The XLC-25-H-B is a single-channel constant current driver outputting 700mA. It is not natively designed for multi-channel tunable-white control; a separate channel driver would be needed per LED string. However, it can dim a single string as part of a larger tunable-white system.
What dimming interfaces does the XLC-25-H-B accept?
The XLC-25-H-B accepts 3-in-1 dimming: 0–10V analog, PWM signal, and resistance-based dimming. All three interfaces share the same driver model, so the control method is selected by how the dimming input is wired.
Is the XLC-25-H-B rated for indoor built-in luminaire use?
Yes. The XLC-25-H-B is designed for built-in use within luminaire housings. Its operating temperature range of -25°C to +90°C accommodates the elevated ambient temperatures typical inside recessed or enclosed fixtures.
