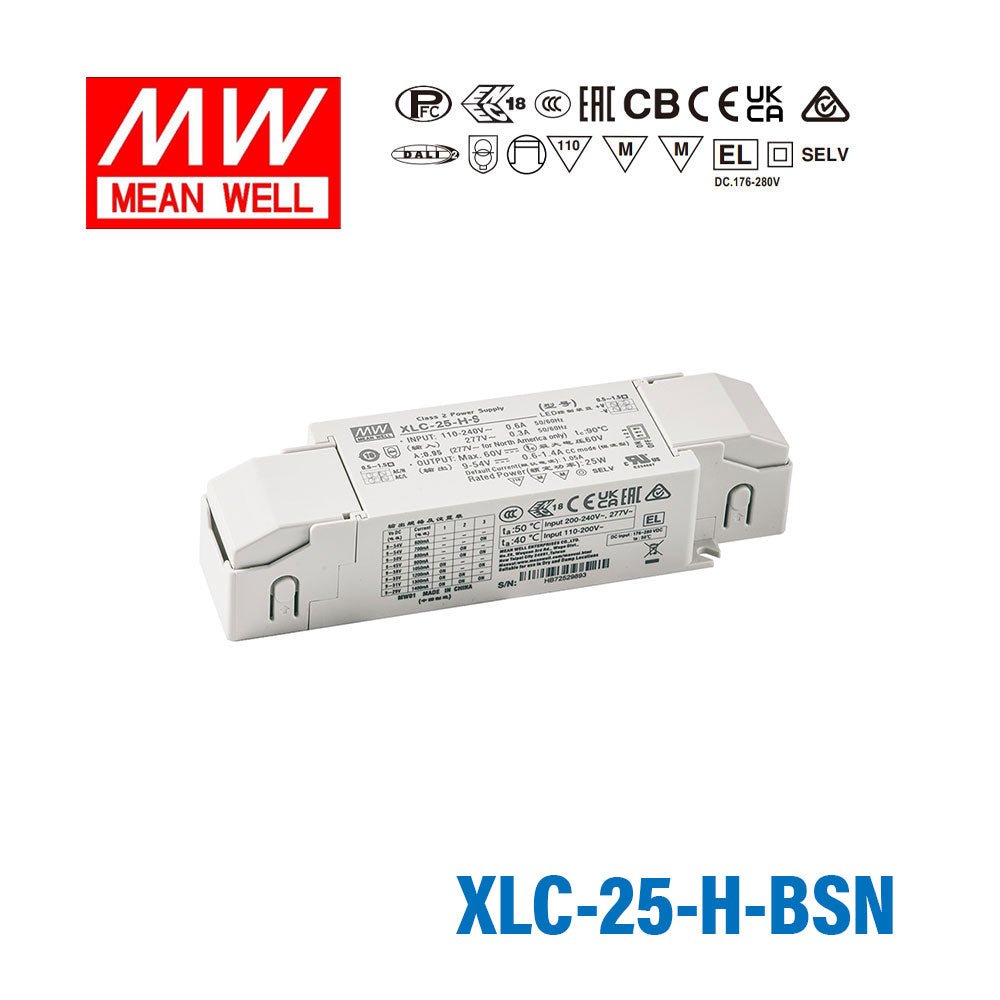

Mean Well XLC-25-H-BSN LED Driver 25W 700mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-25-H-BSN LED Driver 25W 700mA 9~54V Constant Power, 3...
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25 Watt
-
Output Voltage60 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
::specification::
Frequently Asked Questions
Can the XLC-25-H-BSN be used in LED downlights installed in locations where the driver is inaccessible after installation?
Yes. The XLC-25-H-BSN combines NFC current setting with 3-in-1 dimming, so both current adjustment (0.3–1.05A) and dimming control can be configured or modified without physically accessing the driver. This is ideal for concealed luminaire installations.
Is the XLC-25-H-BSN appropriate for LED signage that requires periodic brightness adjustments?
Yes. The NFC interface allows current output adjustment from 0.3A to 1.05A using a smartphone, making it straightforward to retune brightness for seasonal or campaign changes on illuminated signage without wiring changes.
Can the XLC-25-H-BSN drive small LED arrays in pendant or suspended lighting where cable strain is a risk?
Yes. The XLC-25-H-BSN includes a strain-relief fitting that protects the cable connection under mechanical load. Combined with its 25W, 700mA constant current output and 9–54V compliance, it is well-suited for pendant fixtures where the driver hangs with the luminaire.
How does the XLC-25-H-BSN compare to the XLC-25-H-BS?
Both the XLC-25-H-BSN and XLC-25-H-BS are 25W, 700mA drivers with 3-in-1 dimming and strain-relief. The BSN uses NFC for current setting, while the BS uses a dip switch. Choose BSN where wireless commissioning is needed; BS where a simple physical switch adjustment is preferred.
What input voltage range does the XLC-25-H-BSN accept?
The XLC-25-H-BSN accepts 100–305VAC input, covering both 100–120V and 200–240V mains supplies worldwide. This wide range eliminates the need for a separate model when deploying across regions with different grid voltages.
Is the XLC-25-H-BSN suitable for use in cold-climate outdoor enclosures?
The XLC-25-H-BSN operates from -25°C to +90°C. When installed inside a suitably rated weatherproof enclosure, this temperature range supports outdoor deployment in cold climates. The driver itself has no independent outdoor IP rating and requires enclosure protection.
