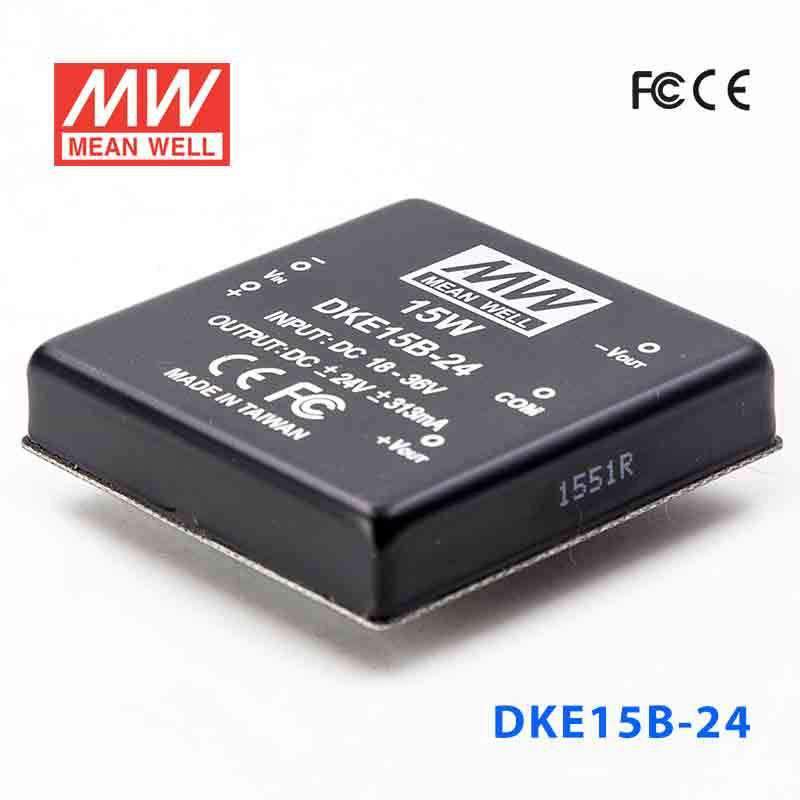

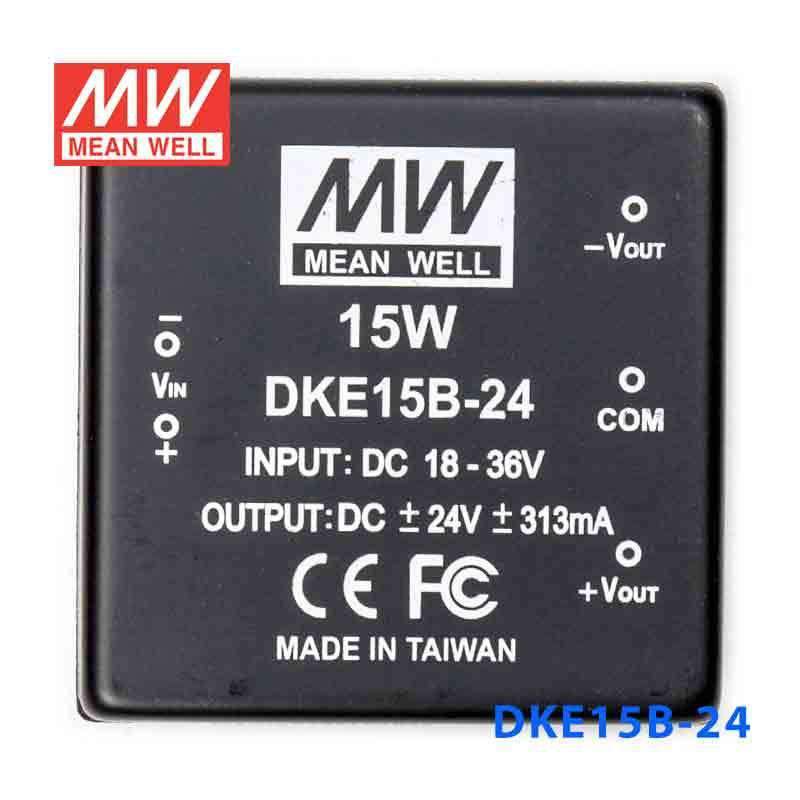

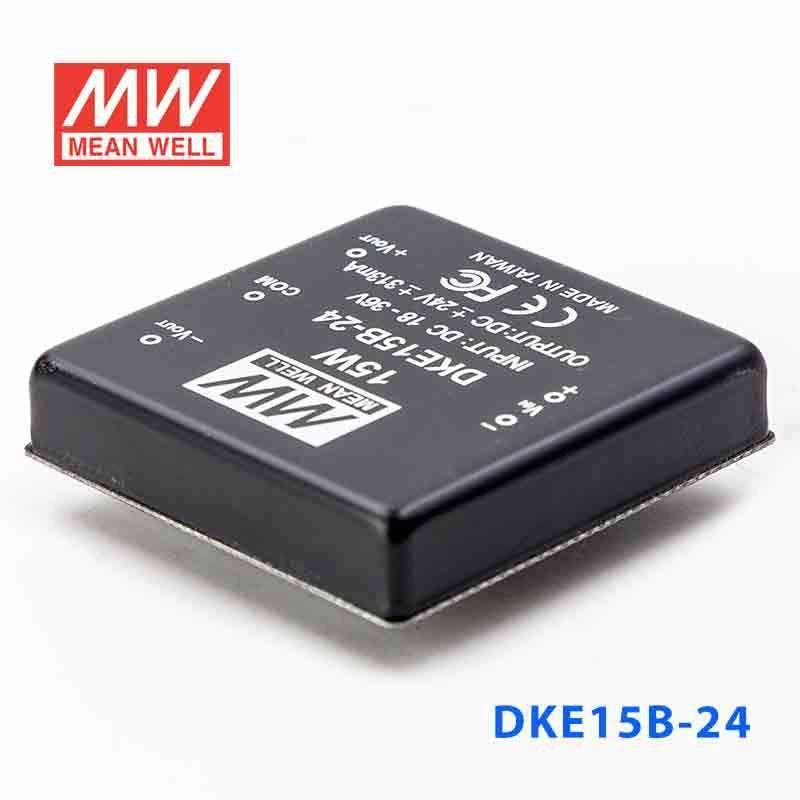

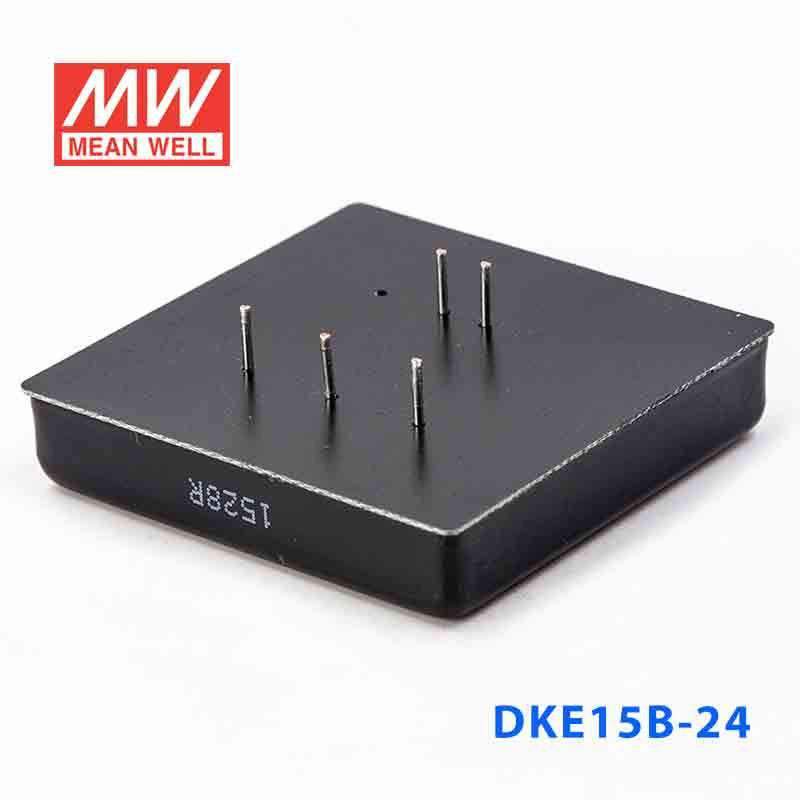

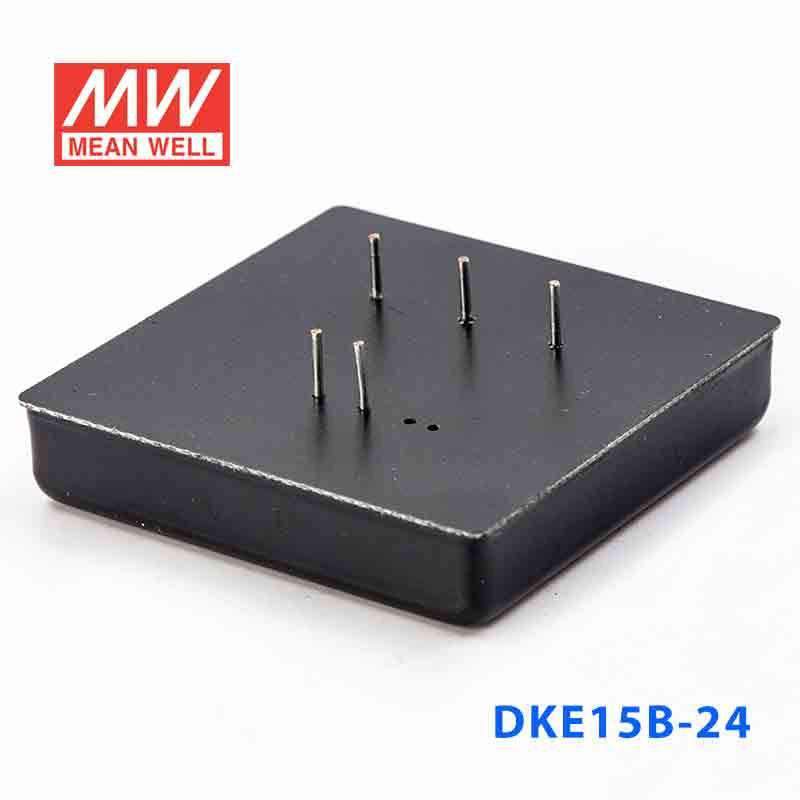

Mean Well DKE15B-24 DC-DC Converter - 15W - 18~36V in ±24V out 313mA
The DKE15B-24 is a 15W Mean Well DC-DC converter (input: 18~36VDC, operating temperature: -25~+71°C).
Key Features
- ✓ Input voltage: 18~36VDC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 313mA
- ✓ I/O isolation: 1000V
- ✓ Operating temperature: -25~+71°C
- ✓ Safety certifications: CE, EMC, FCC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.31 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15B-24 for industrial control electronics that need a ±24V rail?
Yes, this model is intended for applications that need a ±24V constant-voltage output and fit within a 15W power budget. It accepts 18-36VAC input, so it is best matched to industrial control or interface electronics operating in that input range.
Is the DKE15B-24 appropriate for automation or communications interface boards?
It can be used where an interface board requires a regulated ±24V output rather than a lower-voltage rail. The unit provides 15W total output power and is designed for systems with 18-36VAC input available.
Can this converter work in compact embedded or OEM equipment?
Yes, its 50.8 x 50.8 x 11.0 mm size and 0.065 kg weight make it suitable for compact embedded or OEM assemblies. It is a better fit for low-power ±24V sections than for larger loads because the converter is rated at 15W.
Can the DKE15B-24 be used in unprotected outdoor enclosures?
The operating temperature range is -25°C to +71°C, so the temperature spec is broad enough for many controlled environments. However, no IP rating is provided, so the listed specs do not support direct exposure to outdoor dust or water.
What is the difference between the DKE15B-24 and the other DKE15B versions?
All DKE15B models are 15W converters with 18-36VAC input, but they differ by output. The DKE15B-05 is 5V at 1.5A, the DKE15B-12 is 12V at 625A, the DKE15B-15 is ±15V at 500A, and the DKE15B-24 is ±24V at 313A.
