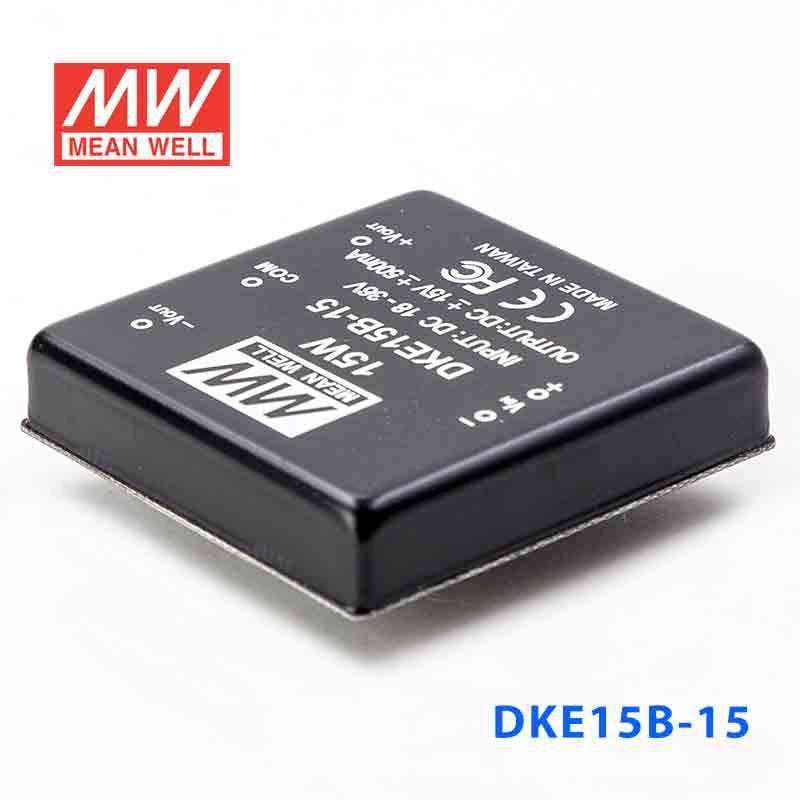

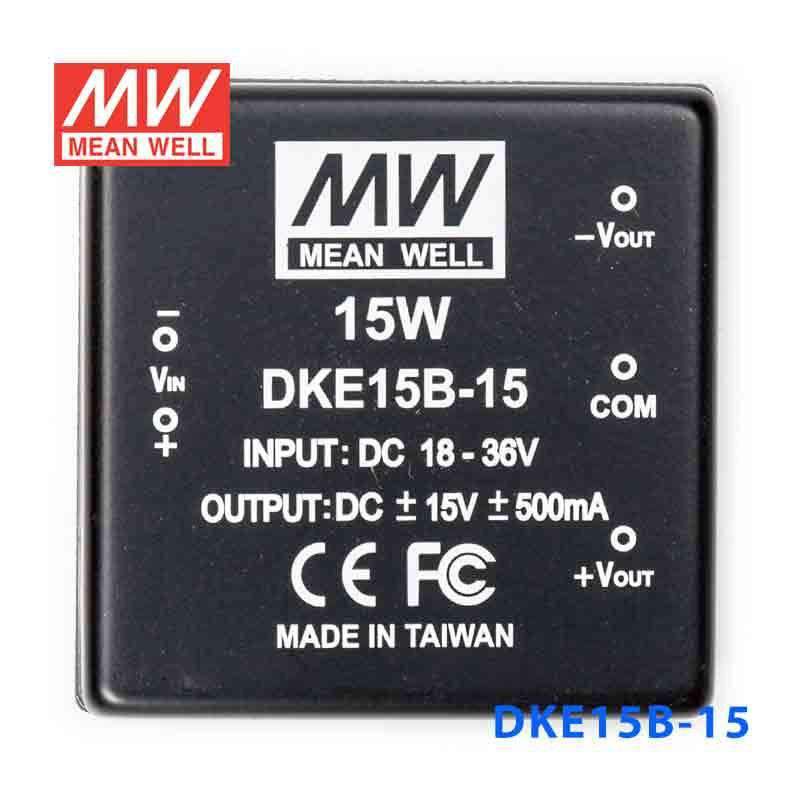

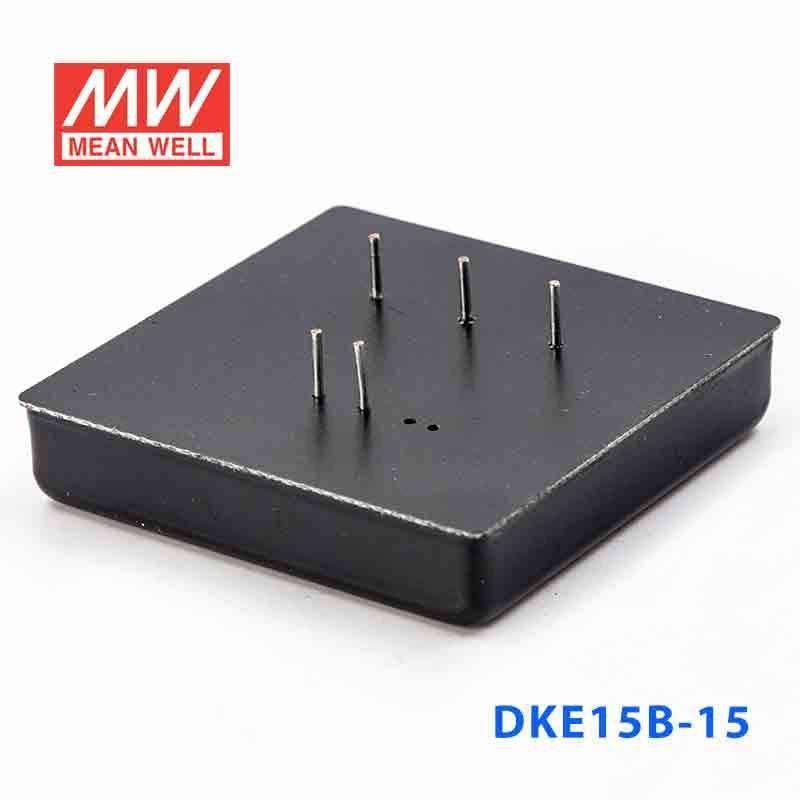

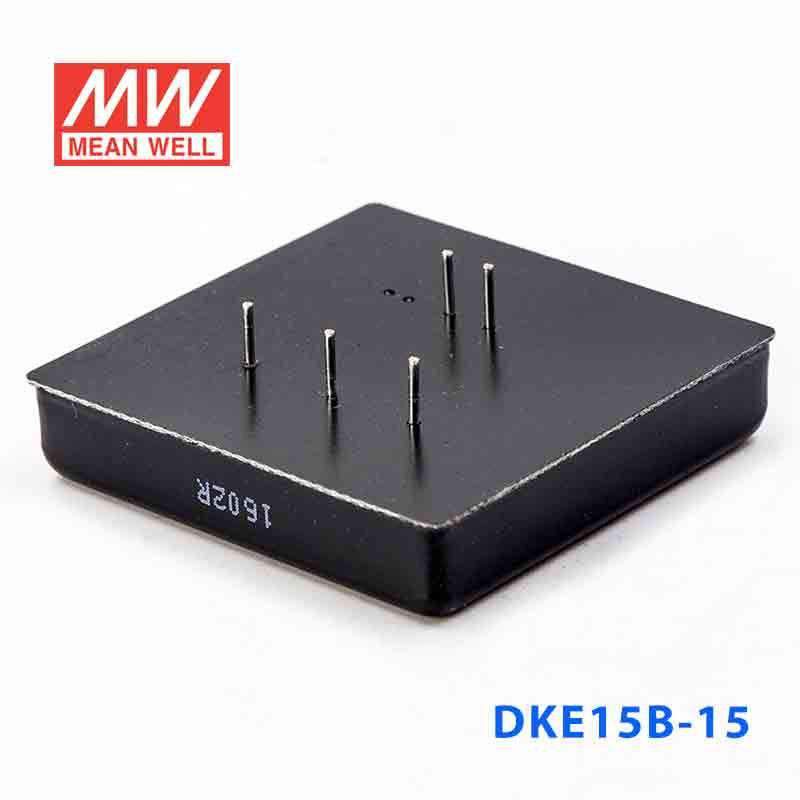

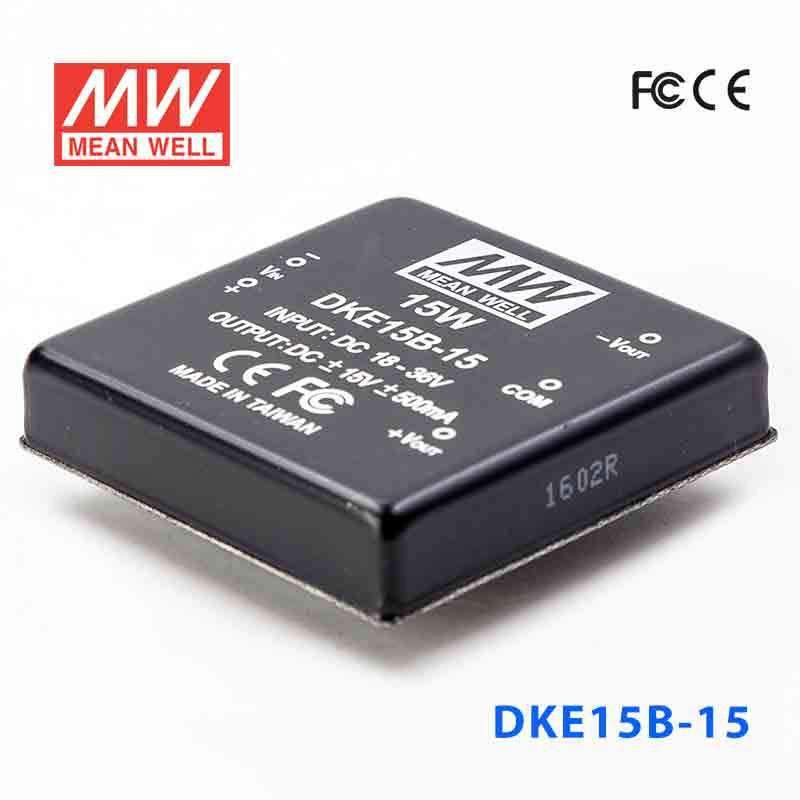

Mean Well DKE15B-15 DC-DC Converter - 15W - 18~36V in ±15V out
The DKE15B is a 15W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current0.5 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15B-15 for analog control circuits in industrial equipment?
Yes, this model is suited to low-power industrial electronics that need a ±15V constant-voltage output. Its 15W rating and 18-36VAC input range make it appropriate for analog control, signal-conditioning, and measurement sections operating from that input window.
Is the DKE15B-15 a fit for embedded test or instrumentation boards that require dual rails?
It can fit embedded or instrumentation boards that specifically require a ±15V output and stay within the 15W power limit. The converter is designed for an 18-36VAC input range, so it should be matched to systems in that input band.
Can this converter be used inside factory automation panels for low-power interface electronics?
Yes, it is sized for compact internal use in automation equipment where a ±15V constant-voltage output is needed. The 50.8 x 50.8 x 11.0 mm form factor and 0.065 kg weight help it fit low-profile control assemblies using 18-36VAC input.
Is the DKE15B-15 suitable for outdoor or harsh-environment use?
The published specs show an operating temperature range of -25°C to +71°C, which supports a fairly wide indoor operating range. However, no IP rating is listed, so the specs do not establish protection against water or dust exposure for outdoor use.
How does the DKE15B-15 compare with the other DKE15B models?
Within the DKE15B family, all models are 15W units with 18-36VAC input. The DKE15B-05 is 5V at 1.5A, the DKE15B-12 is 12V at 625A, the DKE15B-15 is ±15V at 500A, and the DKE15B-24 is ±24V at 313A.
