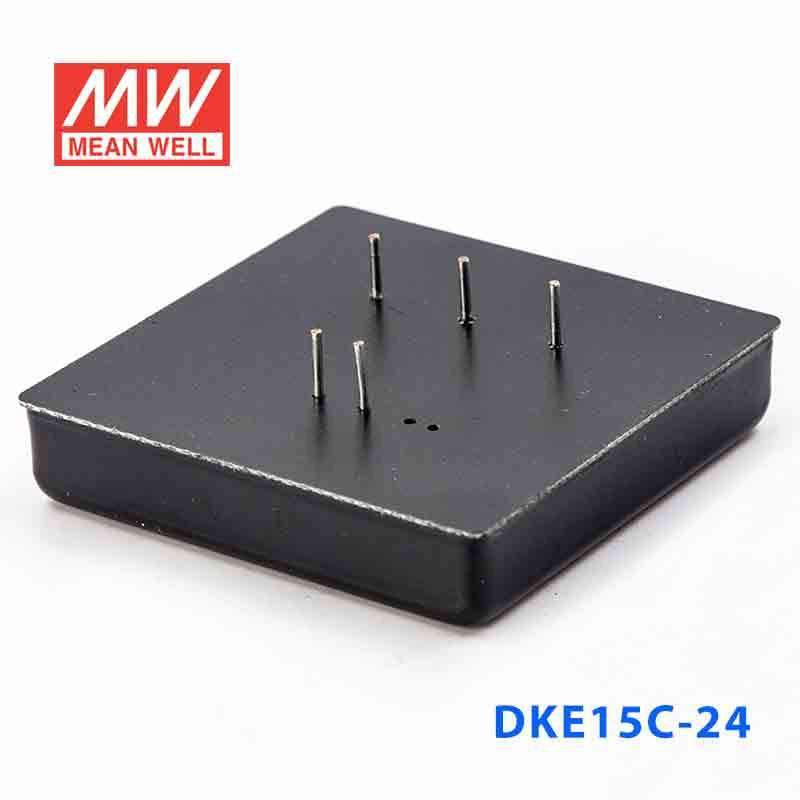

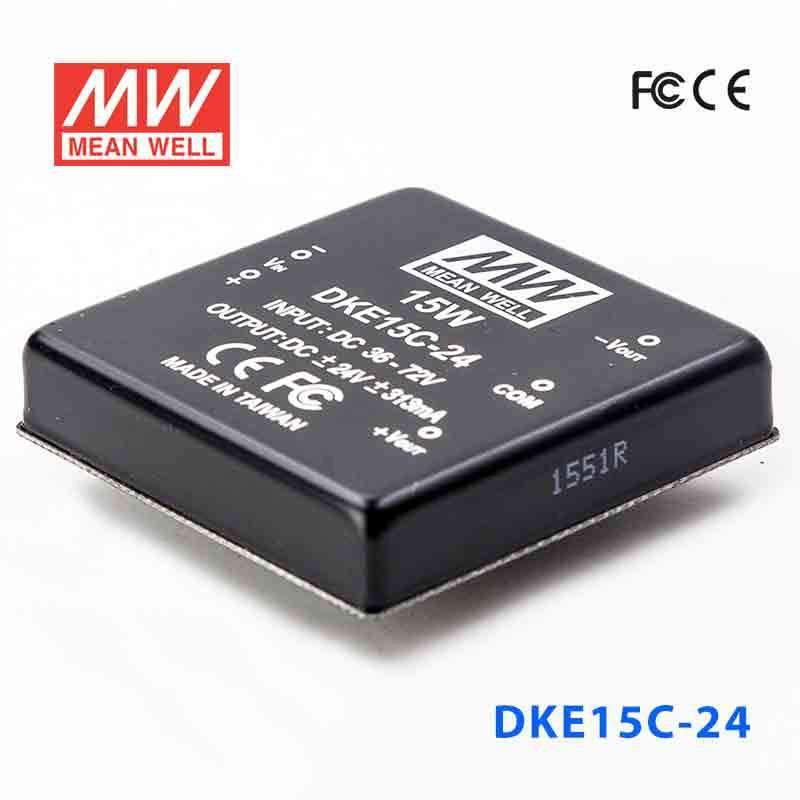

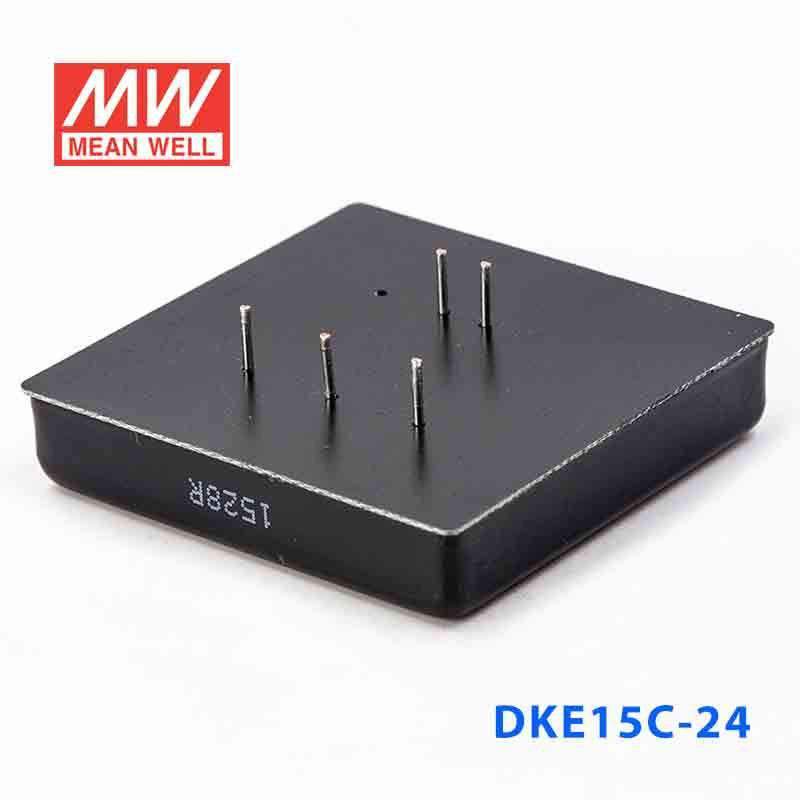

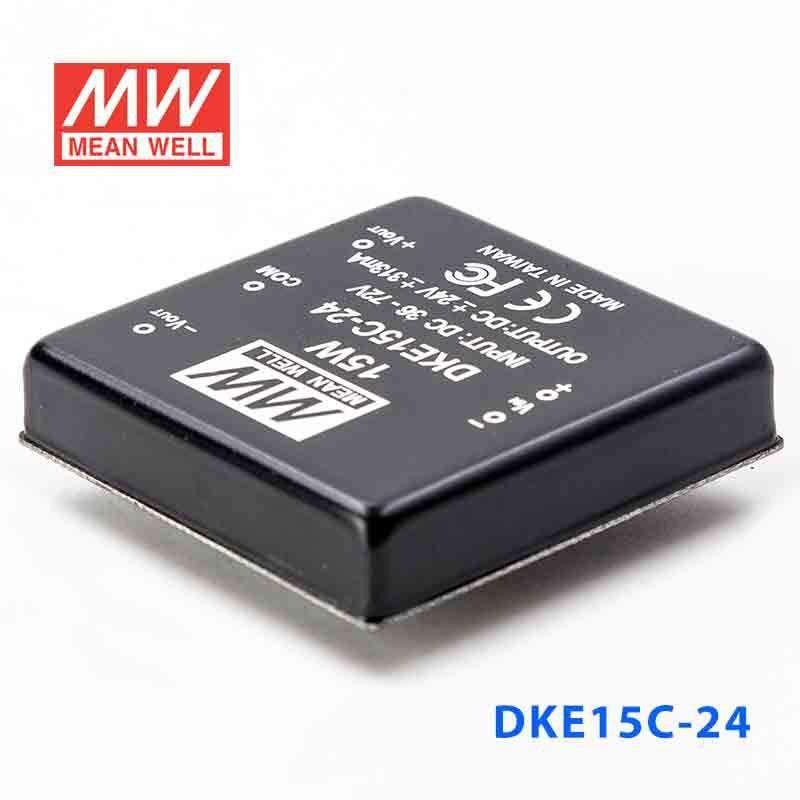

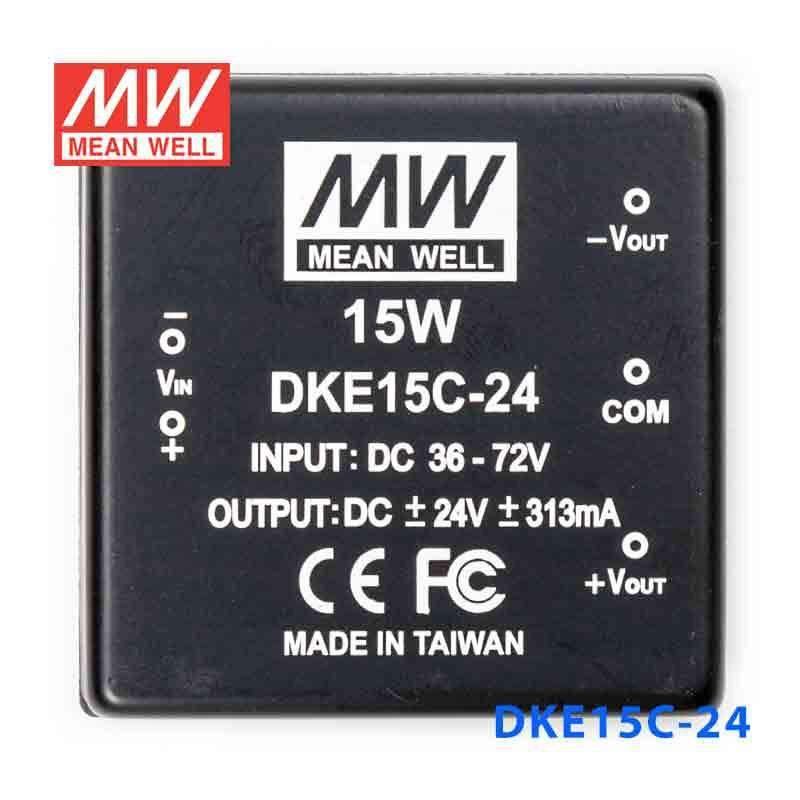

Mean Well DKE15C-24 DC-DC Converter - 15W - 36~72V in ±24V out
The DKE15C is a 15W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.31 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15C-24 in a 36-72V industrial control system that needs 24V output?
Yes, this converter is built for a 36-72V input range and provides 24V constant-voltage output. It is a fit for low-power industrial control loads where the total demand stays within 15W.
Is the DKE15C-24 suitable for powering 24V automation modules from a higher-voltage bus?
It can be used where the source falls within 36-72V and the downstream device needs a regulated 24V output. The key sizing limit is the 15W power rating, so it is intended for lighter-duty automation electronics rather than larger 24V loads.
Can this converter be used in embedded or industrial electronics that standardize on 24V rails?
Yes, the 24V constant-voltage output makes it appropriate for embedded or industrial electronics designed around a 24V rail. Its compact 50.8 × 50.8 × 11.0 mm size also suits space-constrained equipment where the load remains within 15W.
What is the difference between the DKE15C-24 and the other DKE15C models?
All listed DKE15C models are 15W converters, but they differ by output. The DKE15C-05 is 5V at 1.5A, the DKE15C-12 is 12V at 625A, the DKE15C-15 is 15V at 500A, and this DKE15C-24 is 24V at 313A.
Is the DKE15C-24 appropriate for outdoor or harsh-environment use?
The published operating temperature is -25°C to +71°C, so that is the supported temperature window. No IP rating is listed in the provided specs, so exposed outdoor or washdown use is not supported by the stated environmental data.
