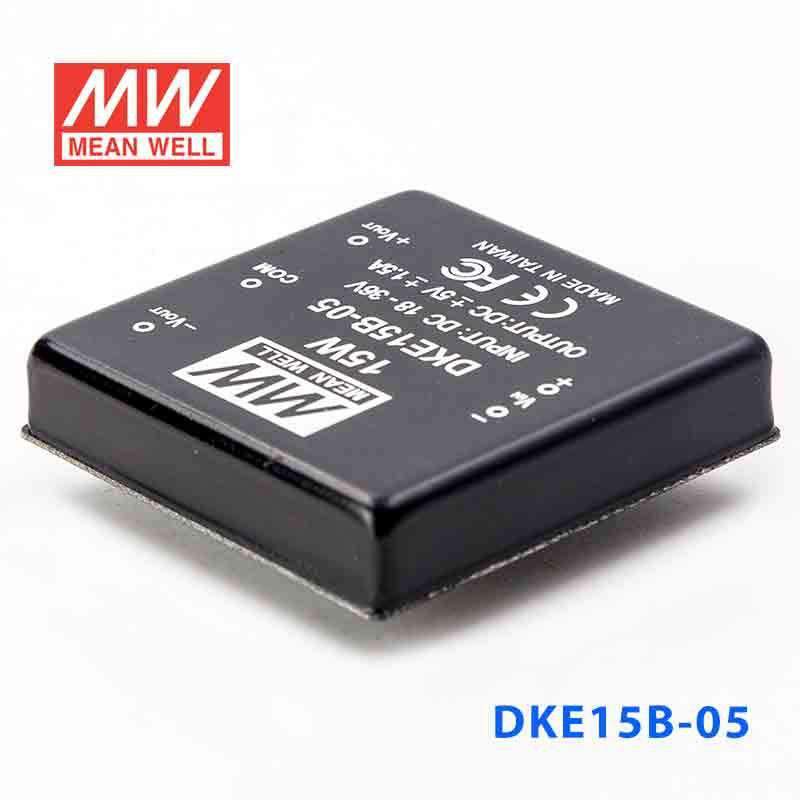

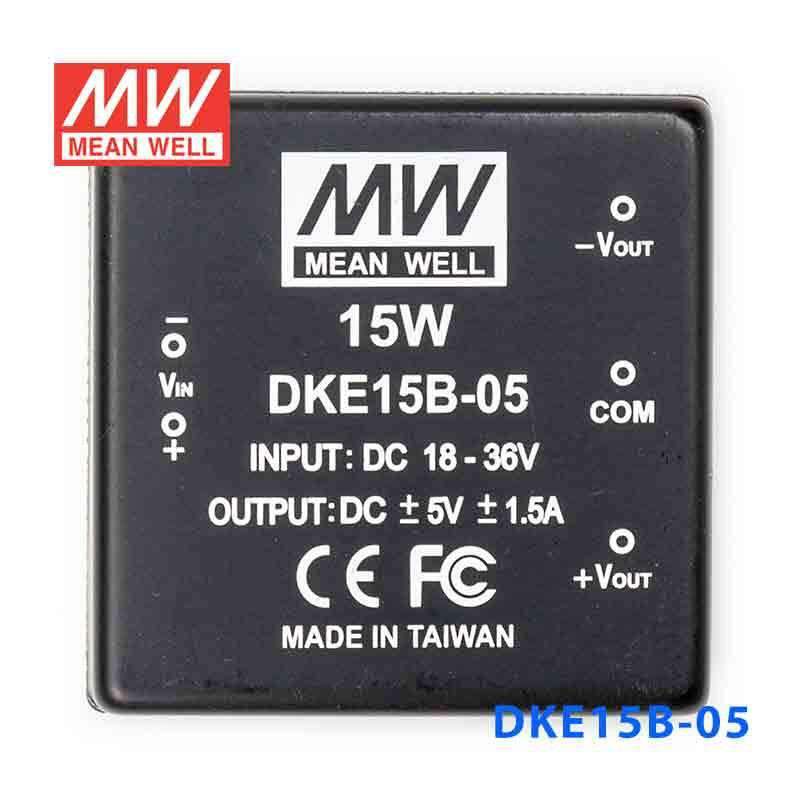

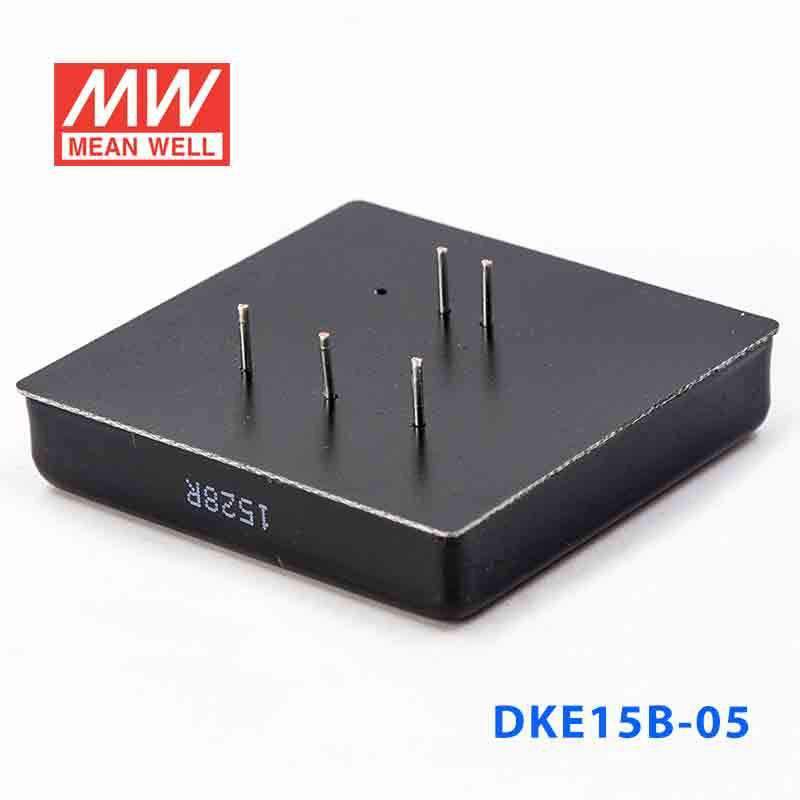

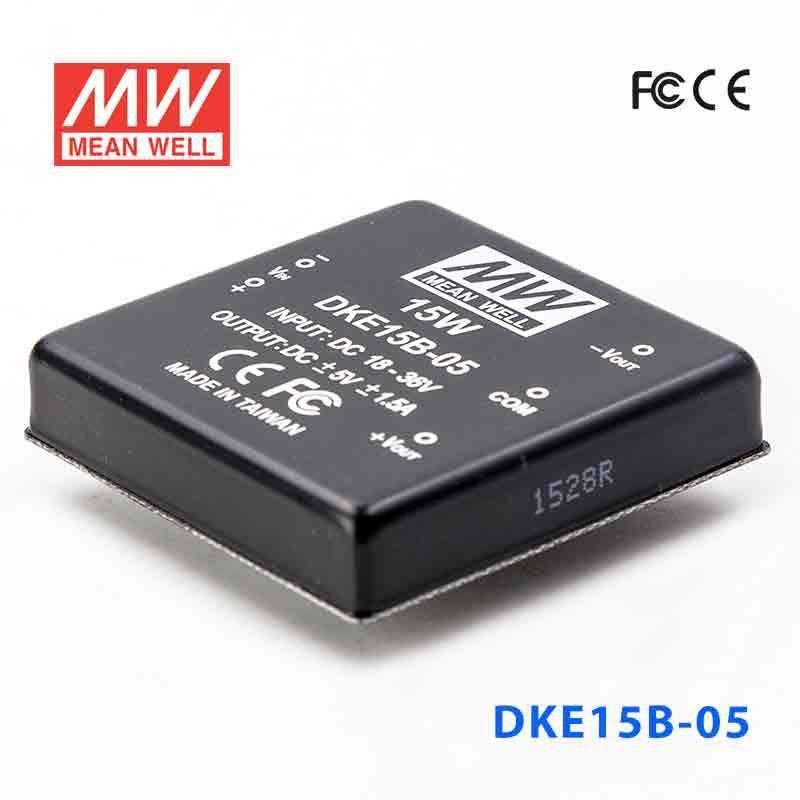

Mean Well DKE15B-05 DC-DC Converter - 15W - 18~36V in ±5V out
The DKE15B is a 15W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current1.5 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15B-05 in industrial electronics that need ±5V from an 18-36VAC source?
Yes, this converter is designed for a 18-36VAC input and a ±5V constant-voltage output. With a 15W rating, it fits low-power industrial electronics, logic support, and interface functions rather than larger loads.
Is the DKE15B-05 suitable for embedded control or processor boards that need split ±5V rails?
It can be used for embedded control or processor-support boards that require ±5V and stay within the 15W output limit. The 50.8 × 50.8 × 11.0 mm size also helps in compact assemblies.
Would this model work for low-power automation interfaces running on a higher input range?
Yes, the 18-36VAC input range makes it relevant where the source is above the 9-18VAC class and the load needs ±5V. It is best matched to low-power automation and interface electronics within the 15W rating.
Can the DKE15B-05 be used in IT or communications equipment with low-power ±5V sections?
It can be suitable for low-power IT or communications electronics that require a ±5V constant-voltage output and have an 18-36VAC input available. The key limits are the 15W output rating and the defined input range.
Is the DKE15B-05 appropriate for outdoor cabinets or exposed locations?
The specifications give an operating temperature range of -25°C to +71°C, but they do not provide an IP rating. That means temperature capability is stated, while exposed outdoor protection is not defined in the listed specs.
How does the DKE15B-05 compare with the other DKE15B versions?
The DKE15B family keeps the same 15W power rating and 18-36VAC input range across the series. The listed outputs are DKE15B-05 at 5V and 1.5A, DKE15B-12 at 12V and 625A, DKE15B-15 at 15V and 500A, and DKE15B-24 at 24V and 313A.
