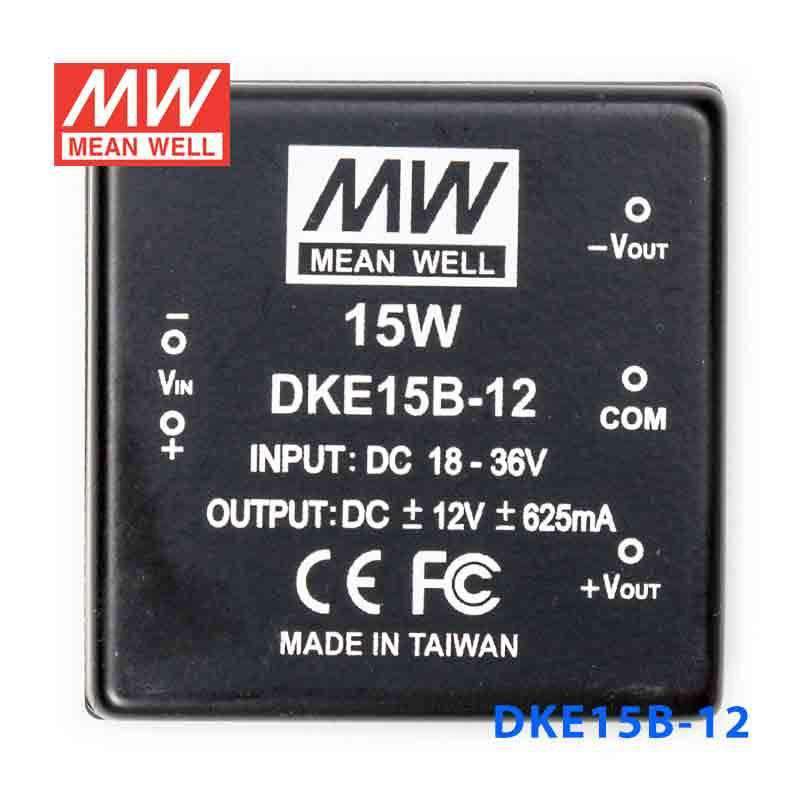

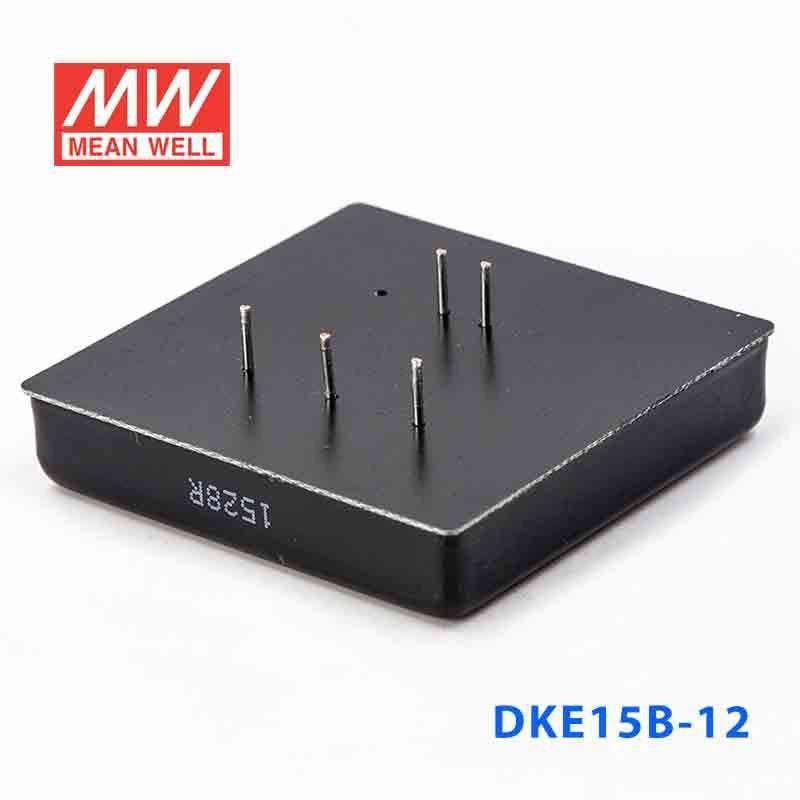

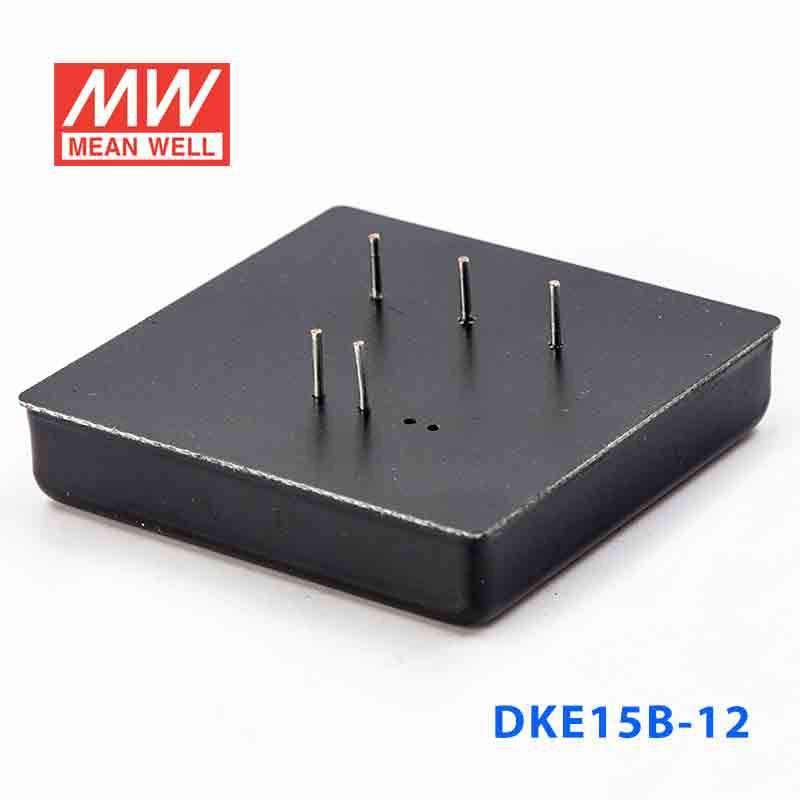

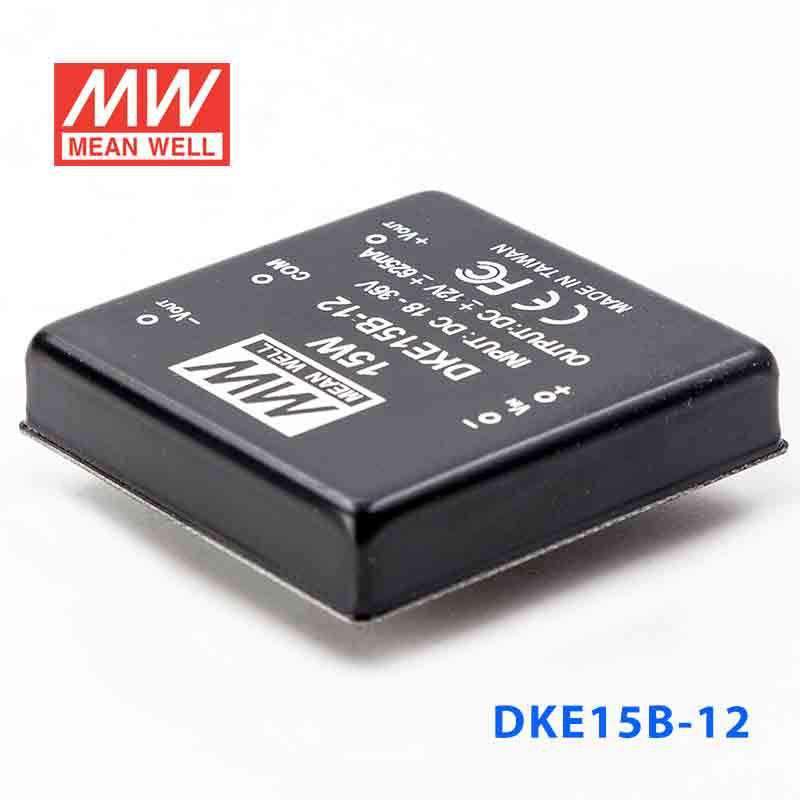

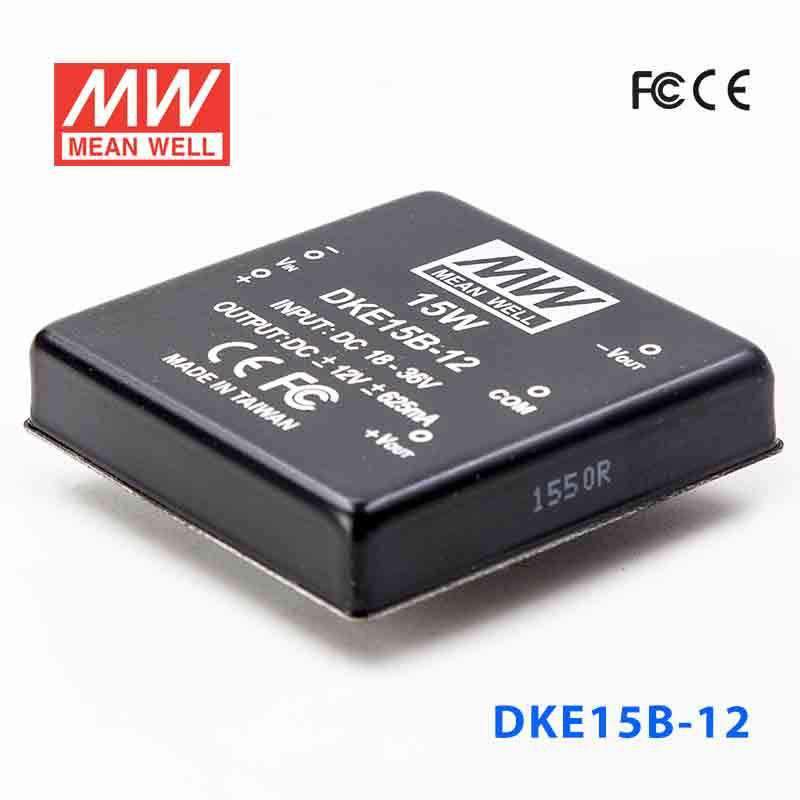

Mean Well DKE15B-12 DC-DC Converter - 15W - 18~36V in ±12V out
The DKE15B is a 15W Mean Well. power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current0.62 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15B-12 for industrial control electronics that need ±12V from an 18-36VAC input?
Yes, this model is intended for systems with a 18-36VAC input and a ±12V constant-voltage output. Its 15W rating suits low-power control, interface, and conditioning electronics rather than higher-power equipment.
Is the DKE15B-12 suitable for embedded analog boards powered from a wider input range?
It can be a fit for embedded analog or mixed-signal boards that need ±12V and operate within the 15W limit. The wider 18-36VAC input range is the main difference from lower-input variants.
Would the DKE15B-12 work in automation signal-processing modules?
Yes, it is suitable for low-power automation signal-processing or interface modules that require a ±12V constant-voltage output. The application also needs an available input within the stated 18-36VAC range.
Can this converter support low-power telecom or monitoring electronics with split ±12V rails?
It can be used for low-power telecom, monitoring, or control electronics that require ±12V and stay inside the 15W rating. The compact 50.8 × 50.8 × 11.0 mm package helps in space-constrained equipment.
Is the DKE15B-12 rated for indoor or outdoor use?
The operating temperature is specified as -25°C to +71°C, so temperature limits are clearly stated. No IP rating appears in the provided specifications, so exposed outdoor suitability is not established here.
What are the differences between the DKE15B-12 and its sibling models?
All DKE15B models shown here share a 15W rating and an 18-36VAC input range. The sibling outputs are DKE15B-05 at 5V and 1.5A, DKE15B-12 at 12V and 625A, DKE15B-15 at 15V and 500A, and DKE15B-24 at 24V and 313A.
