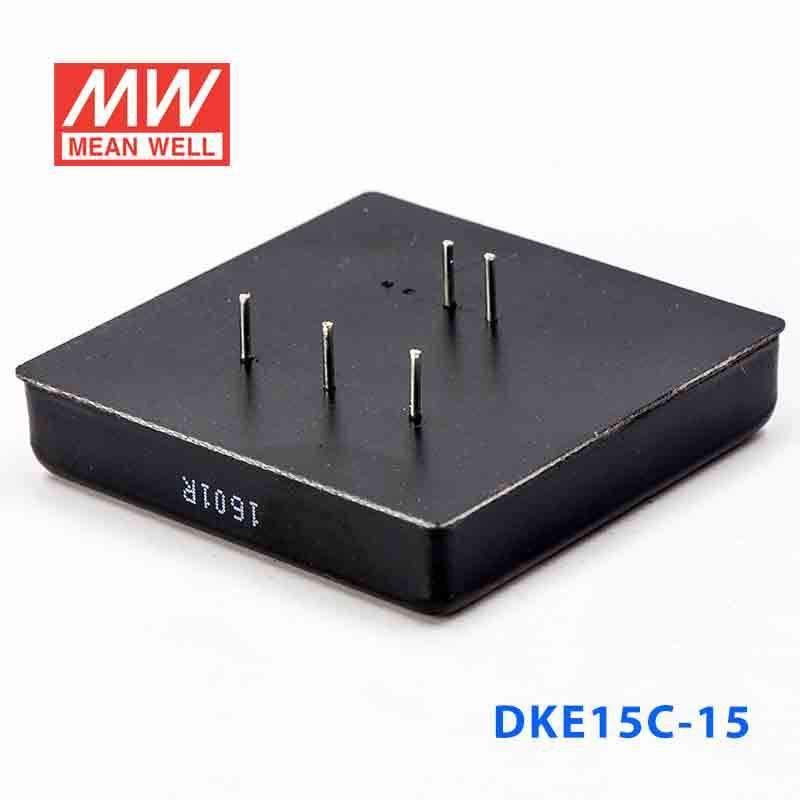

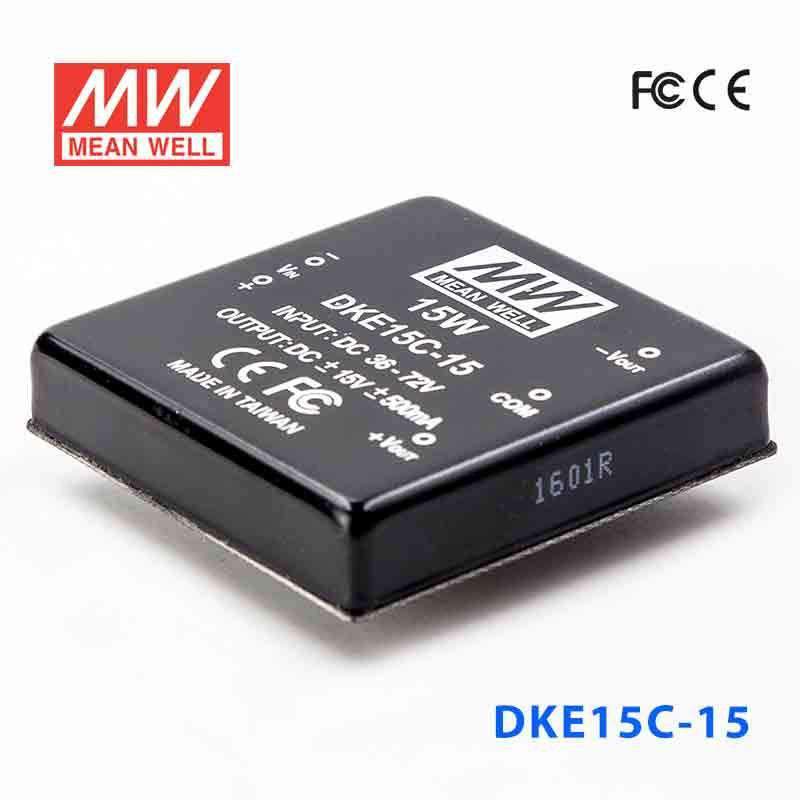

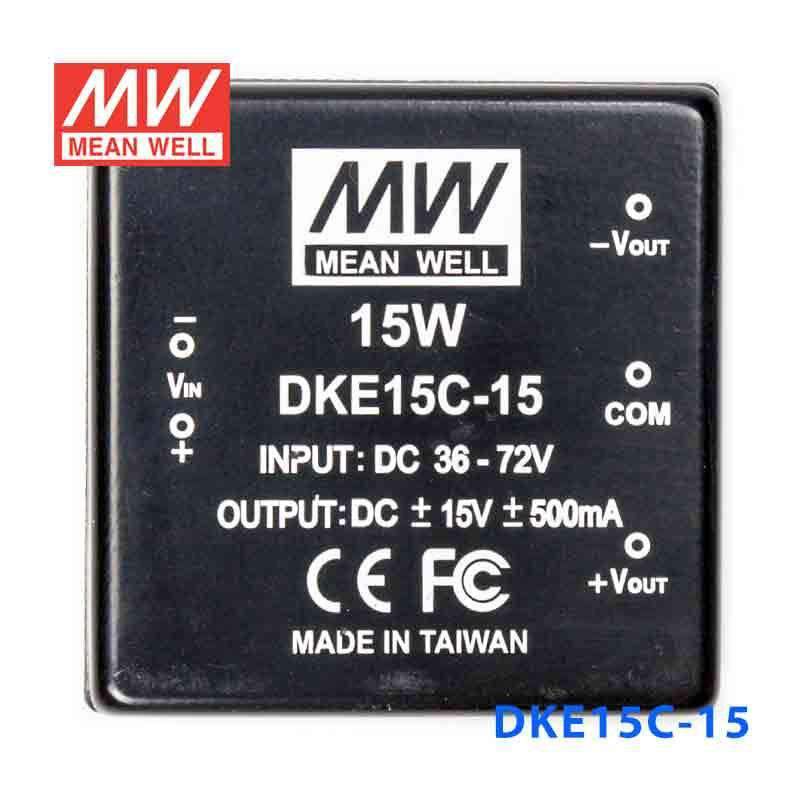

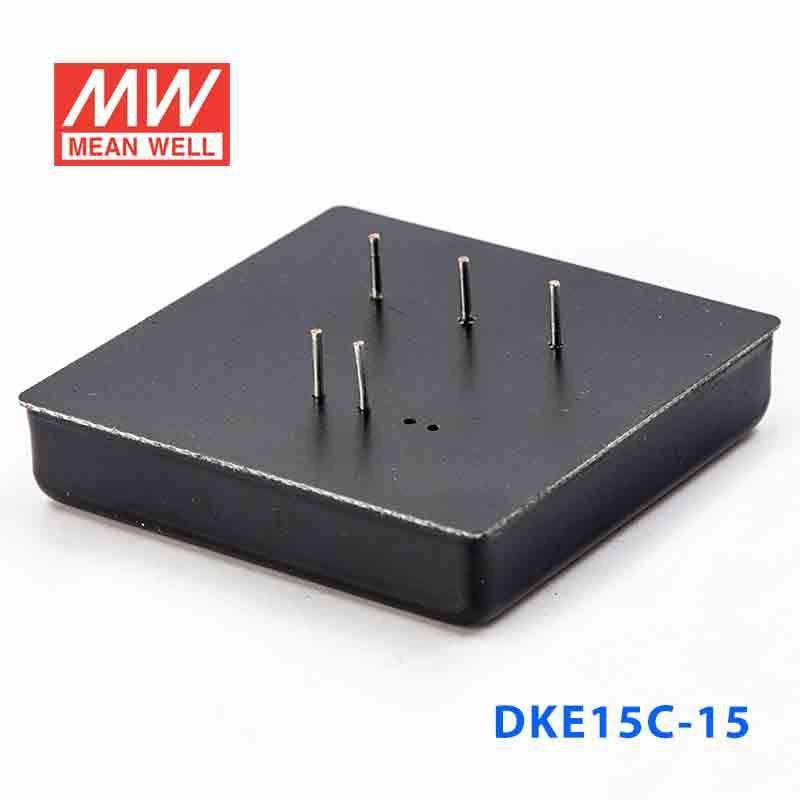

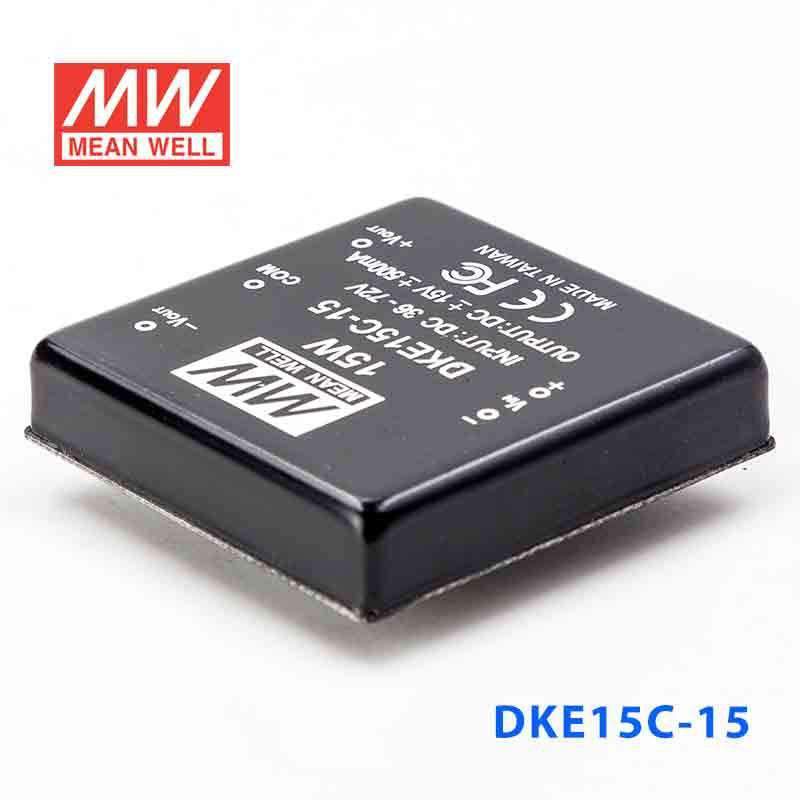

Mean Well DKE15C-15 DC-DC Converter - 15W - 36~72V in ±15V out 500mA
The DKE15C-15 is a 15W Mean Well DC-DC converter (input: 36~72VDC, operating temperature: -25~+71°C).
Key Features
- ✓ Input voltage: 36~72VDC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 500mA
- ✓ I/O isolation: 1000V
- ✓ Operating temperature: -25~+71°C
- ✓ Safety certifications: CE, EMC, FCC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesDKE Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current0.5 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.14 lb
::specification::
Frequently Asked Questions
Can I use the DKE15C-15 for industrial signal-conditioning or analog interface boards?
Yes, this model is suitable for low-power electronics that need a ±15V constant-voltage output. Its 15W rating and 36-72VAC input range make it appropriate for analog interface, signal-conditioning, and measurement sections in that input band.
Is the DKE15C-15 appropriate for embedded OEM equipment with a 36-72VAC source?
It can be used in embedded OEM equipment when the system provides 36-72VAC input and the load requires ±15V output. The unit is limited to 15W, so it is intended for smaller electronic circuits rather than larger power-hungry subsystems.
Can this converter be used in factory control assemblies with limited space?
Yes, the 50.8 x 50.8 x 11.0 mm dimensions and 0.065 kg weight make it suitable for compact control assemblies. It is a practical choice where a ±15V rail is needed inside a 36-72VAC industrial platform.
Does the DKE15C-15 support outdoor or exposed-environment operation?
The specs list an operating temperature range of -25°C to +71°C, which covers a broad temperature window. However, there is no IP rating in the provided data, so the specs do not confirm protection for direct outdoor exposure.
How does the DKE15C-15 differ from the other DKE15C converters?
All DKE15C models use 36-72VAC input and are rated at 15W, with output selection separating the versions. The DKE15C-05 is 5V at 1.5A, the DKE15C-12 is 12V at 625A, the DKE15C-15 is ±15V at 500A, and the DKE15C-24 is ±24V at 313A.
