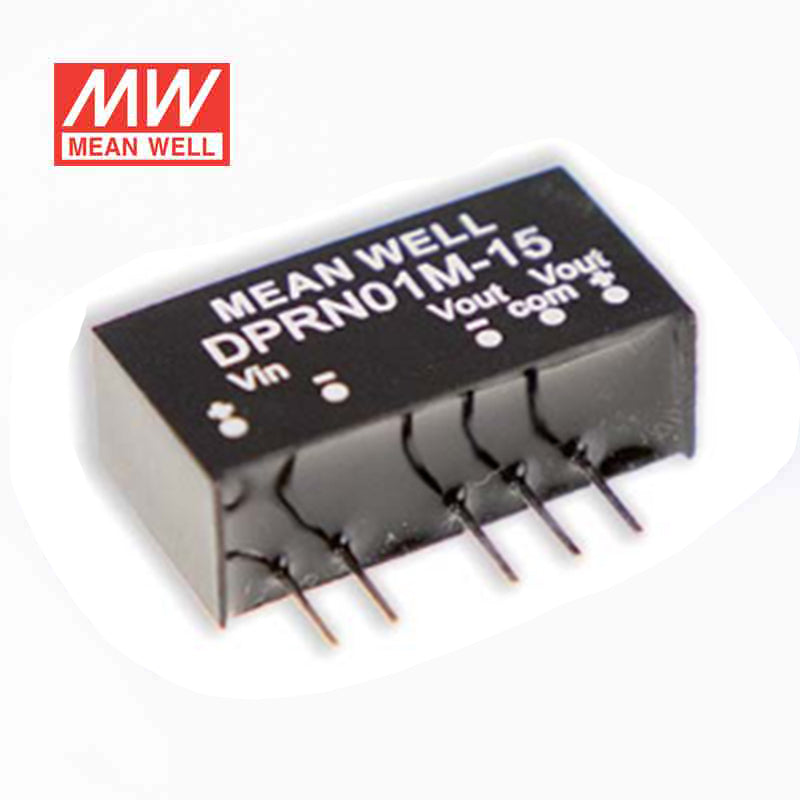

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well DPRN01O-12 DC-DC Converter - 1W - 45.6~52.8V in ±12V out
The DPRN01O is a 1W Mean Well power converter (input range: 4.75~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.75~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDPRN Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.04 Ampere
-
Input Voltage45.6V~52.8V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the DPRN01O-12 in a 48V-class industrial system that needs a ±12V rail?
Yes, this model is intended for low-power constant-voltage conversion when the input is in the 45-52VAC range. It provides ±12V output at 1W with 0.04A output current, which makes it suitable for light-duty control, interface, or analog sections.
Is the DPRN01O-12 appropriate for compact embedded or automation boards on 48V equipment?
It can be used where a small embedded or automation board needs a ±12V rail from a 45-52VAC source. The 19.6 × 10.14 × 7.1 mm size supports compact layouts, while the 1W rating keeps it in the low-power category.
Can this converter power low-power instrumentation or interface circuitry in telecom or control hardware?
Yes, if the target circuitry needs a constant-voltage ±12V output and stays within 1W and 0.04A output current. It is a better match for small instrumentation or interface stages than for heavier subsystem loads.
Is the DPRN01O-12 suitable for outdoor enclosures or exposed installations?
No IP rating is listed in the provided specifications, so it should be treated as a protected internal component rather than an exposed outdoor product. The operating temperature range is -40°C to +90°C.
How does the DPRN01O-12 compare with the DPRN01O-15?
Both are 1W models in the DPRN01O series. The DPRN01O-12 provides 12V output at 0.04A, while the DPRN01O-15 provides 15V output at 0.03A.
