Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

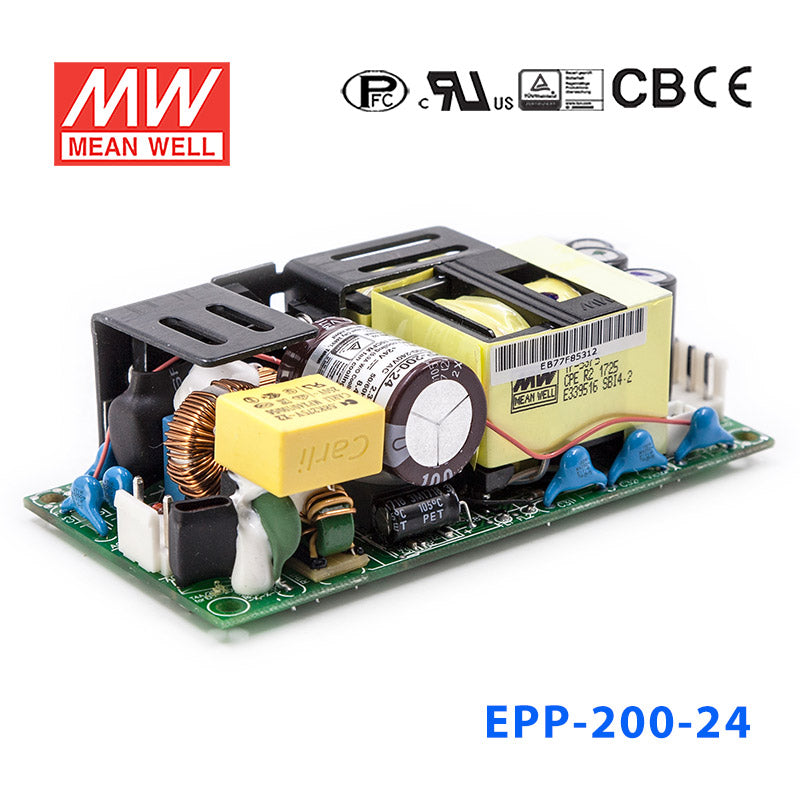

Mean Well EPP-200-24 Power Supply 141W 24V
Built-in 12V /0.5A FAN supply
<0.75mA / 240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)No load power consumption<0.5WHigh efficiency up to 94%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓Cooling by free air convection for 140W and 200W with 10CFM forced air
- ✓✓Built-in 12V /0.5A FAN supply
- ✓✓LED indicator for power on
- ✓✓Operating altitude up to 5000 meters
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating141.6 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the EPP-200-24 for a 24V industrial control system?
Yes, if the control system needs constant 24V DC and the total load is no more than 5.9A or 141.6W. This is a constant voltage 24V power supply.
Is the EPP-200-24 suitable for 24V automation components in a compact machine?
It can be a fit for 24V automation components when the combined demand stays within 141.6W. The 101.6 x 50.8 x 29.0 mm package is relatively compact for equipment with limited internal space.
Can this model power 24V embedded or industrial I/O hardware?
Yes, for embedded or I/O hardware designed for a fixed 24V DC input and drawing up to 5.9A total. Buyers should confirm their load fits both the 24V output and the 141.6W maximum power.
Will the EPP-200-24 handle cold or hot indoor operating conditions?
The specified operating range is -30°C to +70°C, which supports use in demanding temperature conditions. The provided specs do not include an IP rating, so they do not confirm outdoor exposure resistance.
How does the EPP-200-24 compare to other 24V members of the series?
The listed 24V models are EPP-100-24 at 76.8W and 3.2A, EPP-120S-24 at 120W and 5A, EPP-150-24 at 100.8W and 4.2A, EPP-200-24 at 141.6W and 5.9A, EPP-300-24 at 199.9W and 8.33A, EPP-400-24 at 252W and 10.5A, and EPP-500-24 at 321W and 13.4A. They differ by available output current and total wattage while sharing a 24V nominal output.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-200 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-200-48 Power Supply 144W 48V | 144W | 48V | 3A | Indoor | $46.97 | View |
| Mean Well EPP-200-27 Power Supply 143W 27V | 143.1W | 27V | 5.3A | Indoor | $46.97 | View |
| Mean Well EPP-200-15 Power Supply 141W 15V | 141W | 15V | 9.4A | Indoor | $47.04 | View |
| Mean Well EPP-200-12 Power Supply 140W 12V | 140.4W | 12V | 11.7A | Indoor | $46.97 | View |
