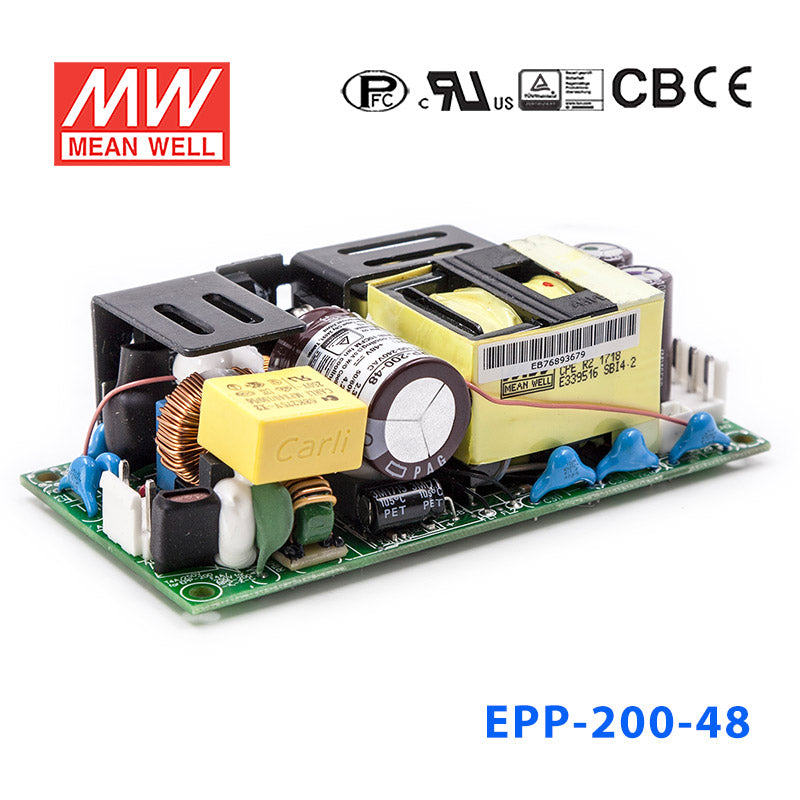

Mean Well EPP-200-48 Power Supply 144W 48V

Q: Can I use the EPP-200-48 for a 48V industrial control panel or automation subsystem?

Yes, this model is a constant-voltage 48V supply rated for 144W and 3A, which fits 48Vdc control or automation loads that stay within that output range. Its wide 80-264VAC input also supports deployment in facilities with varied AC mains.

Q: Is the EPP-200-48 suitable for powering a 48V embedded computer or industrial networking device?

It can be, provided the equipment requires a regulated 48V constant-voltage input and draws no more than 3A or 144W. The compact 101.6 x 50.8 x 29.0 mm size can also matter where board-level space is limited.

Q: Can this power supply run a 48V telecom or access-control load?

It is appropriate for 48Vdc loads that need up to 144W total output and do not exceed 3A. Buyers should match the device's required DC voltage to the unit's fixed 48V constant-voltage output.

Q: Is the EPP-200-48 rated for outdoor or harsh-environment use?

The provided specs show an operating temperature range of -30 degrees C to +70 degrees C, so temperature tolerance is broad. However, no IP rating is listed, so the provided data does not establish suitability for exposed outdoor, washdown, or wet locations.

Q: How does the EPP-200-48 compare with other EPP series options?

Within the listed family, 48V siblings are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, this EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The broader series also spans EPP-100, EPP-120S, EPP-150, EPP-200, EPP-300, EPP-400, and EPP-500 models across 12V, 15V, 18V, 24V, 27V, 36V, 48V, and 54V outputs, with power ratings from 75W up to 321.6W depending on model.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-200-48

$46.97 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)
No load power consumption<0.5W
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 140W and 200W with 10CFM forced air

Built-in 12V /0.5A FAN supply

LED indicator for power on

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	80~264VAC; 113~370VDC
AC inrush current	COLD START 30A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	110 ~ 140% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 12ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 14.7kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

144 Watt
Output Voltage

48 Volt
Rated Current

3 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.42 lb
