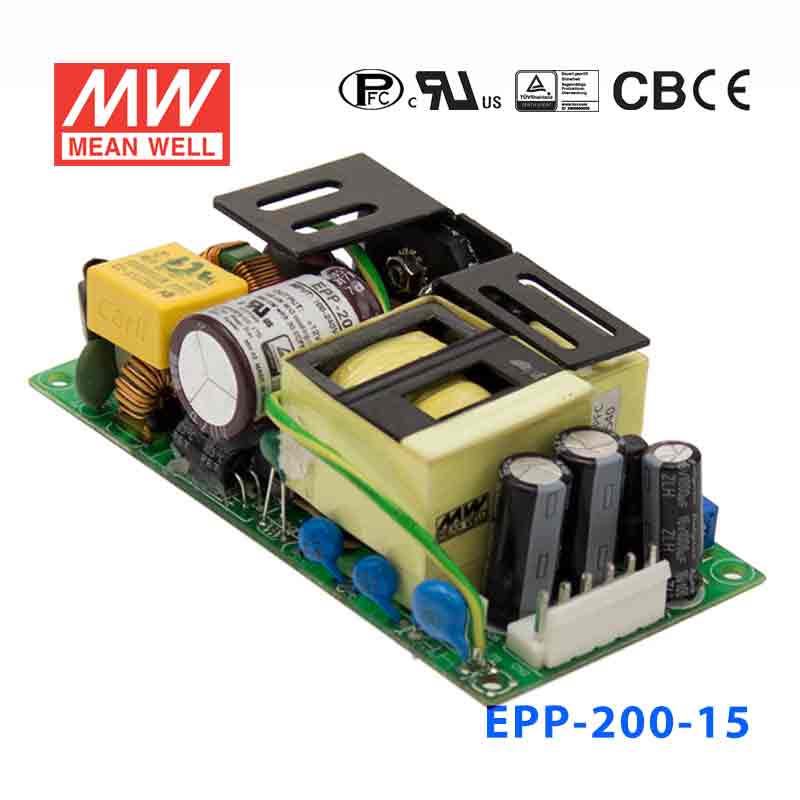

Mean Well EPP-200-15 Power Supply 141W 15V

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption
$47.04 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

4"x2" compact size
Universal AC input / Full range
Built-in active PFC function
EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)
No load power consumption<0.5W
High efficiency up to 94%
Protections: Short circuit/Overload/Over voltage/Over temperature
Cooling by free air convection for 140W and 200W with 10CFM forced air

Built-in 12V /0.5A FAN supply

LED indicator for power on
Operating altitude up to 5000 meters
3 years warranty

General Specification

AC input voltage range 80~264VAC; 113~370VDC
AC inrush current COLD START 30A/115VAC
Leakage current

<0.75mA / 240VAC

Overload protection 110 ~ 140% rated output power
Over-voltage protection 110%~130% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 12ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 101.6x50.8x29
Packing 72pcs / 14.7kg

Specifications

  • Brand
    Mean Well
  • Series
    EPP Series
  • Power Rating
    141 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    9.4 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    4 in
  • Width
    2 in
  • Height
    1.14 in
  • Weight
    0.42 lb
