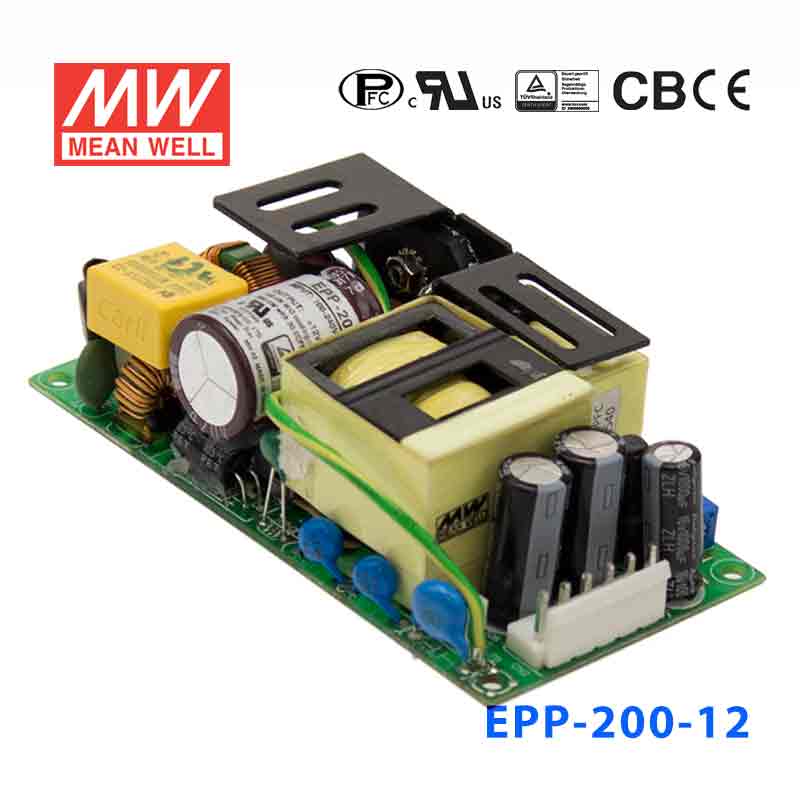

Mean Well EPP-200-12 Power Supply 140W 12V

Q: Can I use the EPP-200-12 for a 12V industrial control panel?

Yes, if the control panel requires constant 12V DC and the total load stays within 11.7A and 140.4W. This model is designed as a constant voltage 12V supply.

Q: Is the EPP-200-12 a good fit for 12V embedded systems with multiple DC loads?

It can be used where several 12V embedded loads share one supply, as long as the combined draw does not exceed 11.7A or 140.4W. The compact 101.6 x 50.8 x 29.0 mm form factor also helps in dense equipment layouts.

Q: Can this power 12V automation accessories in a machine or enclosure?

Yes, for 12V automation accessories that need a regulated constant voltage source and fit within the 140.4W and 11.7A limits. Buyers should size the connected load against both the voltage and current rating.

Q: Does the EPP-200-12 work for indoor equipment in hot or cold environments?

The specified operating temperature range is -30°C to +70°C, so it is rated for a broad temperature window. The provided specs do not list an IP rating, so they do not confirm outdoor exposure or water-ingress protection.

Q: How does the EPP-200-12 compare with other 12V EPP models?

The listed 12V siblings are EPP-100-12 at 75.6W and 6.3A, EPP-120S-12 at 114W and 9.5A, EPP-150-12 at 100.8W and 8.4A, EPP-200-12 at 140.4W and 11.7A, EPP-300-12 at 200W and 16.67A, EPP-400-12 at 249.6W and 20.8A, and EPP-500-12 at 320.4W and 26.7A. The difference is primarily how much current and power each 12V version can deliver.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-200-12

$46.97 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)
No load power consumption<0.5W
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 140W and 200W with 10CFM forced air

Built-in 12V /0.5A FAN supply

LED indicator for power on

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	80~264VAC; 113~370VDC
AC inrush current	COLD START 30A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	110 ~ 140% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 12ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 14.7kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

140.4 Watt
Output Voltage

12 Volt
Rated Current

11.7 Ampere
Input Voltage

80V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

4 in
Width

2 in
Height

1.14 in
Weight

0.42 lb
