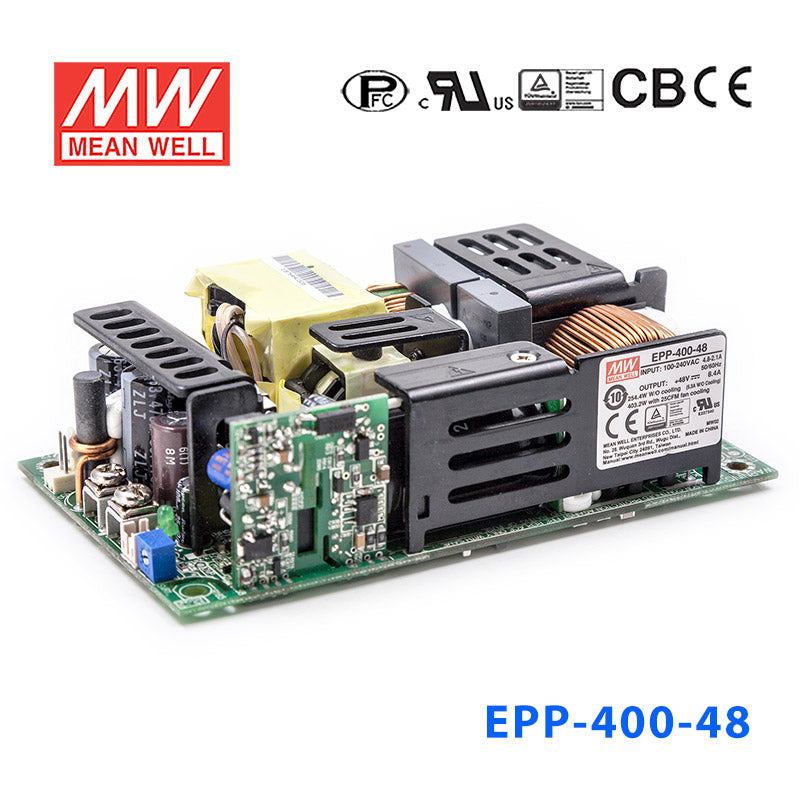

Mean Well EPP-400-48 Power Supply 254W 48V 5.3A
The EPP-400 is a 254.4W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 48V
- ✓ Rated output current: 5.3A
- ✓ Operating temperature: -30~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CCC, CE, EAC, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating254.4 Watt
-
Output Voltage48 Volt
-
Rated Current5.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.86 lb
::specification::
Frequently Asked Questions
Can I use the EPP-400-48 for a 48V industrial network or control system?
Yes, if the load requires constant 48V and stays within 5.3A. This unit is rated for 254.4W, making it suitable for higher-power 48V control and communications equipment.
Is the EPP-400-48 suitable for a 48V embedded or telecom-style DC bus?
It is a fit for systems built around a constant 48V bus when total demand does not exceed 5.3A. The available output power is 254.4W.
Can this model power a larger 48V automation assembly instead of a smaller EPP unit?
Yes, this version provides 48V at 5.3A and 254.4W, which is more output capacity than the lower-power 48V models in the same family. That makes it better suited to larger 48V loads than the 76.8W, 120W, 100.8W, 144W, or 200.2W 48V variants.
How does the EPP-400-48 compare with other EPP family choices?
The 48V versions listed are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The same family also includes 12V, 15V, 18V, 24V, 27V, 36V, and 54V outputs with power ratings ranging from 75W to 321.3W depending on the model.
Is the EPP-400-48 rated for outdoor use?
Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is listed in the provided product data, so the specs do not describe it as an outdoor-rated power supply.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-400 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-400-24 Power Supply 252W 24V 10.5A | 252W | 24V | 10.5A | Indoor | $78.26 | View |
| Mean Well EPP-400-36 Power Supply 252W 36V 7A | 252W | 36V | 7A | Indoor | $78.26 | View |
| Mean Well EPP-400-27 Power Supply 251W 27V 9.3A | 251.1W | 27V | 9.3A | Indoor | $78.26 | View |
| Mean Well EPP-400-18 Power Supply 250W 18V 13.9A | 250.5W | 18V | 13.9A | Indoor | $78.26 | View |
| Mean Well EPP-400-15 Power Supply 250W 15V 16.7A | 250.5W | 15V | 16.7A | Indoor | $78.26 | View |
| Mean Well EPP-400-12 Power Supply 250W 12V 20.8A | 249.6W | 12V | 20.8A | Indoor | $78.26 | View |
