Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

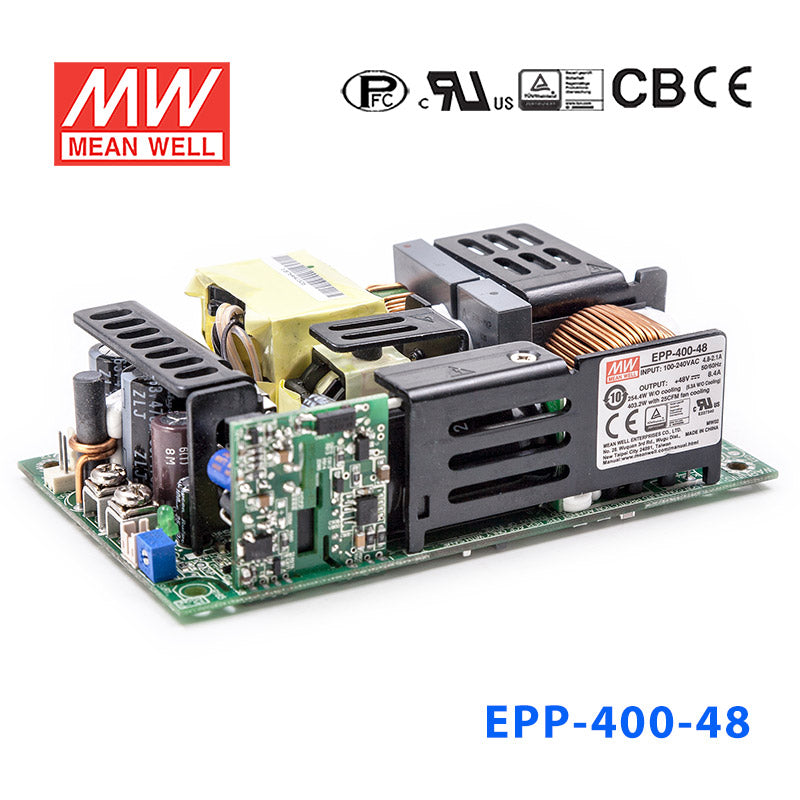

Mean Well EPP-400-48 Power Supply 254W 48V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function EMI Class B for Class I & Class A for Class II configuration |
| High efficiency up to 93% |
| Withstand 300VAC surge input for 6 seconds No load power consumption<0.5W by PS ON control 5"x3" miniature size High efficiency up to 94% |
| Protections: Short circuit/Overload/Over voltage/Over temperature |
| Cooling by free air convection for 250W and 400W with 25 CFM forced air Built-in 12V/0.5A FAN With power good and fail signal output Built-in remote sense function |
No load power consumption under 0.5W by PS-ON control |
| LED indicator for power on Output 18V available |
| Operating altitude up to 5000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC; 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC |
| Leakage current | <0.75mA / 240VAC |
| Overload protection | 105 ~ 135% rated output power |
| Over-voltage protection | 108%~130% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 16ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved |
| EMC standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH |
| Dimension (LxWxH) | 127x76.2x35 |
| Packing | 36pcs / 15kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating254.4 Watt
-
Output Voltage48 Volt
-
Rated Current5.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPP-400-48 for a 48V industrial network or control system?
Yes, if the load requires constant 48V and stays within 5.3A. This unit is rated for 254.4W, making it suitable for higher-power 48V control and communications equipment.
Is the EPP-400-48 suitable for a 48V embedded or telecom-style DC bus?
It is a fit for systems built around a constant 48V bus when total demand does not exceed 5.3A. The available output power is 254.4W.
Can this model power a larger 48V automation assembly instead of a smaller EPP unit?
Yes, this version provides 48V at 5.3A and 254.4W, which is more output capacity than the lower-power 48V models in the same family. That makes it better suited to larger 48V loads than the 76.8W, 120W, 100.8W, 144W, or 200.2W 48V variants.
How does the EPP-400-48 compare with other EPP family choices?
The 48V versions listed are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The same family also includes 12V, 15V, 18V, 24V, 27V, 36V, and 54V outputs with power ratings ranging from 75W to 321.3W depending on the model.
Is the EPP-400-48 rated for outdoor use?
Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is listed in the provided product data, so the specs do not describe it as an outdoor-rated power supply.
Other EPP-400 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-400-36 Power Supply 252W 36V | 252W | 36V | 7A | Indoor | $78.26 | View |
| Mean Well EPP-400-27 Power Supply 251W 27V | 251.1W | 27V | 9.3A | Indoor | $74.48 | View |
| Mean Well EPP-400-24 Power Supply 252W 24V | 252W | 24V | 10.5A | Indoor | $75.35 | View |
| Mean Well EPP-400-18 Power Supply 250W 18V | 250.5W | 18V | 13.9A | Indoor | $78.26 | View |
| Mean Well EPP-400-15 Power Supply 250W 15V | 250.5W | 15V | 16.7A | Indoor | $77.30 | View |
| Mean Well EPP-400-12 Power Supply 250W 12V | 249.6W | 12V | 20.8A | Indoor | $74.20 | View |
