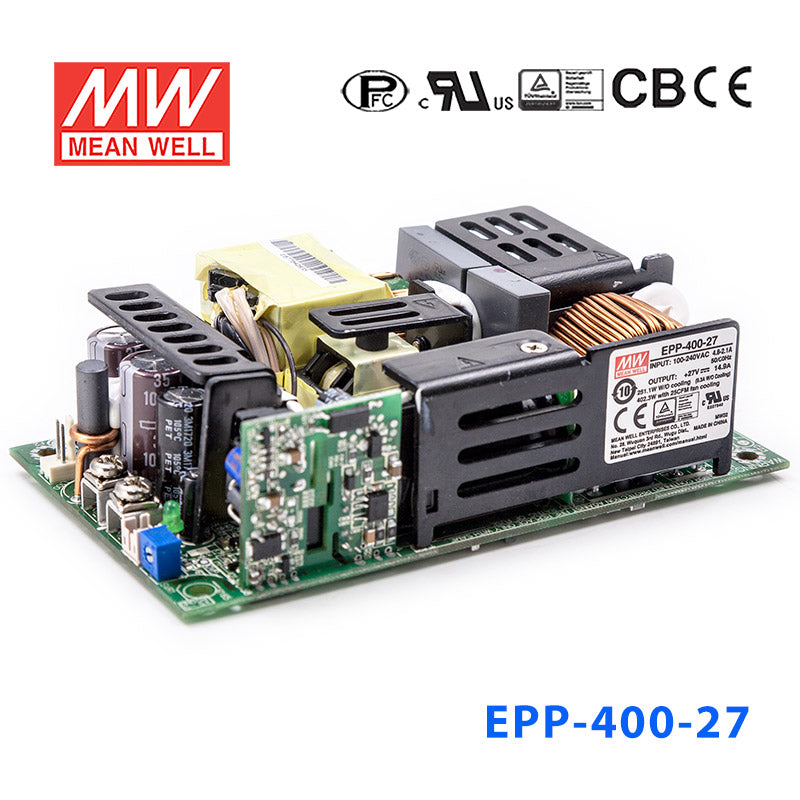

Mean Well EPP-400-27 Power Supply 251W 27V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPP-400-27 Power Supply 251W 27V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function EMI Class B for Class I & Class A for Class II configuration |
| High efficiency up to 93% |
| Withstand 300VAC surge input for 6 seconds No load power consumption<0.5W by PS ON control 5"x3" miniature size High efficiency up to 94% |
| Protections: Short circuit/Overload/Over voltage/Over temperature |
| Cooling by free air convection for 250W and 400W with 25 CFM forced air Built-in 12V/0.5A FAN With power good and fail signal output Built-in remote sense function |
No load power consumption under 0.5W by PS-ON control |
| LED indicator for power on Output 18V available |
| Operating altitude up to 5000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC; 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC |
| Leakage current | <0.75mA / 240VAC |
| Overload protection | 105 ~ 135% rated output power |
| Over-voltage protection | 108%~130% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 16ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved |
| EMC standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH |
| Dimension (LxWxH) | 127x76.2x35 |
| Packing | 36pcs / 15kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating251.1 Watt
-
Output Voltage27 Volt
-
Rated Current9.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPP-400-27 for a 27V industrial controller or HMI load?
Yes, this model is a constant voltage 27V power supply rated for 9.3A and 251.1W. It fits 27V control or interface equipment when the total load stays within those output limits.
Is the EPP-400-27 suitable for a 27V embedded system with multiple powered boards?
It can be a fit for a 27V embedded platform that needs a regulated constant voltage source and draws no more than 9.3A. The available 251.1W gives more headroom than lower-power 27V models in the same family.
Can this 27V power supply be used in factory automation equipment with universal AC input?
It is designed for 80-264VAC input, so it suits automation equipment that may be used across different AC mains ranges. On the output side, it provides 27V constant voltage up to 9.3A and 251.1W.
How does the EPP-400-27 compare with other Mean Well EPP series models?
Within the EPP family, 27V options are EPP-100-27 at 75.6W and 2.8A, EPP-120S-27 at 119.9W and 4.44A, EPP-150-27 at 100.17W and 3.71A, EPP-200-27 at 143.1W and 5.3A, EPP-300-27 at 199.8W and 7.4A, EPP-400-27 at 251.1W and 9.3A, and EPP-500-27 at 321.3W and 11.9A. Other family outputs include 12V models from 75.6W to 320.4W, 15V models from 75W to 319.5W, 18V models at 250.5W and 320.4W, 24V models from 76.8W to 321W, 36V models at 252W and 320.4W, 48V models from 76.8W to 321.6W, and a 54V model at 320.2W.
Is the EPP-400-27 appropriate for outdoor or harsh-temperature use?
The operating temperature range is -30°C to +70°C, so it covers a wide temperature span. No IP rating is listed in the provided specs, so the product data does not describe it as weatherproof or outdoor-rated.
