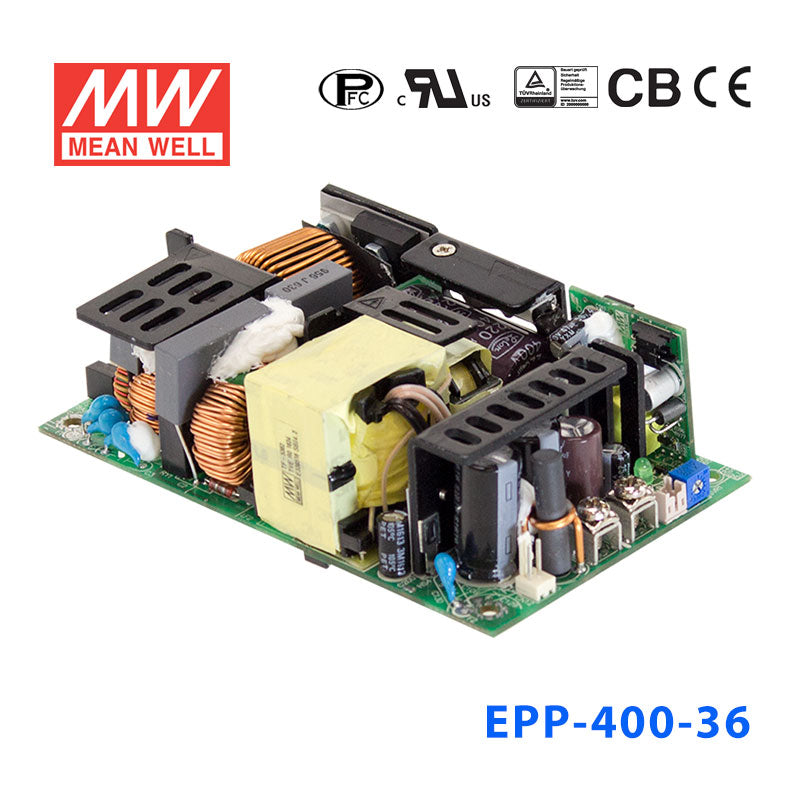

Mean Well EPP-400-36 Power Supply 252W 36V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function EMI Class B for Class I & Class A for Class II configuration |
| High efficiency up to 93% |
| Withstand 300VAC surge input for 6 seconds No load power consumption<0.5W by PS ON control 5"x3" miniature size High efficiency up to 94% |
| Protections: Short circuit/Overload/Over voltage/Over temperature |
| Cooling by free air convection for 250W and 400W with 25 CFM forced air Built-in 12V/0.5A FAN With power good and fail signal output Built-in remote sense function |
No load power consumption under 0.5W by PS-ON control |
| LED indicator for power on Output 18V available |
| Operating altitude up to 5000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC; 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC |
| Leakage current | <0.75mA / 240VAC |
| Overload protection | 105 ~ 135% rated output power |
| Over-voltage protection | 108%~130% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 16ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved |
| EMC standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH |
| Dimension (LxWxH) | 127x76.2x35 |
| Packing | 36pcs / 15kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating252 Watt
-
Output Voltage36 Volt
-
Rated Current7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.38 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPP-400-36 for a 36V automation or motion-control subsystem?
Yes, if the equipment requires constant 36V and the total draw does not exceed 7A. This model is rated for 252W, which makes it suitable for higher-power 36V control loads compared with smaller series options.
Is the EPP-400-36 a fit for a 36V embedded computing or edge device power rail?
It can be used where the system expects a 36V constant voltage source and stays within 7A output current. The 252W rating supports larger 36V embedded assemblies than lower-wattage supplies in the same family.
Can this power supply work in equipment sold into different AC regions?
Yes, the input range is 80-264VAC, which supports broad AC input compatibility. The output remains a constant 36V supply rated at 7A and 252W.
What are the main differences between the EPP-400-36 and other EPP series models?
For 36V specifically, the listed family options are EPP-400-36 at 252W and 7A and EPP-500-36 at 320.4W and 8.9A. Across the wider family, outputs span 12V from 75.6W to 320.4W, 15V from 75W to 319.5W, 18V at 250.5W and 320.4W, 24V from 76.8W to 321W, 27V from 75.6W to 321.3W, 48V from 76.8W to 321.6W, and 54V at 320.2W.
Can the EPP-400-36 be used in outdoor equipment or unprotected areas?
The temperature spec is -30°C to +70°C, which is useful for equipment exposed to a broad operating range. The provided specs do not include an IP rating, so they do not identify this model as sealed for outdoor or washdown exposure.
Other EPP-400 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-400-48 Power Supply 254W 48V | 254.4W | 48V | 5.3A | Indoor | $78.26 | View |
| Mean Well EPP-400-27 Power Supply 251W 27V | 251.1W | 27V | 9.3A | Indoor | $74.48 | View |
| Mean Well EPP-400-24 Power Supply 252W 24V | 252W | 24V | 10.5A | Indoor | $75.35 | View |
| Mean Well EPP-400-18 Power Supply 250W 18V | 250.5W | 18V | 13.9A | Indoor | $78.26 | View |
| Mean Well EPP-400-15 Power Supply 250W 15V | 250.5W | 15V | 16.7A | Indoor | $77.30 | View |
| Mean Well EPP-400-12 Power Supply 250W 12V | 249.6W | 12V | 20.8A | Indoor | $74.20 | View |
