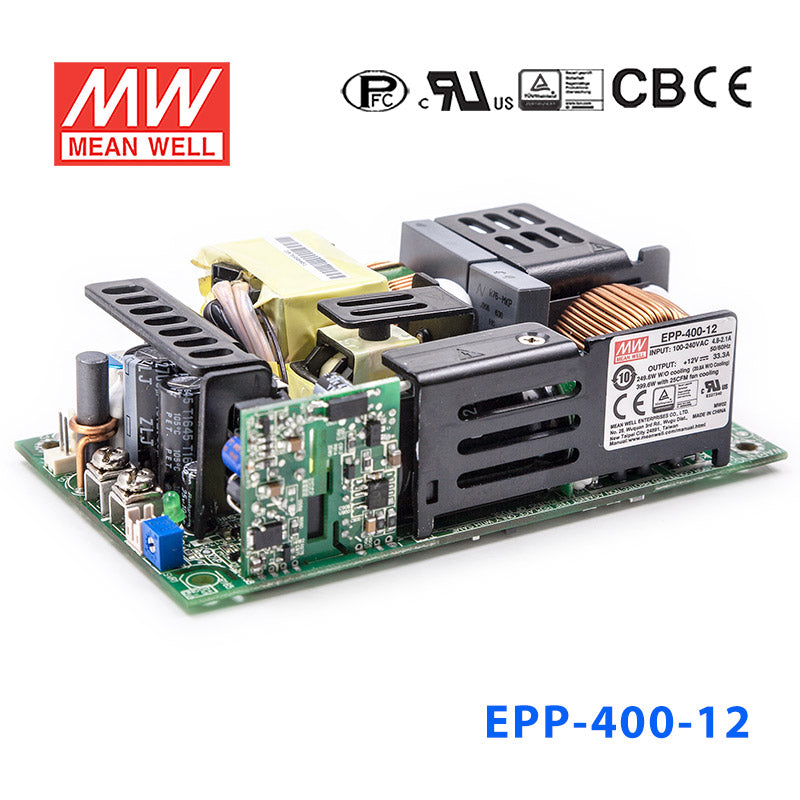

Mean Well EPP-400-12 Power Supply 250W 12V

No load power consumption under 0.5W by PS-ON controlStandby 5V@1A with fan, @ 0.6A without fan

<0.75mA / 240VAC

Key Features

• ✓✓Universal AC input / Full range
• ✓✓Built-in active PFC functionEMI Class B for Class I & Class A for Class II configuration
• ✓✓High efficiency up to 93%
• ✓✓Withstand 300VAC surge input for 6 secondsNo load power consumption<0.5W by PS ON control5"x3" miniature sizeHigh efficiency up to 94%
• ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
• ✓✓Cooling by free air convection for 250W and 400W with 25 CFM forced airBuilt-in 12V/0.5A FANWith power good and fail signal outputBuilt-in remote sense function
• ✓✓No load power consumption under 0.5W by PS-ON controlStandby 5V@1A with fan, @ 0.6A without fan
• ✓✓LED indicator for power onOutput 18V available
• ✓✓Operating altitude up to 5000 meters
• ✓✓3 years warranty

• Brand
  Mean Well
• Series
  EPP Series
• Power Rating
  249.6 Watt
• Output Voltage
  12 Volt
• Rated Current
  20.8 Ampere
• Input Voltage
  80V~264V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CB,CCC,CE,EAC,TUV,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~70°C
• Warranty
  3 Year
• Length
  5 in
• Width
  3 in
• Height
  1.38 in
• Weight
  0.86 lb
