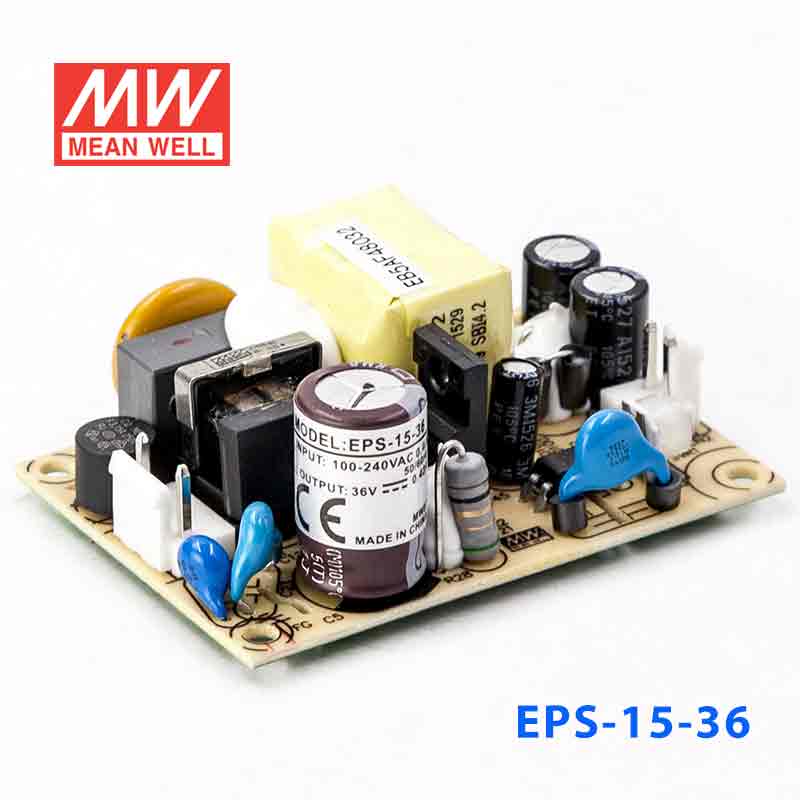

Mean Well EPS-15-36 Power Supply 15W 36V
The EPS-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating15.12 Watt
-
Output Voltage36 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.5 in
-
Width1.8 in
-
Height0.94 in
-
Weight0.13 lb
::specification::
Frequently Asked Questions
Can I use the EPS-15-36 for a 36V industrial sensor or transmitter?
Yes, if the device requires a constant 36V supply and draws no more than 0.42A, this model is in range. Its total output is 15.12W, so it is intended for lower-power 36V electronics rather than larger actuators or drives.
Is this a good fit for a small 36V automation module inside a control cabinet?
It can be a fit for compact 36V automation electronics because it provides 36V constant voltage at up to 0.42A. The 63.5 x 45.7 x 24.0 mm size also suits internal cabinet or equipment builds where board space is limited.
Can the EPS-15-36 power a low-current 36V interface board or monitoring device?
Yes, it is suitable for low-current 36V loads up to 0.42A and 15.12W. That makes it more appropriate for interface, sensing, or monitoring electronics than for higher-current 36V equipment.
Would this work for compact embedded equipment that needs 36V DC from AC input?
Yes, the supply accepts 85-264VAC input and converts it to a constant 36V output. It is best used where the embedded or industrial device stays within the 0.42A and 15.12W output rating.
Can the EPS-15-36 be used in cold or hot indoor equipment environments?
The specified operating temperature range is -30C to +70C, which supports a wide range of equipment environments. No IP rating is provided in the listed specs, so exposed outdoor use is not confirmed by the product data shown here.
What are the differences between the 36V EPS family models?
For 36V versions in this series, the EPS-15-36 is 15.12W at 0.42A, the EPS-25-36 is 25.2W at 0.7A, the EPS-35-36 is 36W at 1A, the EPS-45-36 and EPS-45-36-C are 45W at 1.25A, and the EPS-65-36 and EPS-65-36-C are 65.16W at 1.81A. The 36V output stays the same while the available wattage and current increase across the range.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-15 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $8.85 | View |
| Mean Well EPS-15-12 Power Supply 15W 12V | 15W | 12V | 1.25A | Indoor | $8.85 | View |
| Mean Well EPS-15-7.5 Power Supply 15W 7.5V | 15W | 7.5V | 2A | Indoor | $8.88 | View |
| Mean Well EPS-15-24 Power Supply 15W 24V | 15W | 24V | 0.62A | Indoor | $8.85 | View |
| Mean Well EPS-15-15 Power Supply 15W 15V | 15W | 15V | 1A | Indoor | $8.85 | View |
