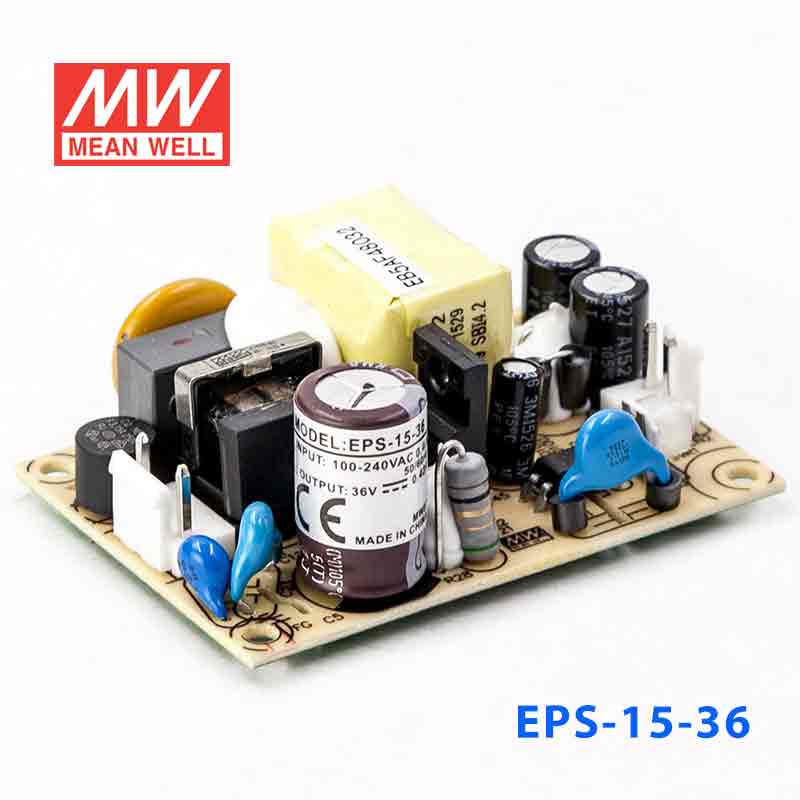

Mean Well EPS-15-36 Power Supply 15W 36V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 85% |
| Cooling by free air convection |
| Compact size |
| Operating altitude up to 3000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 45A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~150% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL62368-1, TUV EN/EN62368-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+2P/3.96mm pitch, JST B3P/B2P-VH |
| Dimension (LxWxH) | 63.5x45.7x24 |
| Packing | 120pcs/7.84Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating15.12 Watt
-
Output Voltage36 Volt
-
Rated Current0.42 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.5 in
-
Width1.8 in
-
Height0.94 in
-
Weight0.13 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-15-36 for a 36V industrial sensor or transmitter?
Yes, if the device requires a constant 36V supply and draws no more than 0.42A, this model is in range. Its total output is 15.12W, so it is intended for lower-power 36V electronics rather than larger actuators or drives.
Is this a good fit for a small 36V automation module inside a control cabinet?
It can be a fit for compact 36V automation electronics because it provides 36V constant voltage at up to 0.42A. The 63.5 x 45.7 x 24.0 mm size also suits internal cabinet or equipment builds where board space is limited.
Can the EPS-15-36 power a low-current 36V interface board or monitoring device?
Yes, it is suitable for low-current 36V loads up to 0.42A and 15.12W. That makes it more appropriate for interface, sensing, or monitoring electronics than for higher-current 36V equipment.
Would this work for compact embedded equipment that needs 36V DC from AC input?
Yes, the supply accepts 85-264VAC input and converts it to a constant 36V output. It is best used where the embedded or industrial device stays within the 0.42A and 15.12W output rating.
Can the EPS-15-36 be used in cold or hot indoor equipment environments?
The specified operating temperature range is -30C to +70C, which supports a wide range of equipment environments. No IP rating is provided in the listed specs, so exposed outdoor use is not confirmed by the product data shown here.
What are the differences between the 36V EPS family models?
For 36V versions in this series, the EPS-15-36 is 15.12W at 0.42A, the EPS-25-36 is 25.2W at 0.7A, the EPS-35-36 is 36W at 1A, the EPS-45-36 and EPS-45-36-C are 45W at 1.25A, and the EPS-65-36 and EPS-65-36-C are 65.16W at 1.81A. The 36V output stays the same while the available wattage and current increase across the range.
