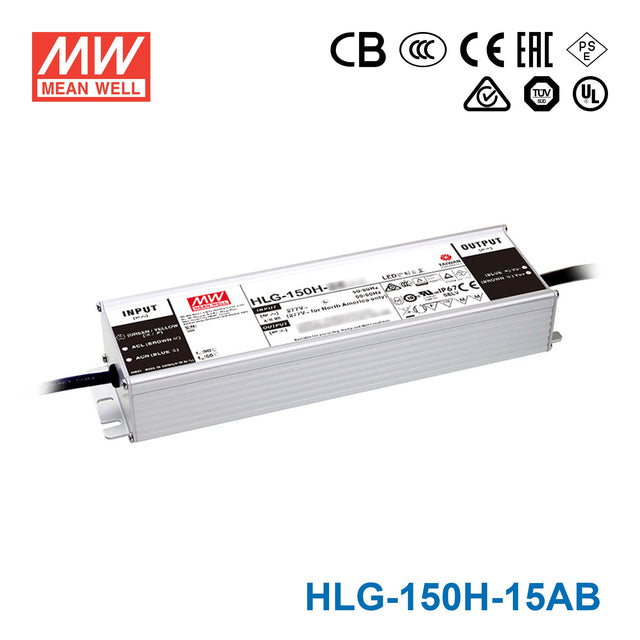

Mean Well HLG-150H-15AB Power Supply 150W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-150H-15AB Power Supply 150W 15V - Adjustable and Dimm...
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-15AB with a dimming controller for 15V LED display case lighting?
Yes. The HLG-150H-15AB supports dimming via 1-10V, PWM, and resistance signals, plus it has an adjustable output potentiometer. This combination lets you set the baseline output for your 15V display case LEDs and then use a dimmer to adjust brightness for different exhibits or times of day.
Is the HLG-150H-15AB suitable for dimmable 15V LED museum or gallery lighting?
It is well suited for museum and gallery environments where precise light control is essential. The adjustable output lets you optimize the driver for the specific LED fixtures, and the dimming input allows smooth brightness transitions. At 150W and 15V it can power substantial lighting arrays within 150W.
Can I use the HLG-150H-15AB for a dimmable 15V LED light panel installation?
Yes, provided the total panel load stays within 150W. The HLG-150H-15AB outputs 15V at up to 10A and accepts dimming signals for smooth brightness control. The built-in potentiometer lets you fine-tune the operating point before connecting the dimming system.
How many meters of 15V LED strip can the HLG-150H-15AB drive?
The HLG-150H-15AB supplies up to 150W at 15V. Divide 150W by your strip's rated wattage per meter. For instance, a strip rated at 10W/m would allow up to 15 meters (150W / 10W per meter = 15m). Always check your strip's rated power per meter and keep total load within 150W.
Can the HLG-150H-15AB be used in an outdoor installation?
The HLG-150H-15AB is rated IP65 water-resistant, which protects against dust and low-pressure water jets. It is appropriate for sheltered outdoor installations such as covered canopies, enclosed sign cabinets, or ventilated electrical boxes. For fully exposed wet environments, the IP67-rated HLG-150H-15B with dimming would be more suitable.
What is the difference between the HLG-150H-15AB and the HLG-150H-15A?
Both are adjustable 150W, 15V, 10A drivers at IP65 water-resistant rating, but the HLG-150H-15AB adds a dimming input that accepts 1-10V, PWM, and resistance signals. The HLG-150H-15A has adjustable output only with no dimming. Choose the -15AB when you need both output tuning and external brightness control.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-150H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $54.87 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
