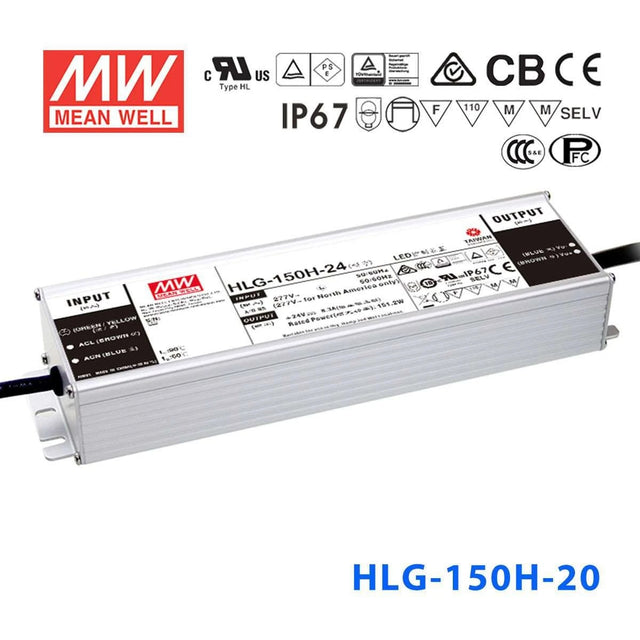

Mean Well HLG-150H-20 Power Supply 150W 20V
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage20 Volt
-
Rated Current7.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-20 to power 20V LED strip lighting outdoors?
Yes. The HLG-150H-20 outputs 20V at up to 7.5A (150W) and carries an IP67 waterproof rating, so it can be installed in fully exposed outdoor locations including rain, snow, and high-humidity environments. Its aluminium casing and -40°C to +90°C operating range handle extreme weather conditions.
Is the HLG-150H-20 a good choice for powering 20V LED channel letter signs?
Yes. With 150W at 20V, the HLG-150H-20 can drive a substantial run of 20V LED sign modules. The IP67 waterproof rating makes it suitable for outdoor signage installations, and the wide 90-305VAC input accommodates varying mains voltages found in commercial signage deployments.
Can the HLG-150H-20 power 20V LED panel lights in a warehouse or industrial space?
Yes, as long as the panels operate at 20V and their combined wattage stays within 150W. The constant-current mode with a CC voltage range of 10-20V accommodates panels that may draw slightly less than 20V during startup. The robust aluminium housing suits industrial environments.
How many meters of 20V LED strip can the HLG-150H-20 power?
Divide 150W by your strip's rated power per meter. For example, a strip rated at 10W/m allows up to 15 meters (150W / 10W per meter = 15m). A strip rated at 14W/m allows about 10.7 meters. Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-20 handle full rain exposure or temporary flooding?
Yes. Its IP67 rating means the enclosure is dust-tight and protected against temporary immersion in water up to 1 meter. It can be mounted outdoors without any additional weatherproof enclosure, even in locations subject to heavy rain or occasional standing water.
What are the differences between the HLG-150H-20, 20A, 20AB, and 20B models?
All four share the same 150W / 20V / 7.5A core specs. The base HLG-150H-20 has fixed output and IP67 waterproof rating. The -20A adds output voltage/current adjustment via built-in potentiometer (IP65). The -20AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -20B adds dimming input only and retains IP67.
