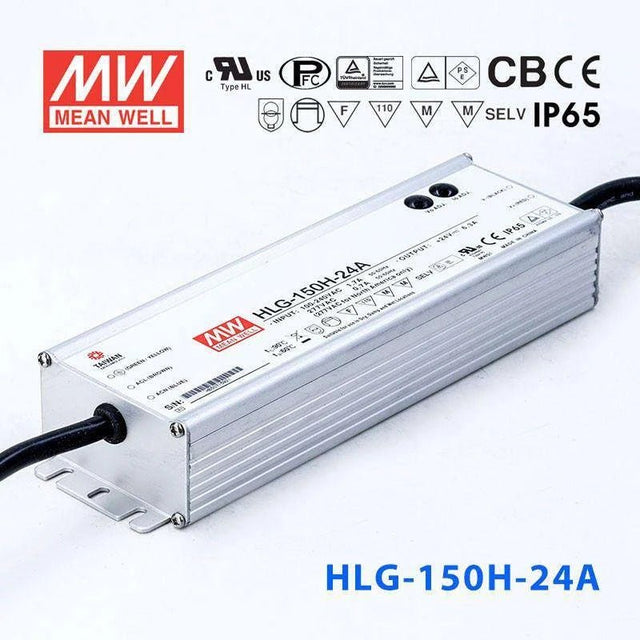

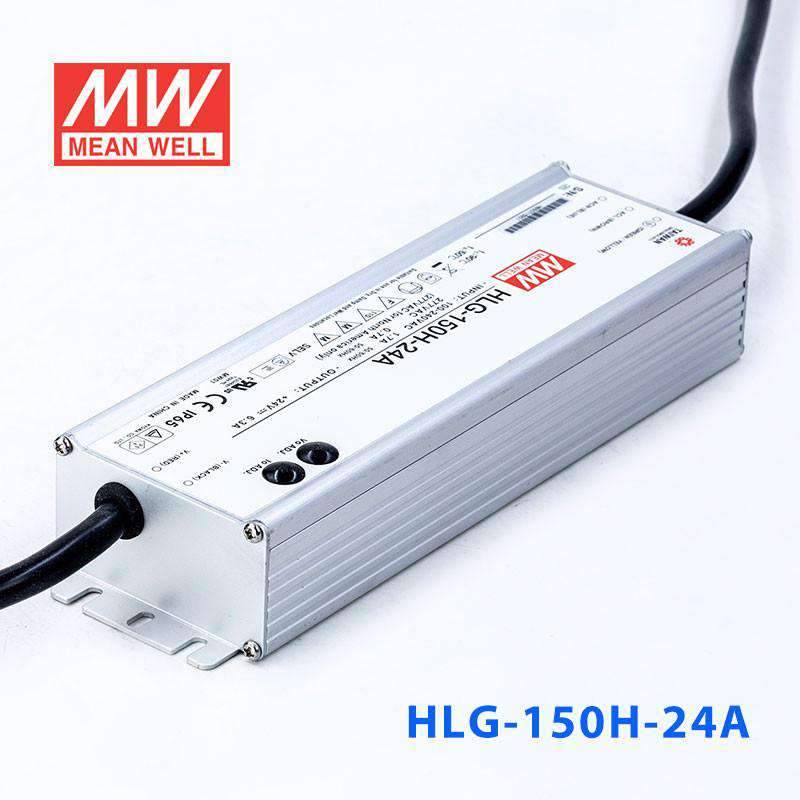

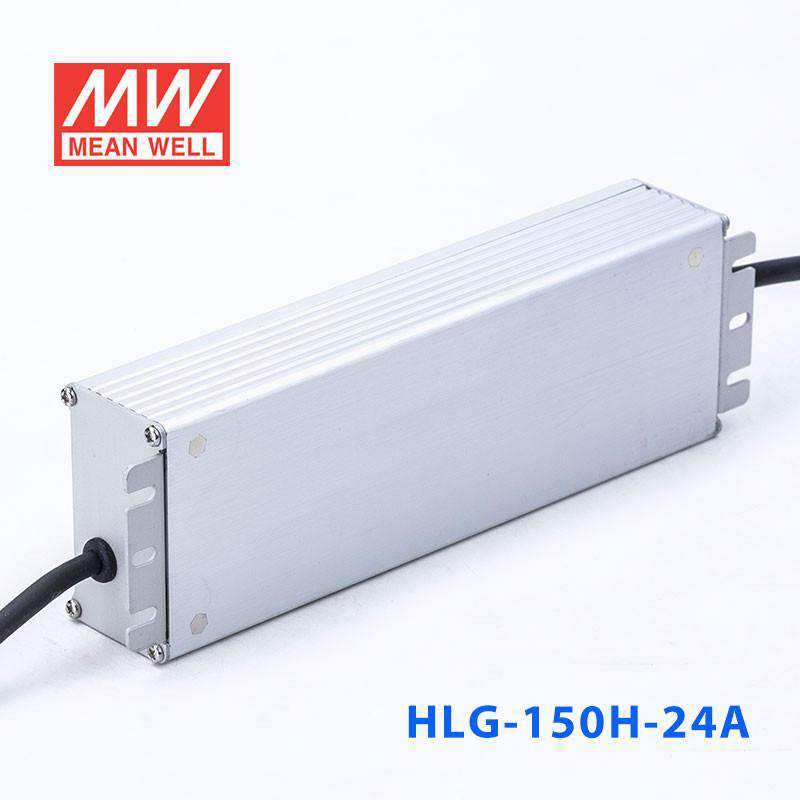

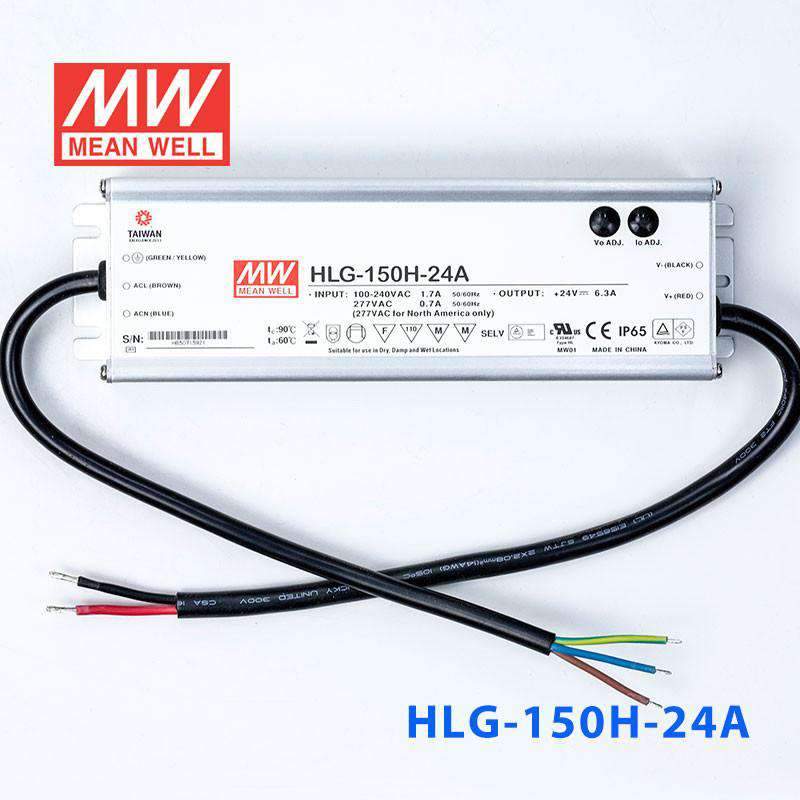

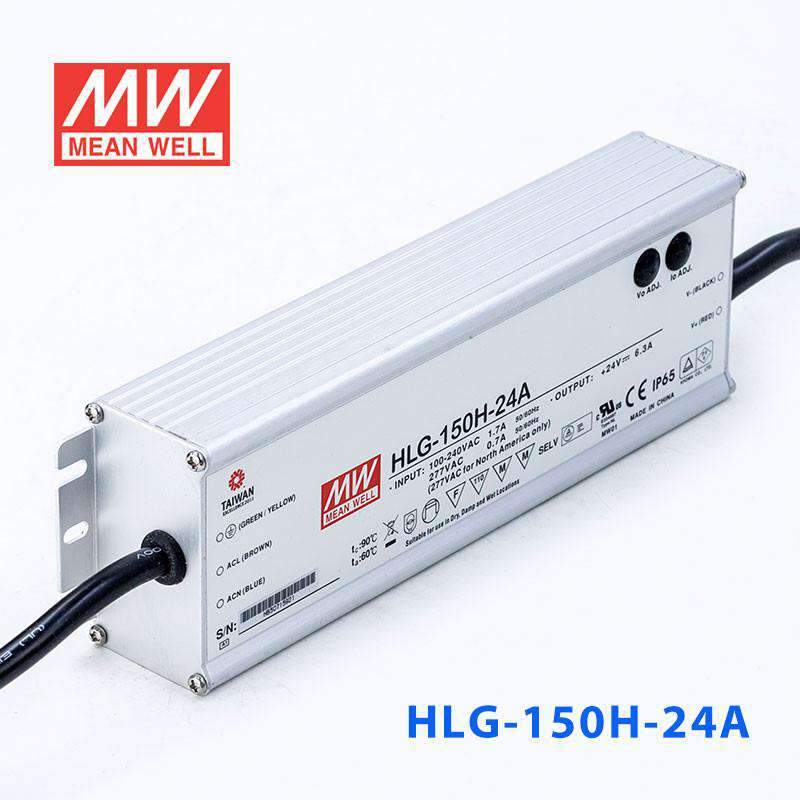

Mean Well HLG-150H-24A Power Supply 150W 24V - Adjustable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-24A to power 24V LED strips in a sheltered outdoor setting?
Yes. The HLG-150H-24A delivers 24V at up to 6.3A (150W) with an IP65 water-resistant rating. It handles dust and low-pressure water jets, making it suitable for covered patios, soffits, or carports. For fully exposed rain locations, consider the IP67-rated HLG-150H-24 instead.
Is the adjustable output on the HLG-150H-24A helpful for tuning 24V LED installations?
Yes. The built-in potentiometer lets you trim the output voltage and current to match your specific LED load. With a CC voltage range of 12-24V, you can lower the drive level to reduce brightness or compensate for voltage drop on long cable runs without needing an external dimmer.
Can the HLG-150H-24A power 24V LED modules for large commercial signage?
Yes. At 150W and 24V, it drives a substantial array of 24V sign modules. The adjustable output is especially useful for dialing in the exact voltage match to your module string, reducing waste heat and extending module life. The 90-305VAC input suits international deployments.
Is the HLG-150H-24A a good choice for 24V under-cabinet or cove lighting?
Yes. The 150W capacity is ample for typical under-cabinet or cove lighting runs, and the adjustable output lets you set the brightness to the desired level. Its 228 x 68 x 38.8 mm dimensions fit in most ceiling voids, furniture cavities, or utility closets.
How many meters of 24V LED strip can the HLG-150H-24A handle?
Divide 150W by your strip's power per meter. For example, a 24V strip rated at 12W/m allows 12.5 meters (150W / 12W per meter = 12.5m). Always check your strip's rated power per meter and keep total load at or below 150W.
Is the HLG-150H-24A rated for damp indoor environments like bathrooms or laundry rooms?
Yes. IP65 protects against dust and low-pressure water jets, which comfortably covers damp indoor spaces such as bathrooms, laundry rooms, kitchens, and parking garages. For locations with heavy direct water exposure, the IP67-rated HLG-150H-24 would be more appropriate.
