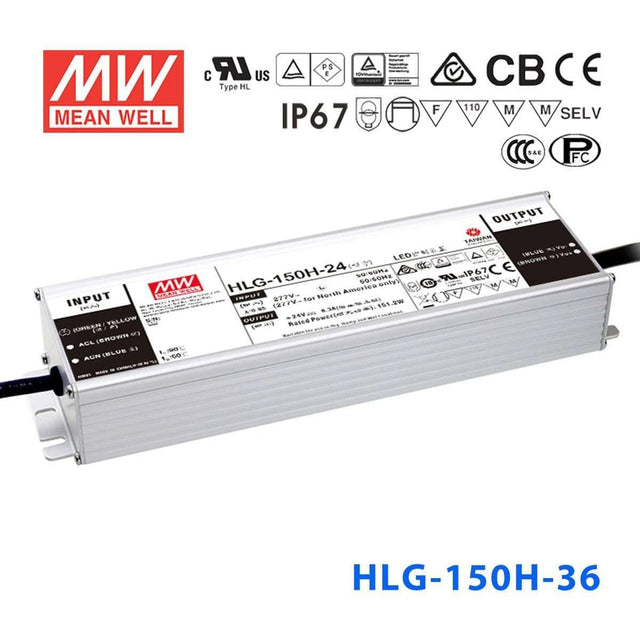

Mean Well HLG-150H-36 Power Supply 150W 36V
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage36 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-36 to power 36V LED strip lighting outdoors?
Yes. The HLG-150H-36 delivers 150W at 36V with up to 4.2A and carries an IP67 waterproof rating. It can be mounted in fully exposed outdoor locations, handling rain, snow, and humidity. The aluminium casing and -40°C to +90°C operating range ensure durability in harsh conditions.
Is the HLG-150H-36 suitable for driving 36V LED high-bay or industrial fixtures?
Yes. With 150W at 36V in constant-current mode (CC range 18-36V), it can power 36V LED high-bay fixtures in warehouses, factories, or workshops. The wide 90-305VAC input handles most industrial mains supplies, and the 7-year warranty suits long-lifecycle industrial installations.
Can the HLG-150H-36 drive 36V LED modules for outdoor signage or channel letters?
Yes. At 150W and 36V, it provides enough power for a string of 36V LED sign modules. The IP67 waterproof rating allows direct outdoor mounting on sign cabinets without additional weatherproofing, and the -40°C to +90°C operating range handles extreme ambient temperatures.
How many meters of 36V LED strip can the HLG-150H-36 power?
Divide 150W by your strip's rated power per meter. For example, a 36V strip consuming 14W/m would allow about 10.7 meters (150W / 14W per meter = 10.7m). Always check your strip's rated power per meter and keep the total load at or below 150W.
Can the HLG-150H-36 withstand outdoor installation in extreme heat or cold?
Yes. It operates from -40°C to +90°C, covering climates from arctic cold to desert heat. The IP67 rating seals the unit against dust and water submersion, and the aluminium casing provides effective heat dissipation even at elevated ambient temperatures.
What are the differences between the HLG-150H-36, 36A, 36AB, and 36B models?
All four share the same 150W / 36V / 4.2A core specs and 228 x 68 x 38.8 mm dimensions. The base HLG-150H-36 has fixed output and IP67 waterproof rating. The -36A adds output voltage/current adjustment via built-in potentiometer (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -36B provides dimming input only and retains IP67.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-150H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $54.87 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
