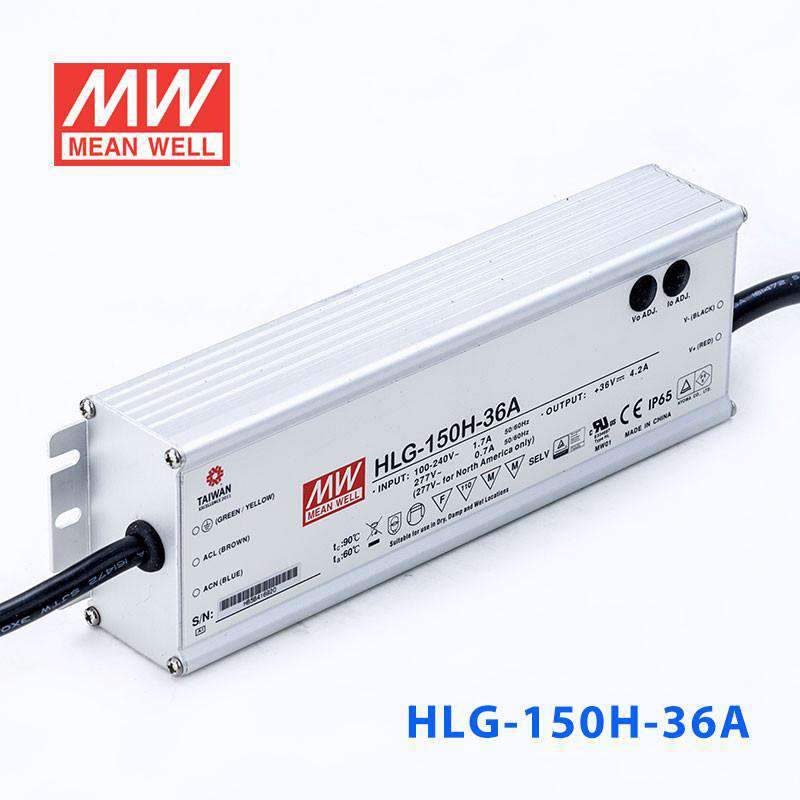

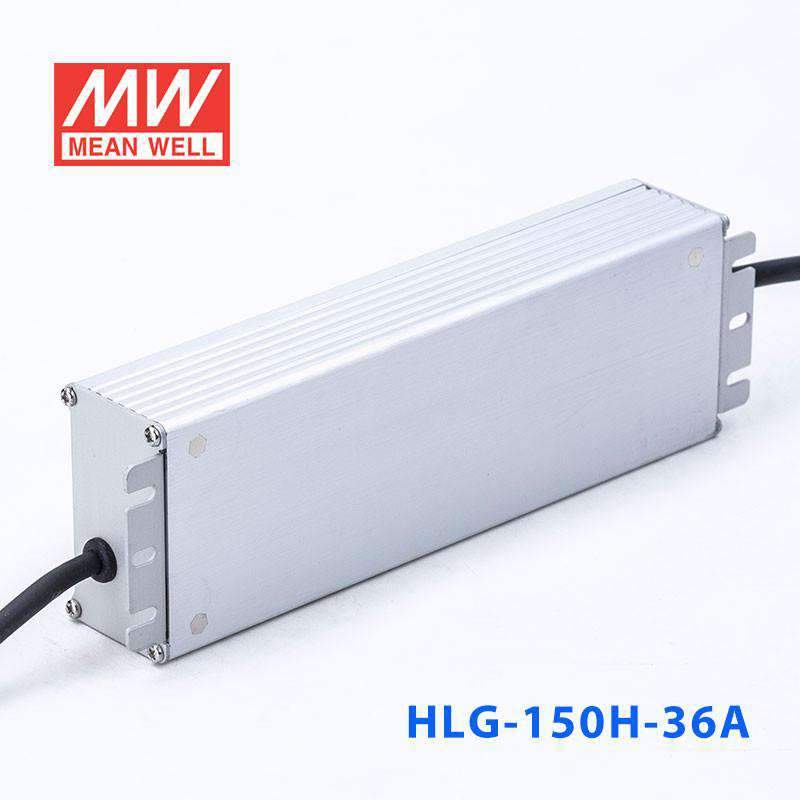

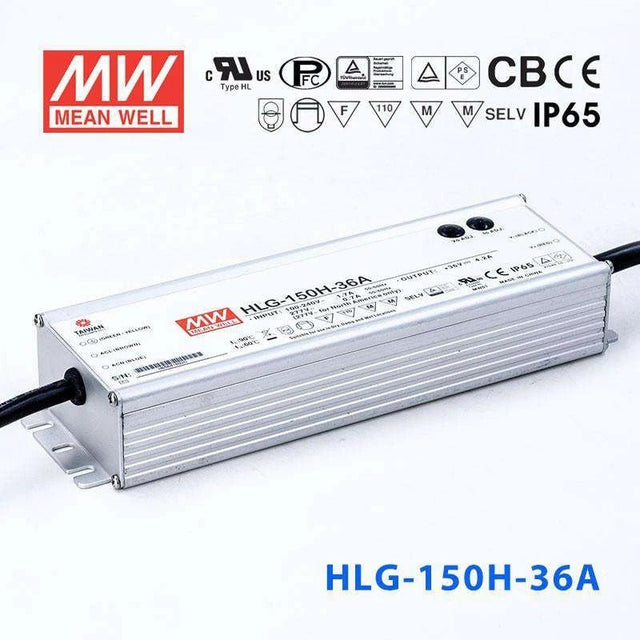

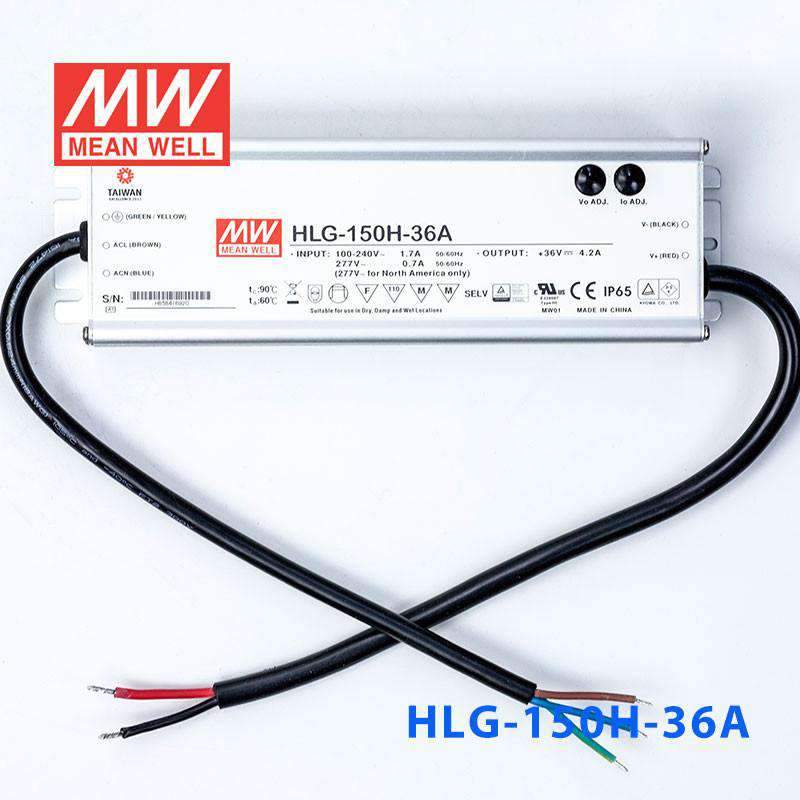

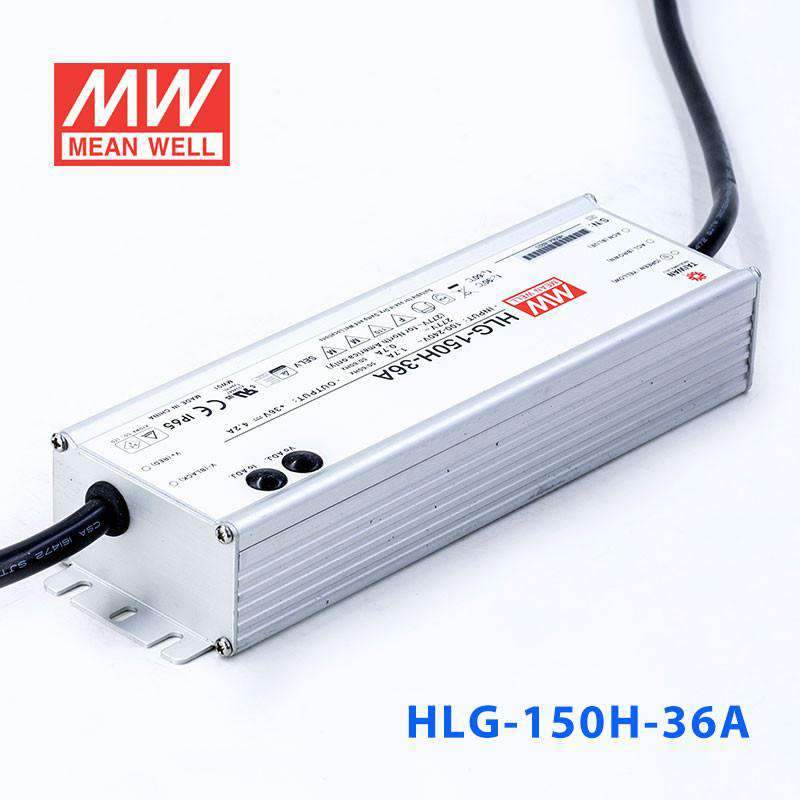

Mean Well HLG-150H-36A Power Supply 150W 36V - Adjustable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage36 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-36A to adjust output for varying 36V LED loads?
Yes. The HLG-150H-36A includes a built-in potentiometer that lets you trim the output voltage and current. This is useful when your 36V LED load needs slightly less than the full 4.2A, or when you want to reduce drive current to lower brightness without adding an external dimmer.
Is the HLG-150H-36A a good driver for 36V LED retrofit projects in commercial spaces?
Yes. The adjustable output lets you match the driver precisely to existing 36V LED fixtures that may not draw the full 150W. The wide 90-305VAC input works with commercial mains voltages globally, and the 7-year warranty reduces long-term maintenance costs.
Can the HLG-150H-36A power 36V LED under-canopy or soffit lighting?
Yes. At 150W and 36V, it has ample capacity for under-canopy LED strip or fixture installations. Its IP65 water-resistant rating handles splashing water and dust in covered outdoor locations like gas station canopies, building soffits, or covered walkways.
How many meters of 36V LED strip can the HLG-150H-36A drive?
The HLG-150H-36A delivers up to 150W at 36V. Divide 150 by your strip's wattage per meter to find the maximum length. For instance, a 36V strip rated at 10W/m could run up to 15 meters (150W / 10W per meter = 15m). Always check your strip's rated power per meter before sizing.
Is the HLG-150H-36A protected enough for a semi-enclosed outdoor equipment cabinet?
Yes. The IP65 rating provides complete protection against dust and low-pressure water jets, which is suitable for semi-enclosed cabinets, ventilated enclosures, and covered mounting locations. For fully exposed or submerged conditions, the IP67-rated HLG-150H-36 base model is the better choice.
