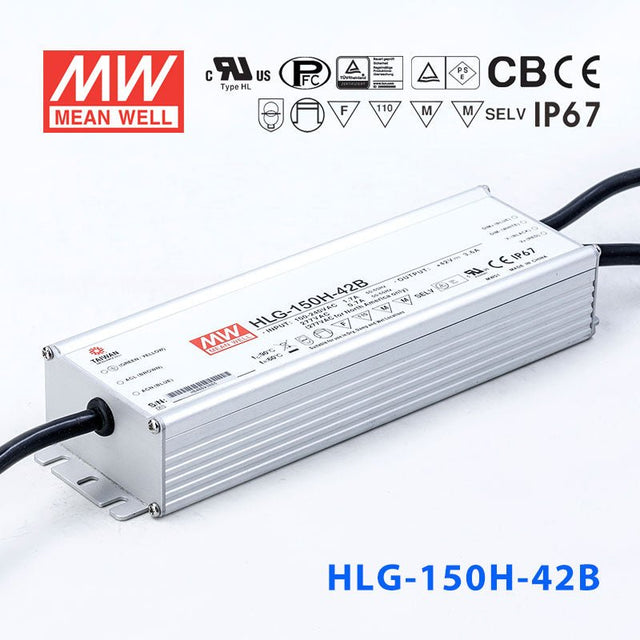

Mean Well HLG-150H-42AB Power Supply 150W 42V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-150H-42AB Power Supply 150W 42V - Adjustable and Dimm...
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage42 Volt
-
Rated Current3.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-42AB with a 1-10V dimmer for 42V LED architectural lighting?
Yes. The HLG-150H-42AB accepts 1-10V and PWM dimming signals, so you can pair with a standard wall dimmer or building automation controller to smoothly adjust 42V LED brightness. The built-in potentiometer also lets you set the maximum output level independently.
Is the HLG-150H-42AB a good choice for smart-home controlled 42V LED lighting?
Yes. Its dimming input (1-10V/PWM) can be driven by most smart-home lighting controllers or automation systems that output a 1-10V signal. Combined with 150W at 42V and adjustable output, it provides both automated and manual brightness control for 42V LED installations.
Can the HLG-150H-42AB power dimmable 42V LED panel lights in a conference room?
Yes. With 150W at 42V and built-in dimming capability, it is well suited for conference rooms or offices where smooth brightness adjustment is needed. The adjustable output lets you fine-tune the drive level to match the specific LED panel, and 1-10V dimming integrates with most commercial lighting controls.
How many meters of 42V LED strip can the HLG-150H-42AB drive?
The HLG-150H-42AB supplies up to 150W. Divide 150 by your strip's wattage per meter. For a strip drawing 10W/m you could run up to 15 meters (150W / 10W per meter = 15m). Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-42AB be installed in a damp indoor environment like a basement or wash-down area?
Yes. Its IP65 rating protects against low-pressure water jets and dust, which is sufficient for damp basements, garages, or light wash-down areas. For locations with direct rain exposure or potential standing water, consider the IP67-rated HLG-150H-42B which also offers dimming.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-150H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $54.87 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
