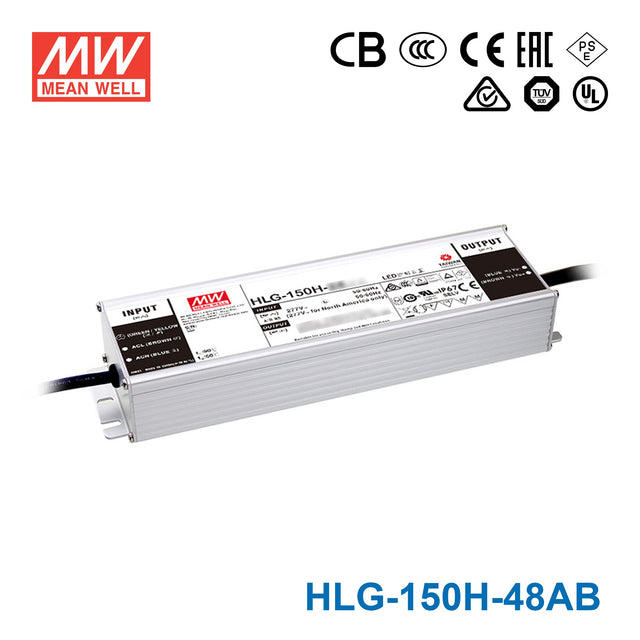

Mean Well HLG-150H-48AB Power Supply 150W 48V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-150H-48AB Power Supply 150W 48V - Adjustable and Dimm...
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage48 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-48AB with a building automation system to dim 48V LED fixtures?
Yes. The HLG-150H-48AB accepts 1-10V and PWM dimming signals, making it compatible with most building management and automation systems. The built-in potentiometer also allows manual fine-tuning of the maximum output level independently from the dimming control.
Is the HLG-150H-48AB a good driver for dimmable 48V LED office or retail lighting?
Yes. With 150W at 48V, adjustable output, and dimming input, it is well suited for commercial environments where lighting levels need to change throughout the day. The 48V output also permits longer cable runs with less voltage drop compared to 24V systems, which is an advantage in large retail or open-plan office layouts.
Can the HLG-150H-48AB power a 48V LED cove lighting system with smooth dimming?
Yes. The combination of adjustable output and 1-10V/PWM dimming makes it ideal for architectural cove lighting where precise brightness control matters. You can set the potentiometer to match your LED strip's optimal drive level, then use the dimming input for day-to-day brightness changes.
How many meters of 48V LED strip can the HLG-150H-48AB drive?
Divide 150W by your strip's wattage per meter. A 48V strip rated at 12W/m could run up to 12.5 meters (150W / 12W per meter = 12.5m). Check your strip's rated power per meter and keep the total load at or below 150W for reliable dimming performance.
Can the HLG-150H-48AB be used in a humid indoor space like a pool area or spa room?
Its IP65 rating protects against low-pressure water jets and dust, which is generally adequate for humid indoor environments like pool equipment rooms or spa areas where the driver is not directly submerged. For locations with potential water immersion, the IP67-rated HLG-150H-48B with dimming would be a better choice.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-150H Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $54.87 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
