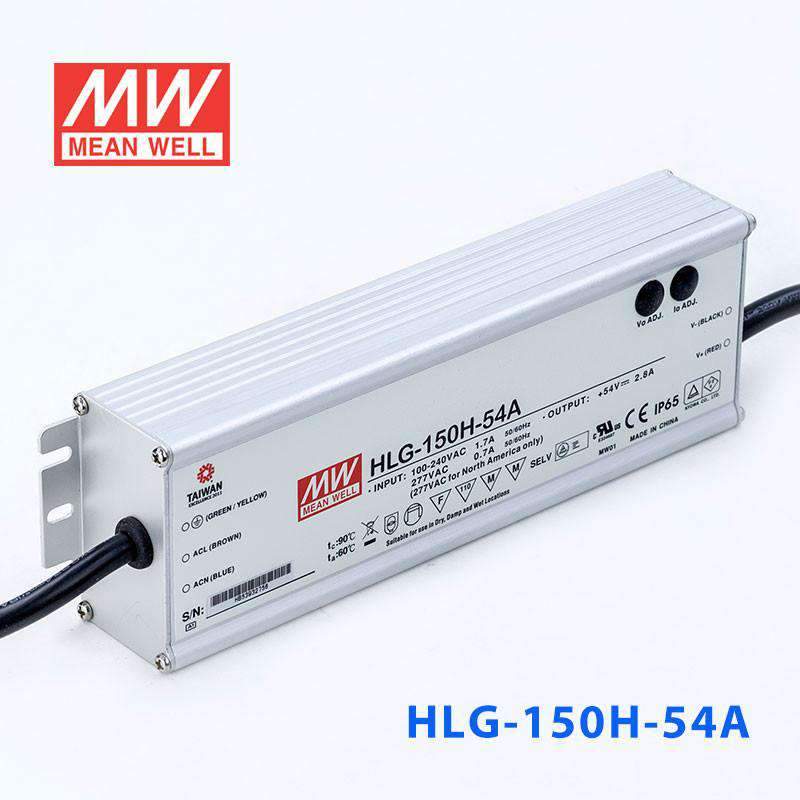

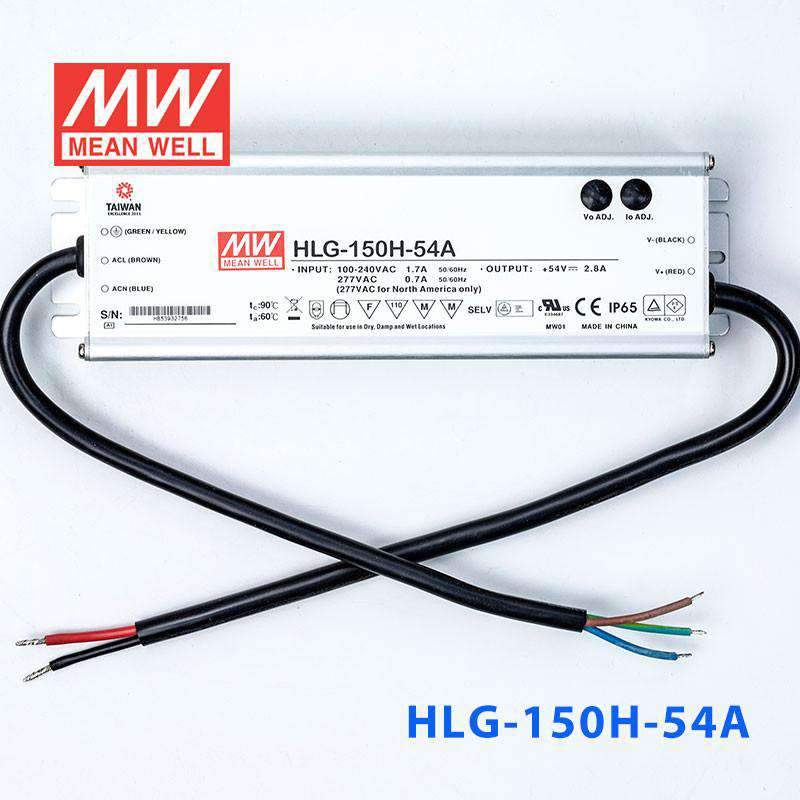

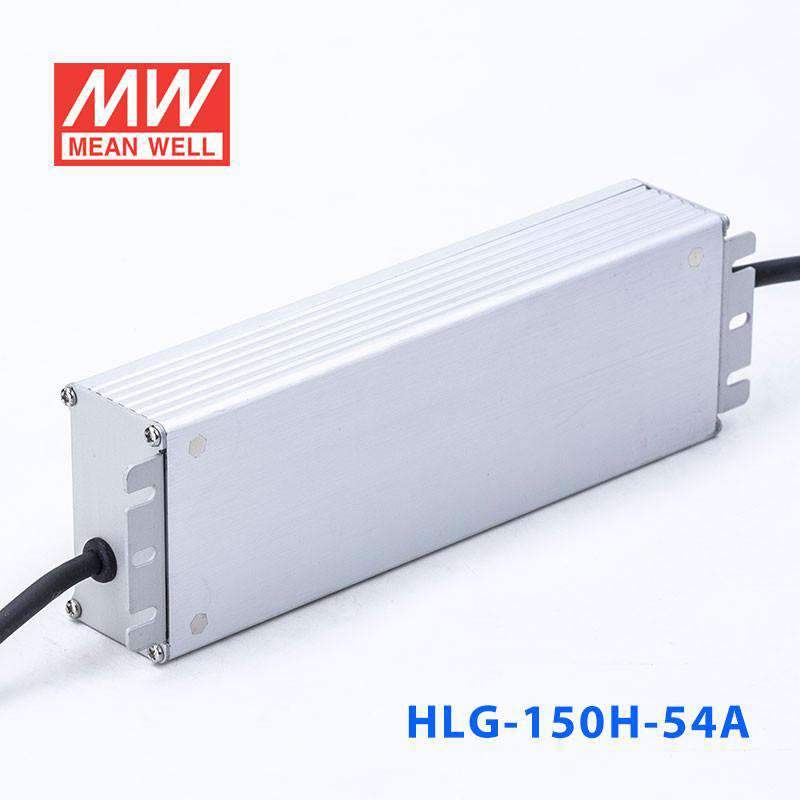

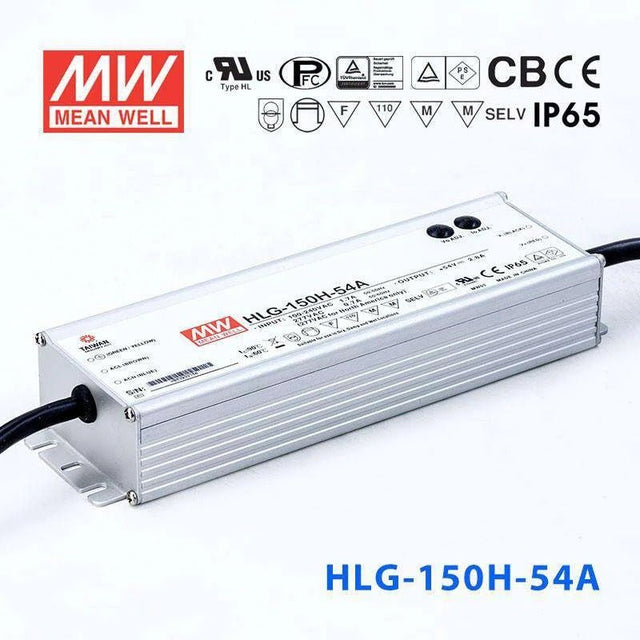

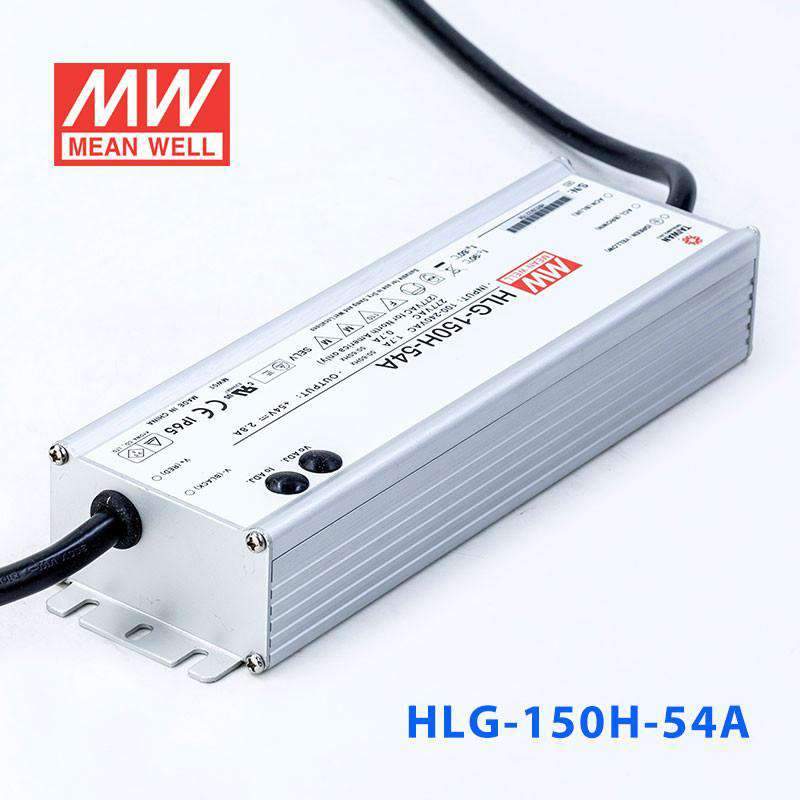

Mean Well HLG-150H-54A Power Supply 150W 54V - Adjustable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage54 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-54A to fine-tune output for 54V LED high-bay fixtures?
Yes. The HLG-150H-54A has a built-in potentiometer that lets you adjust output voltage and current. This is useful when your 54V high-bay fixtures need a slightly lower drive level or when matching the driver precisely to the LED module's optimal forward voltage within the 27-54V CC range.
Is the HLG-150H-54A a good choice for 54V LED floodlights in a covered parking structure?
Yes. At 150W and 54V with IP65 water-resistant protection, the HLG-150H-54A handles dust and low-pressure water jets typical of covered parking garages or canopied areas. The adjustable output lets you dial in the exact brightness level for the floodlights.
Can the HLG-150H-54A power series-connected 54V LED COB arrays?
Yes. The HLG-150H-54A provides up to 2.8A at 54V in constant-current mode, which is ideal for series-connected COB LED arrays. The built-in potentiometer allows you to trim the current to match the COB manufacturer's recommended drive level.
How many 54V LED modules can I connect to the HLG-150H-54A?
The total combined wattage must not exceed 150W. For example, if each module draws 30W at 54V, you could parallel up to five modules (5 × 30W = 150W). Always check each module's rated power consumption and keep the total at or below the driver's 150W capacity.
Can the HLG-150H-54A be used in a damp equipment room or semi-enclosed outdoor cabinet?
Yes. IP65 protects against dust ingress and low-pressure water jets from any direction, which is more than adequate for damp equipment rooms, ventilated outdoor cabinets, or covered canopy installations. For direct rain or standing-water exposure, consider the IP67-rated HLG-150H-54 instead.
