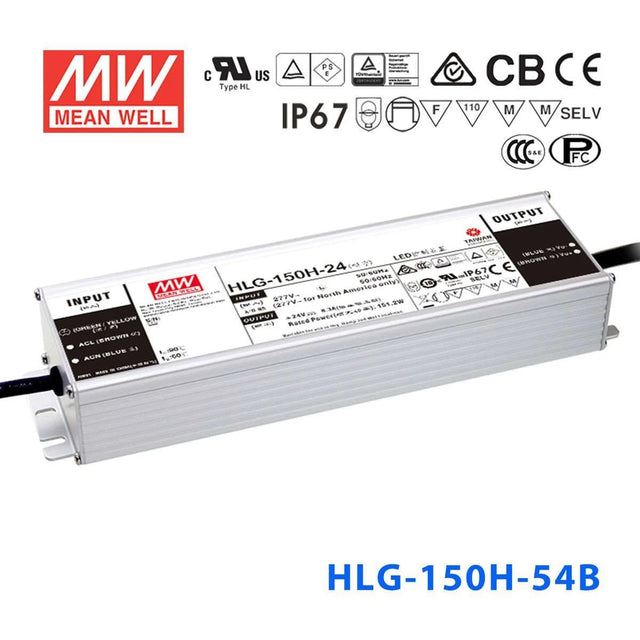

Mean Well HLG-150H-54B Power Supply 150W 54V- Dimmable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage54 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-54B with a 1-10V dimmer for outdoor 54V LED landscape lighting?
Yes. The HLG-150H-54B accepts 1-10V and PWM dimming signals, and its IP67 waterproof rating allows fully exposed outdoor installation. This makes it a strong choice for 54V landscape LED fixtures where dimming is needed and the driver will be exposed to rain, irrigation spray, or ground moisture.
Is the HLG-150H-54B suitable for dimmable 54V LED facade or architectural lighting?
Yes. With 150W at 54V, dimming input, and IP67 waterproof protection, the HLG-150H-54B is well suited for exterior facade illumination where brightness needs to change between daytime accent and nighttime showcase modes. The -40°C to +90°C operating range handles seasonal extremes.
Can the HLG-150H-54B power dimmable 54V LED flood lights in a wet location?
Yes. The IP67 rating protects against temporary submersion and continuous outdoor exposure, while the dimming input allows brightness control via a 1-10V or PWM signal. At 150W and 2.8A, it can drive 54V flood lights up to its rated capacity.
How does the HLG-150H-54B compare to the HLG-150H-54AB for outdoor dimmable projects?
Both offer 150W at 54V with dimming input. The key difference is the -54B is IP67 waterproof but has no output adjustment potentiometer, while the -54AB has both dimming and a potentiometer but is IP65 (water-resistant only). Choose the -54B for fully exposed outdoor installations and the -54AB when you need manual output trimming in a sheltered location.
Can the HLG-150H-54B withstand freezing winter temperatures outdoors?
Yes. It is rated for operation from -40°C to +90°C, so it will function reliably through harsh winters. The IP67 waterproof aluminium casing also resists condensation, ice formation, and snow contact without requiring additional enclosure protection.
