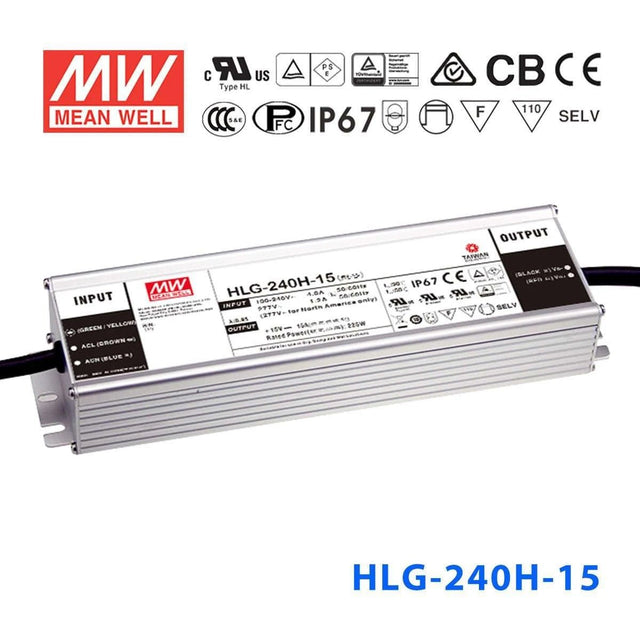

Mean Well HLG-240H-15 Power Supply 225W 15V
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating225 Watt
-
Output Voltage15 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-15 to power 15V LED strips or modules outdoors?
Yes. The HLG-240H-15 delivers 225W at 15V with up to 15A and carries an IP67 waterproof rating. It is suitable for outdoor 15V LED strip runs, linear lighting, or module arrays exposed to rain and moisture.
Is the HLG-240H-15 suitable for driving 15V LED fixtures in industrial or warehouse settings?
Yes. With 225W of output at 15V and a wide 90-305VAC input range, the HLG-240H-15 can reliably power 15V LED fixtures in factories, warehouses, or workshops. The aluminium casing dissipates heat effectively, and the -40°C to +90°C operating range handles hot industrial environments.
Can the HLG-240H-15 power 15V LED signage modules?
Yes. At 225W and 15V output, this driver has ample capacity for 15V LED channel letters, light boxes, or cabinet sign modules. Its IP67 rating allows it to be mounted inside outdoor sign housings where condensation or water splash may occur.
How many meters of 15V LED strip can the HLG-240H-15 power?
Divide 225W by your strip's rated power per meter. For example, a 15V strip drawing 15W/m could run 15 meters (225W / 15W per meter = 15m). Always check your strip's rated power per meter and keep total load at or below 225W.
Can the HLG-240H-15 be directly exposed to rain and standing water?
Yes. Its IP67 rating means the unit is fully dust-tight and protected against temporary immersion in water up to 1 meter deep. It can be mounted outdoors without any additional weatherproof enclosure, even in locations with pooling rainwater.
What are the differences between the HLG-240H-15, 15A, and 15AB models?
All three share the same 225W / 15V / 15A core specs and 244.2 x 68.0 x 38.8 mm dimensions. The base HLG-240H-15 has no adjustment or dimming and is IP67 waterproof. The -15A adds a built-in potentiometer for output voltage and current adjustment and is IP65 water-resistant. The -15AB adds both the adjustment potentiometer and a 1-10V/PWM dimming input, also at IP65.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-240H Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-240H-24 Power Supply 240W 24V | 240W | 24V | 10A | IP67 | $72.97 | View |
| Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable | 192W | 12V | 16A | IP65 | $59.00 | View |
| Mean Well HLG-240H-12 Power Supply 192W 12V | 192W | 12V | 16A | IP67 | $62.47 | View |
| Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable | 240W | 48V | 5A | IP65 | $72.97 | View |
| Mean Well HLG-240H-42B Power Supply 240W 42V- Dimmable | 240W | 42V | 5.72A | IP67 | $64.45 | View |
| Mean Well HLG-240H-42A Power Supply 240W 42V - Adjustable | 240W | 42V | 5.72A | IP65 | $72.81 | View |
| Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable | 240W | 24V | 10A | IP65 | $60.50 | View |
