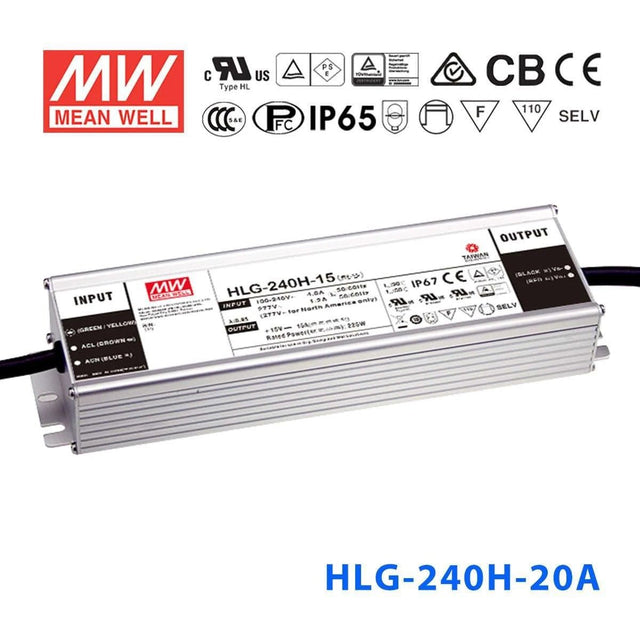

Mean Well HLG-240H-20A Power Supply 240W 20V - Adjustable
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating240 Watt
-
Output Voltage20 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-20A for 20V LED strip lighting in a covered outdoor patio?
Yes. The HLG-240H-20A delivers 20V at up to 12A (240W) with an IP65 water-resistant rating, which handles splashing water and dust in covered patios, canopies, or soffits. For fully rain-exposed locations without any overhead cover, consider the IP67-rated HLG-240H-20 instead.
Is the adjustable output on the HLG-240H-20A useful for fine-tuning LED brightness?
Yes. The built-in potentiometer lets you trim both the output voltage and current, which is helpful when you need to match the driver precisely to a specific LED load or reduce brightness slightly. The CC voltage range of 10-20V gives room to lower the drive level without an external dimmer.
Can the HLG-240H-20A power 20V LED modules for commercial light box displays?
Yes. With 240W at 20V, it provides enough power for large light box arrays using 20V LED modules. The adjustable output lets you dial in the exact voltage for optimal module performance, and the wide 90-305VAC input works with most commercial electrical systems worldwide.
How many meters of 20V LED strip can the HLG-240H-20A drive?
Divide 240W by your strip's rated wattage per meter. For example, a strip rated at 20W/m would allow 12 meters (240W / 20W per meter = 12m). Always check your strip's rated power per meter and keep total load at or below 240W.
Is the HLG-240H-20A suitable for an outdoor installation exposed to direct rain?
The HLG-240H-20A has an IP65 water-resistant rating, which protects against low-pressure water jets and dust but is not rated for submersion or heavy sustained rain exposure. It is appropriate for sheltered outdoor locations. For fully exposed installations, the IP67-rated HLG-240H-20 or HLG-240H-20B would be a better choice.
What is the difference between the HLG-240H-20A and the HLG-240H-20AB?
Both share the same 240W / 20V / 12A output and IP65 rating. The HLG-240H-20A offers output voltage/current adjustment via a built-in potentiometer. The HLG-240H-20AB includes that same adjustment plus a 1-10V/PWM dimming input for external brightness control. Choose the -20AB if you need both adjustment and dimming capability.
