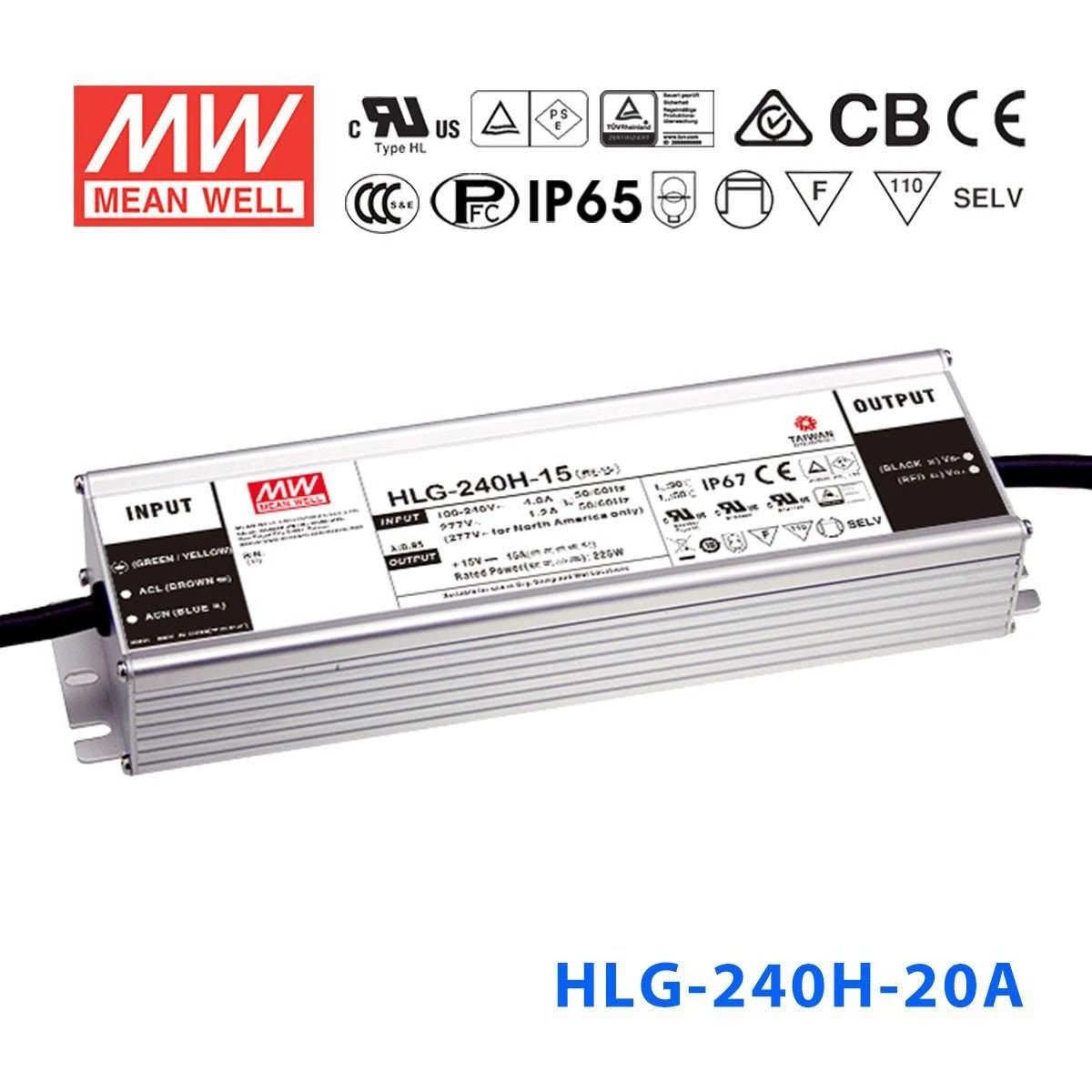

Mean Well HLG-240H-20A Power Supply

Name: Mean Well HLG-240H-20A Power Supply 240W 20V - Adjustable 12A
Brand: Mean Well
SKU: HLG-240H-20A
Price: 72.97 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-240H-20A is the 20V output model of this series: rated current 12A, rated power 240W, typical efficiency 91.5%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-240H-20ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 10 ~ 20V
RATED CURRENT: 12A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 18.6 ~ 21.4V
CURRENT ADJ. RANGE: 6 ~ 12A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 1000ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 91.5%
AC CURRENT (Typ.): 4A / 115VAC 2A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=570μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 23.5 ~ 27.5V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type), UL8750;GB/T19510.1,GB/T19510. 213(except for C-type); IP65 or IP67;J61347-1,J61347-2-13 (except for C,D-type) , BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB,C,D-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)

OTHERS

MTBF: 2015.1K hrs min. Telcordia SR-332 (Bellcore) ; 176.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B) 251*68*38.8mm (L*W*H)(HLG-240H C-Type)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B) 1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240 C-Type)

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
C: Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal potentiometer
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-240H-20A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-20A Illustration (page 5) — Illustration (page 5)

HLG-240H-20A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-240H-20A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-20A MECHANICAL SPECIFICATION ※A-Type — MECHANICAL SPECIFICATION ※A-Type

HLG-240H-20A Dimensions (mm) — Dimensions (mm)

HLG-240H-20A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-20A datasheetHLG-240H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates3

CB Certificate (HLG-100-185H)(EN) PDF Download

TUV Certificate (HLG-240H)(EN) PDF Download

EMC Certificate(HLG-240H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-240H-20A for 20V LED strip lighting in a covered outdoor patio?

Yes. The HLG-240H-20A delivers 20V at up to 12A (240W) with an IP65 water-resistant rating, which handles splashing water and dust in covered patios, canopies, or soffits. For fully rain-exposed locations without any overhead cover, consider the IP67-rated HLG-240H-20 instead.

Is the adjustable output on the HLG-240H-20A useful for fine-tuning LED brightness?

Yes. The built-in potentiometer lets you trim both the output voltage (18.6-21.4V) and current (6-12A), which is helpful when you need to match the driver precisely to a specific LED load or reduce brightness slightly. Lowering the current setting reduces the drive level without an external dimmer.

Can the HLG-240H-20A power 20V LED modules for commercial light box displays?

Yes. With 240W at 20V, it provides enough power for large light box arrays using 20V LED modules. The adjustable output lets you dial in the exact voltage for optimal module performance, and the wide 90-305VAC input works with most commercial electrical systems worldwide.

How many meters of 20V LED strip can the HLG-240H-20A drive?

Divide 240W by your strip's rated wattage per meter. For example, a strip rated at 20W/m would allow 12 meters (240W / 20W per meter = 12m). Always check your strip's rated power per meter and keep total load at or below 240W.

Is the HLG-240H-20A suitable for an outdoor installation exposed to direct rain?

The HLG-240H-20A has an IP65 water-resistant rating, which protects against low-pressure water jets and dust but is not rated for submersion. It is appropriate for sheltered outdoor locations. For fully exposed installations, the IP67-rated HLG-240H-20 or HLG-240H-20B would be a better choice.

What is the difference between the HLG-240H-20A and the HLG-240H-20AB?

Both share the same 240W / 20V / 12A output and IP65 rating. The HLG-240H-20A offers output voltage/current adjustment via a built-in potentiometer. The HLG-240H-20AB includes that same adjustment plus a 1-10V/PWM dimming input for external brightness control. Choose the -20AB if you need both adjustment and dimming capability.
