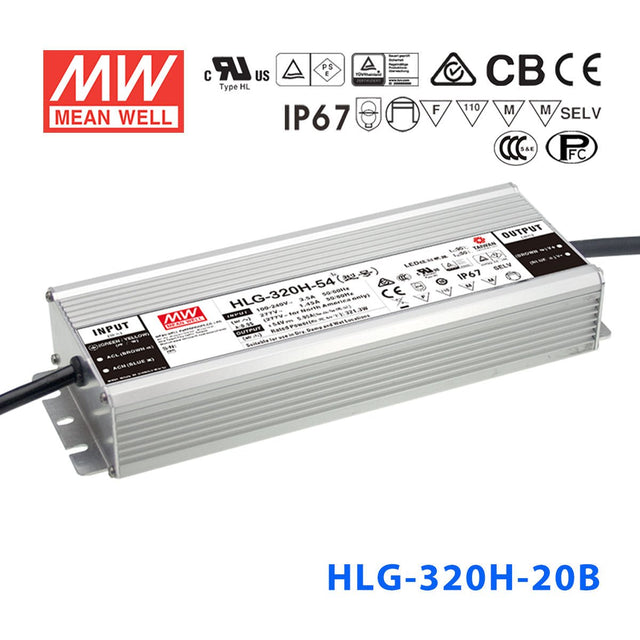

Mean Well HLG-320H-20AB Power Supply 300W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-20AB Power Supply 300W 20V - Adjustable and Dimm...
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating300 Watt
-
Output Voltage20 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-20AB with a 1-10V dimmer to control high-power 20V LED strip installations?
Yes. The HLG-320H-20AB accepts 1-10V and PWM dimming signals and delivers up to 300W at 20V, so you can pair with a wall dimmer or automation controller to smoothly adjust brightness on large 20V LED strip runs. The built-in potentiometer also lets you set the maximum output level.
Is the HLG-320H-20AB suitable for powering 20V LED channel-letter signage with dimming control?
Yes. At 300W and 20V output with 1-10V/PWM dimming input, it can drive large 20V channel-letter or cabinet sign arrays while allowing brightness scheduling. Its wide 90-305VAC input handles most commercial mains voltages worldwide.
Can the HLG-320H-20AB power a smart-home controlled 20V LED lighting system?
Yes. The dimming input (1-10V/PWM) can be driven by most smart-home controllers or building automation systems. With 300W at 20V and an adjustable output potentiometer, you get both automated dimming and manual fine-tuning of the drive level.
How many meters of 20V LED strip can the HLG-320H-20AB power?
Divide 300W by your strip's rated power per meter. For example, a strip drawing 14W/m allows up to about 21.4 meters (300W / 14W per meter). Always check your strip's rated power per meter and keep the total load at or below 300W.
Can the HLG-320H-20AB be installed in a sheltered outdoor location like a soffit or canopy?
Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it suitable for covered outdoor areas such as soffits, canopies, and awnings. For fully exposed rain installations, the IP67-rated HLG-320H-20B is a better choice.
What is the operating temperature range of the HLG-320H-20AB for outdoor use?
The HLG-320H-20AB operates from -40°C to +90°C, covering extreme cold and hot climates. This wide range means it can be deployed in freezing northern winters or hot desert summers without derating under most real-world conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-320H Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-320H-24 Power Supply 320W 24V | 320W | 24V | 13.34A | IP67 | $81.83 | View |
| Mean Well HLG-320H-12 Power Supply 264W 12V | 264W | 12V | 22A | IP67 | $77.62 | View |
| Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable | 320W | 24V | 13.34A | IP67 | $81.04 | View |
| Mean Well HLG-320H-12A Power Supply 264W 12V - Adjustable | 264W | 12V | 22A | IP65 | $80.77 | View |
| Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable | 320W | 24V | 13.34A | IP65 | $93.02 | View |
| Mean Well HLG-320H-48B Power Supply 320W 48V- Dimmable | 320W | 48V | 6.7A | IP67 | $81.04 | View |
| Mean Well HLG-320H-42A Power Supply 320W 42V - Adjustable | 320W | 42V | 7.65A | IP65 | $86.45 | View |
| Mean Well HLG-320H-54A Power Supply 320W 54V - Adjustable | 320W | 54V | 5.95A | IP65 | $99.33 | View |
| Mean Well HLG-320H-42B Power Supply 320W 42V- Dimmable | 320W | 42V | 7.65A | IP67 | $96.14 | View |
