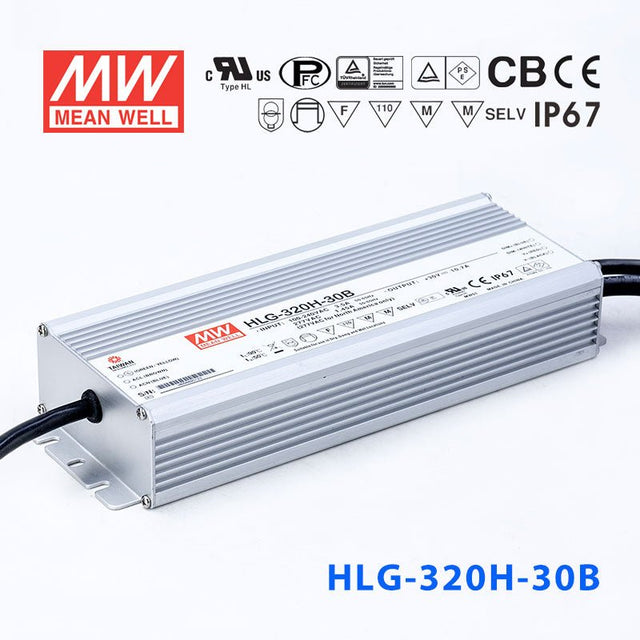

Mean Well HLG-320H-30AB Power Supply 320W 30V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-320H-30AB Power Supply 320W 30V - Adjustable and Dimm...
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating320 Watt
-
Output Voltage30 Volt
-
Rated Current10.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-30AB for dimmable outdoor 30V LED strip lighting?
Yes. The HLG-320H-30AB delivers 320W at 30V with both adjustable output and dimming capability via 1-10V, PWM, or resistance signals. However, it carries an IP65 water-resistant rating, so it should be mounted in a sheltered location such as a covered enclosure or canopy rather than fully exposed to rain or submersion.
Is the HLG-320H-30AB suitable for powering dimmable 30V LED channel letter signage?
It is a strong fit for medium to large channel letter sign installations requiring dimming control. At 320W and 30V output, it can drive a significant number of LED modules, and the adjustable output lets you fine-tune voltage within the 15-30V constant-current range. Mount the driver inside the sign cabinet to respect the IP65 rating.
Can I power a 30V dimmable LED light box or backlit display with the HLG-320H-30AB?
Yes, as long as the total load stays at or below 320W. The built-in potentiometer lets you dial in the baseline output while the dimming input provides scene-based brightness control. Its wide 90-305VAC input means it works on virtually any mains supply worldwide.
How many meters of 30V LED strip can the HLG-320H-30AB support?
Divide 320W by your strip's rated power per meter to find the maximum length. For example, a strip rated at 14W/m could run approximately 22.8 meters (320W / 14W per meter). Always check your strip's rated power per meter and keep the total load at or below 320W.
Is the HLG-320H-30AB weatherproof enough for a rooftop or exposed outdoor installation?
The HLG-320H-30AB is rated IP65, which protects against dust and low-pressure water jets but not submersion or heavy direct rain exposure. For a rooftop or exposed location, house it in a ventilated weatherproof enclosure. If the driver must be fully exposed, consider the IP67-rated HLG-320H-30B instead.
What is the difference between the HLG-320H-30AB and the other HLG-320H-30 variants?
All four share 320W, 30V, 10.7A core specs. The base HLG-320H-30 has fixed output and IP67 waterproof rating. The -30A adds adjustable output at IP65. The -30AB (this model) combines adjustable output and dimming at IP65. The -30B offers dimming only and retains the IP67 waterproof rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-320H Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-320H-24 Power Supply 320W 24V | 320W | 24V | 13.34A | IP67 | $81.83 | View |
| Mean Well HLG-320H-12 Power Supply 264W 12V | 264W | 12V | 22A | IP67 | $77.62 | View |
| Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable | 320W | 24V | 13.34A | IP67 | $81.04 | View |
| Mean Well HLG-320H-12A Power Supply 264W 12V - Adjustable | 264W | 12V | 22A | IP65 | $80.77 | View |
| Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable | 320W | 24V | 13.34A | IP65 | $93.02 | View |
| Mean Well HLG-320H-48B Power Supply 320W 48V- Dimmable | 320W | 48V | 6.7A | IP67 | $81.04 | View |
| Mean Well HLG-320H-42A Power Supply 320W 42V - Adjustable | 320W | 42V | 7.65A | IP65 | $86.45 | View |
| Mean Well HLG-320H-54A Power Supply 320W 54V - Adjustable | 320W | 54V | 5.95A | IP65 | $99.33 | View |
| Mean Well HLG-320H-42B Power Supply 320W 42V- Dimmable | 320W | 42V | 7.65A | IP67 | $96.14 | View |
