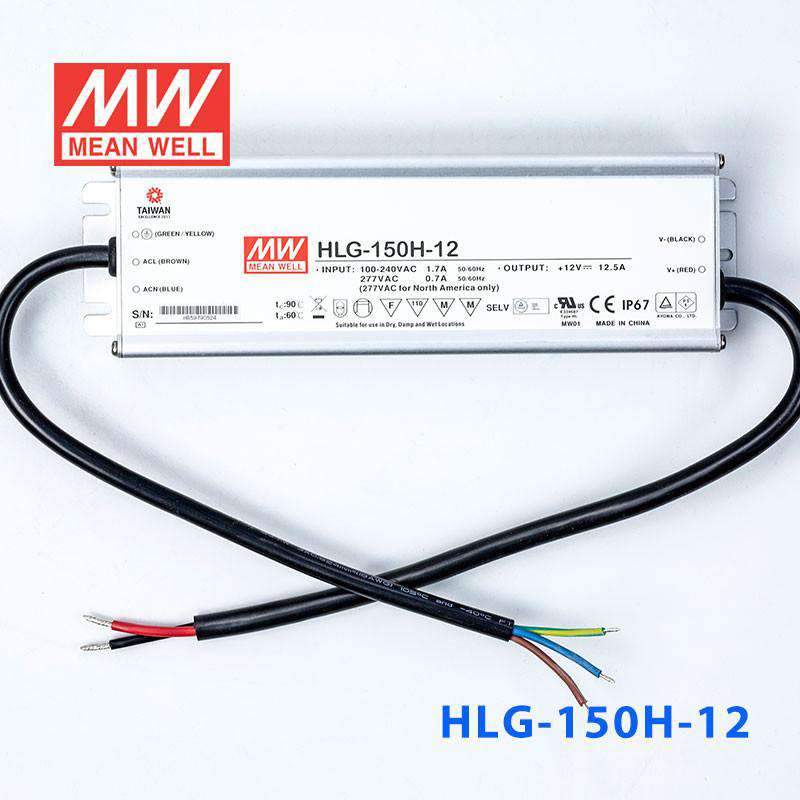

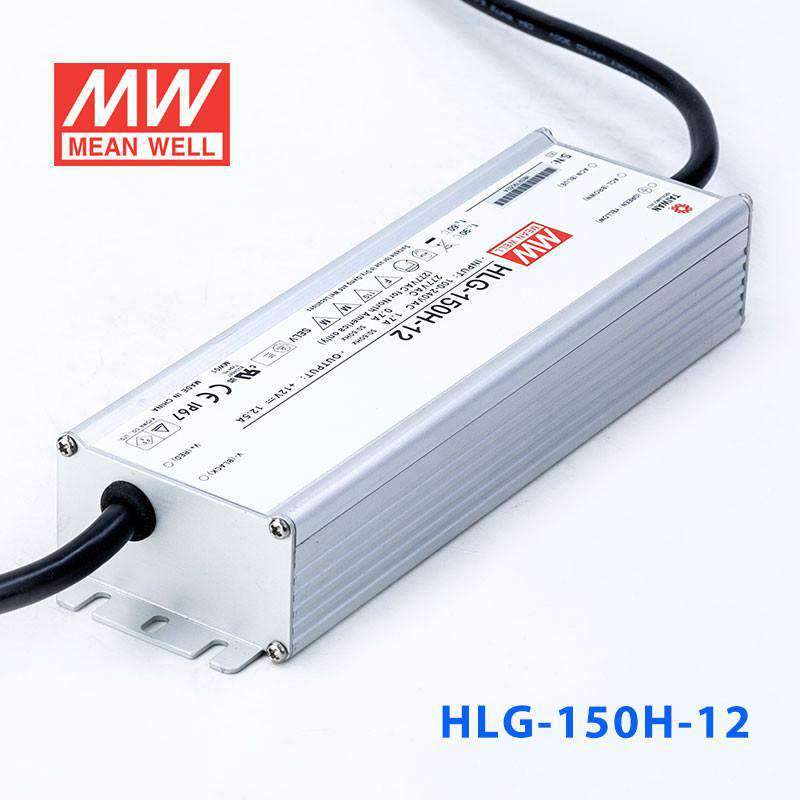

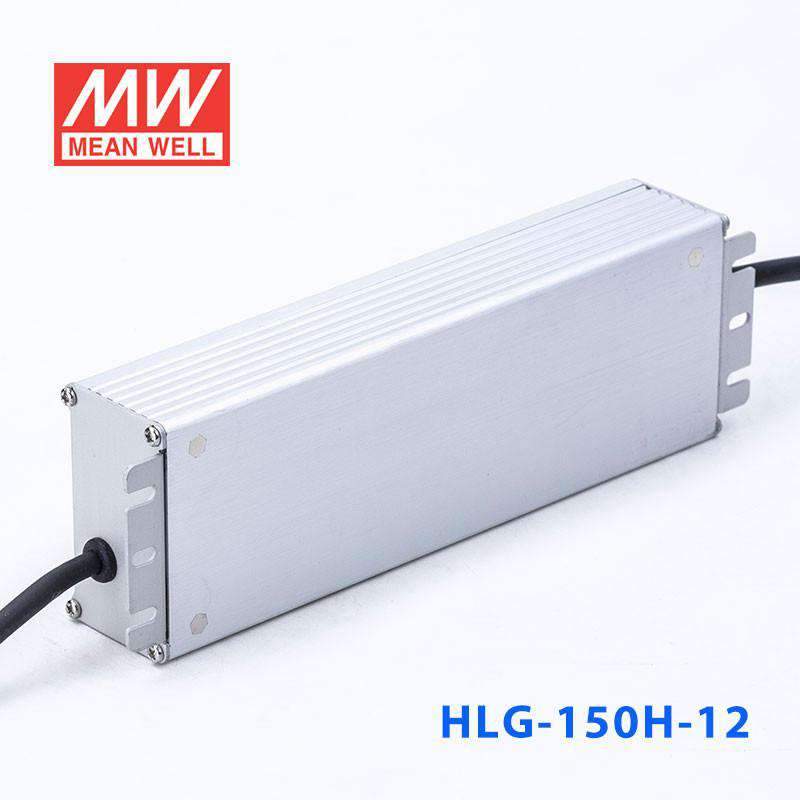

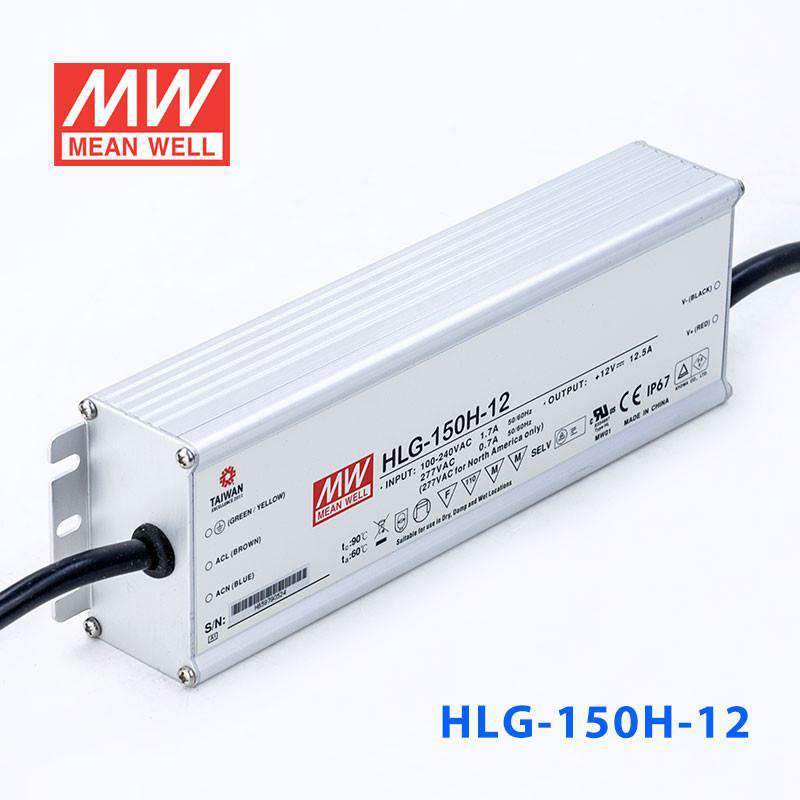

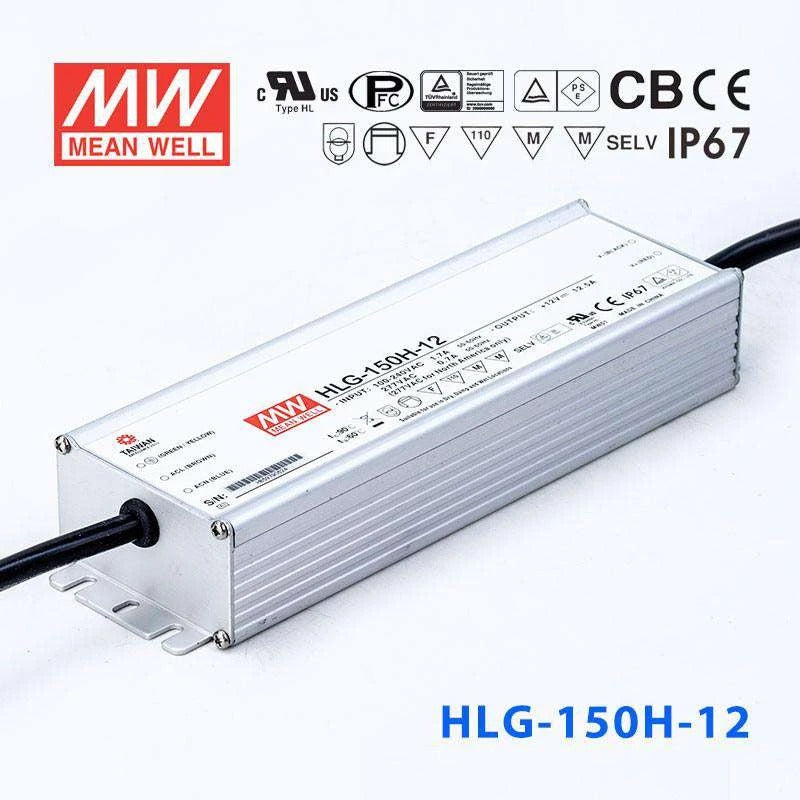

Mean Well HLG-150H-12 Power Supply 150W 12V
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-12 to power 12V LED strip lighting in an outdoor sign?
Yes. The HLG-150H-12 delivers 12V at up to 12.5A (150W) and has an IP67 waterproof rating, so it can be mounted inside outdoor sign cabinets or other exposed enclosures. The aluminium casing and -40°C to +90°C operating range also handle harsh weather conditions.
Is the HLG-150H-12 suitable for powering 12V LED facade or building accent lighting?
It is a strong fit for facade and building accent lighting using 12V LED strips or modules. With 150W of output and IP67 waterproof protection, the driver can be installed in exposed outdoor locations close to the LED fixtures. The wide 90-305VAC input accepts mains supplies worldwide.
Can I run 12V LED under-cabinet lighting from the HLG-150H-12?
Yes, as long as the total LED load stays at or below 150W. The HLG-150H-12 provides 12V at up to 12.5A, which is ample for most residential or commercial under-cabinet LED strip runs. Its compact 228 x 68 x 38.8 mm size allows it to be concealed above cabinetry.
How many meters of 12V LED strip can the HLG-150H-12 power?
That depends on your strip's rated wattage per meter. The HLG-150H-12 provides 150W at 12V. For example, a strip drawing 14.4W/m would allow approximately 10.4 meters (150W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-12 handle full outdoor exposure including rain and temporary submersion?
Yes. The IP67 rating means the HLG-150H-12 is protected against dust ingress and can withstand temporary immersion in water up to 1 meter. Combined with the sealed aluminium housing and -40°C to +90°C operating range, it is built for fully exposed outdoor installations.
What are the differences between the HLG-150H-12, 12A, 12AB, and 12B variants?
All four share the same 150W, 12V, 12.5A core output. The base HLG-150H-12 has fixed output and IP67 waterproof rating. The -12A adds adjustable output via potentiometer but uses an IP65 water-resistant rating. The -12AB offers both adjustable output and dimming at IP65. The -12B provides dimming without adjustable output and retains IP67 waterproof protection.
