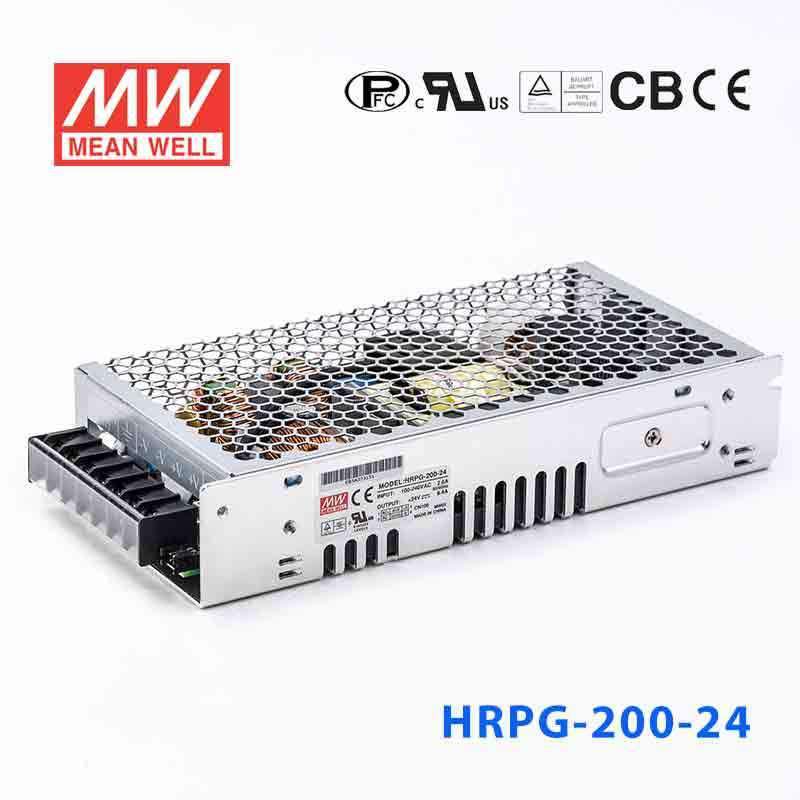

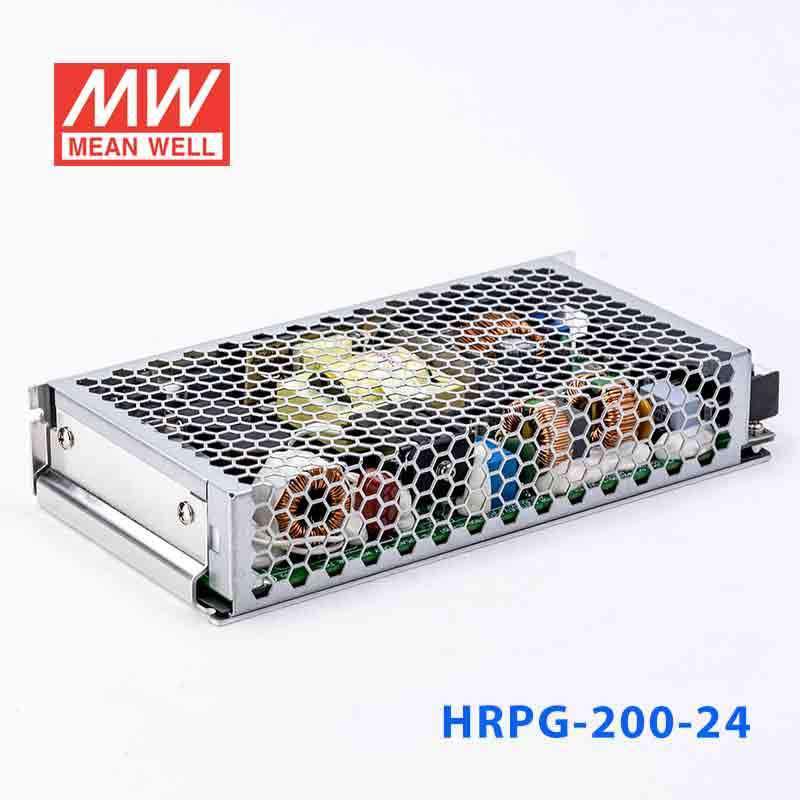

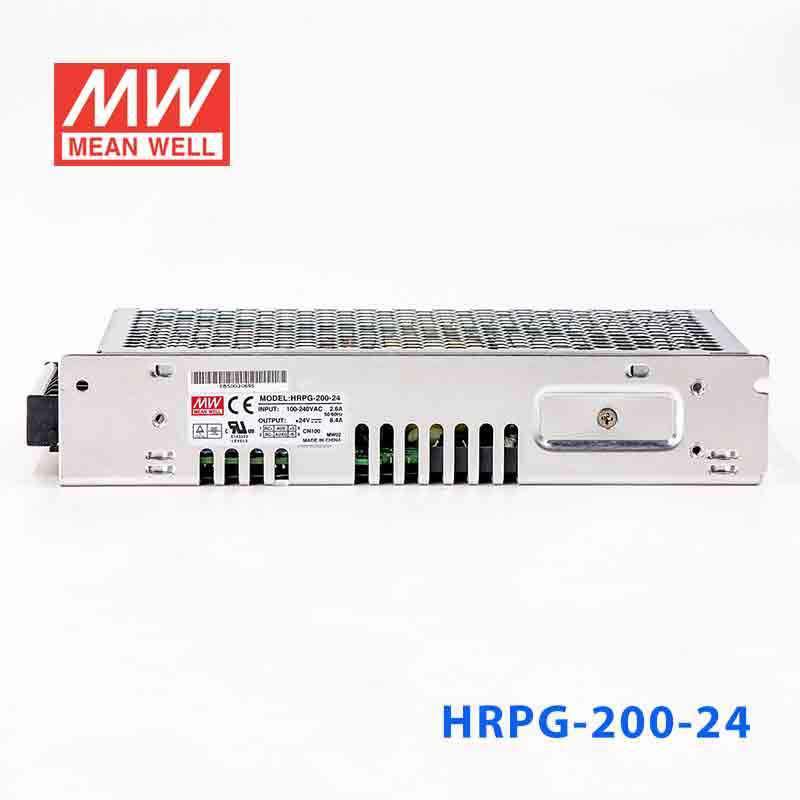

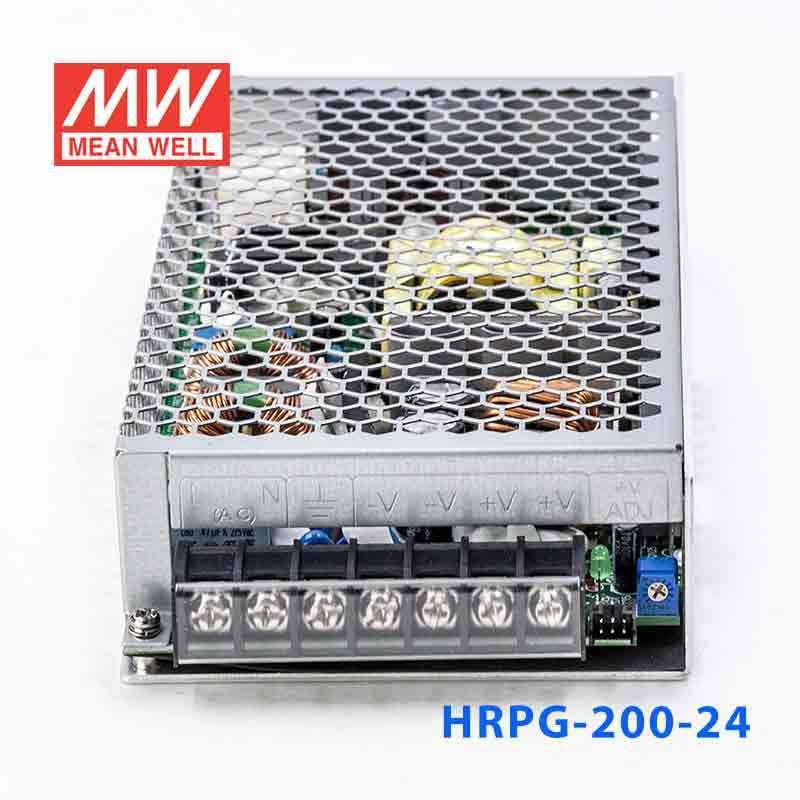

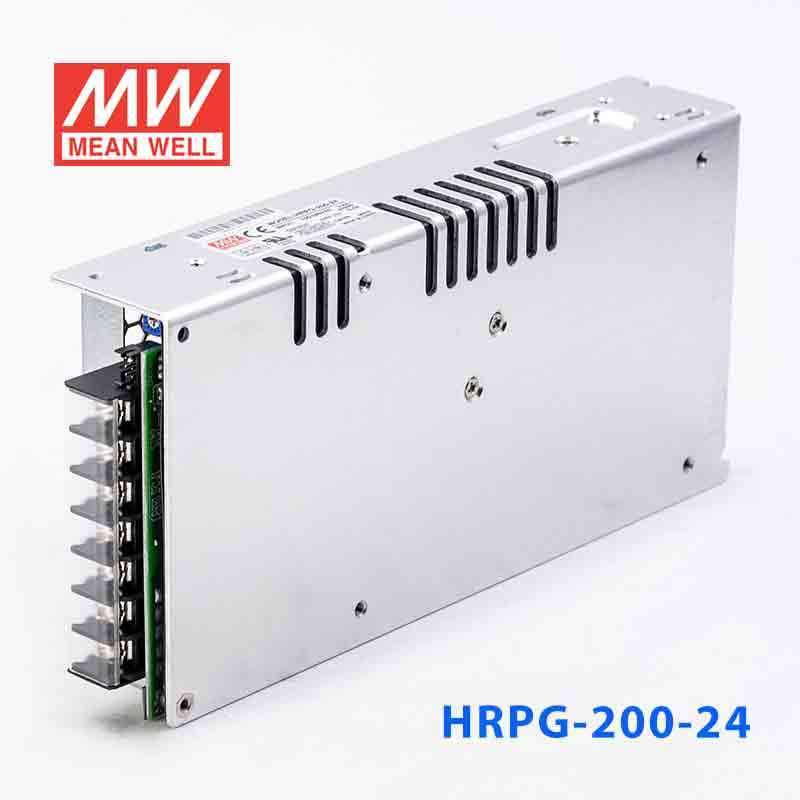

Mean Well HRPG-200-24 Power Supply 201.6W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-200-24 Power Supply 201.6W 24V
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-200-24 for a 24V PLC or industrial automation system?
Yes, it is a 24V constant voltage power supply rated for 8.4A and 201.6W. That makes it suitable for 24V PLC-related equipment, industrial controls, and automation hardware that needs a regulated 24V DC supply within that capacity.
Is the HRPG-200-24 suitable for 24V sensors, actuators, or HMI-related equipment?
It can power 24V industrial devices that are designed to run from a constant voltage source and whose combined demand stays within 8.4A and 201.6W. This is the common use profile for many 24V control-system loads in factories and machine panels.
Can this model be used in a compact 24V control cabinet?
Yes, the 1U low-profile design and 199.0 x 98.0 x 38.0 mm dimensions make it practical for space-constrained cabinets or rack-style equipment. It is best matched to 24V DC loads rather than equipment that requires another nominal voltage.
What are the main differences between the 24V HRPG models?
The 24V family includes HRPG-150-24 at 156W and 6.5A, HRPG-200-24 at 201.6W and 8.4A, HRPG-300-24 at 336W and 14A, HRPG-450-24 at 451.2W and 18.8A, HRPG-600-24 at 648W and 27A, HRPG-1000-24 at 1008W and 42A, and HRPG-1000N3-24 at 1000W and 42A. The key differences are available wattage and current at the same 24V output.
Can the HRPG-200-24 handle cold or hot operating areas, and is it outdoor rated?
The published operating temperature range is -40°C to +70°C, so it is designed for broad industrial temperature conditions. No IP rating is shown in the provided specs, so it should be treated as a supply for protected locations unless it is placed in a suitable enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-200-7.5 Power Supply 200.3W 7.5V | 200.3W | 7.5V | 26.7A | Indoor | $81.81 | View |
| Mean Well HRPG-200-5 Power Supply 175W 5V | 175W | 5V | 35A | Indoor | $81.29 | View |
| Mean Well HRPG-200-48 Power Supply 206.4W 48V | 206.4W | 48V | 4.3A | Indoor | $81.81 | View |
| Mean Well HRPG-200-36 Power Supply 205.2W 36V | 205.2W | 36V | 5.7A | Indoor | $81.81 | View |
| Mean Well HRPG-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | Indoor | $81.81 | View |
| Mean Well HRPG-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | Indoor | $81.81 | View |
| Mean Well HRPG-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | Indoor | $81.81 | View |
