Mean Well HRPG-200-3.3 Power Supply 132W 3.3V
Notify me when it's back in stock
Your order will be processed within 24 hours

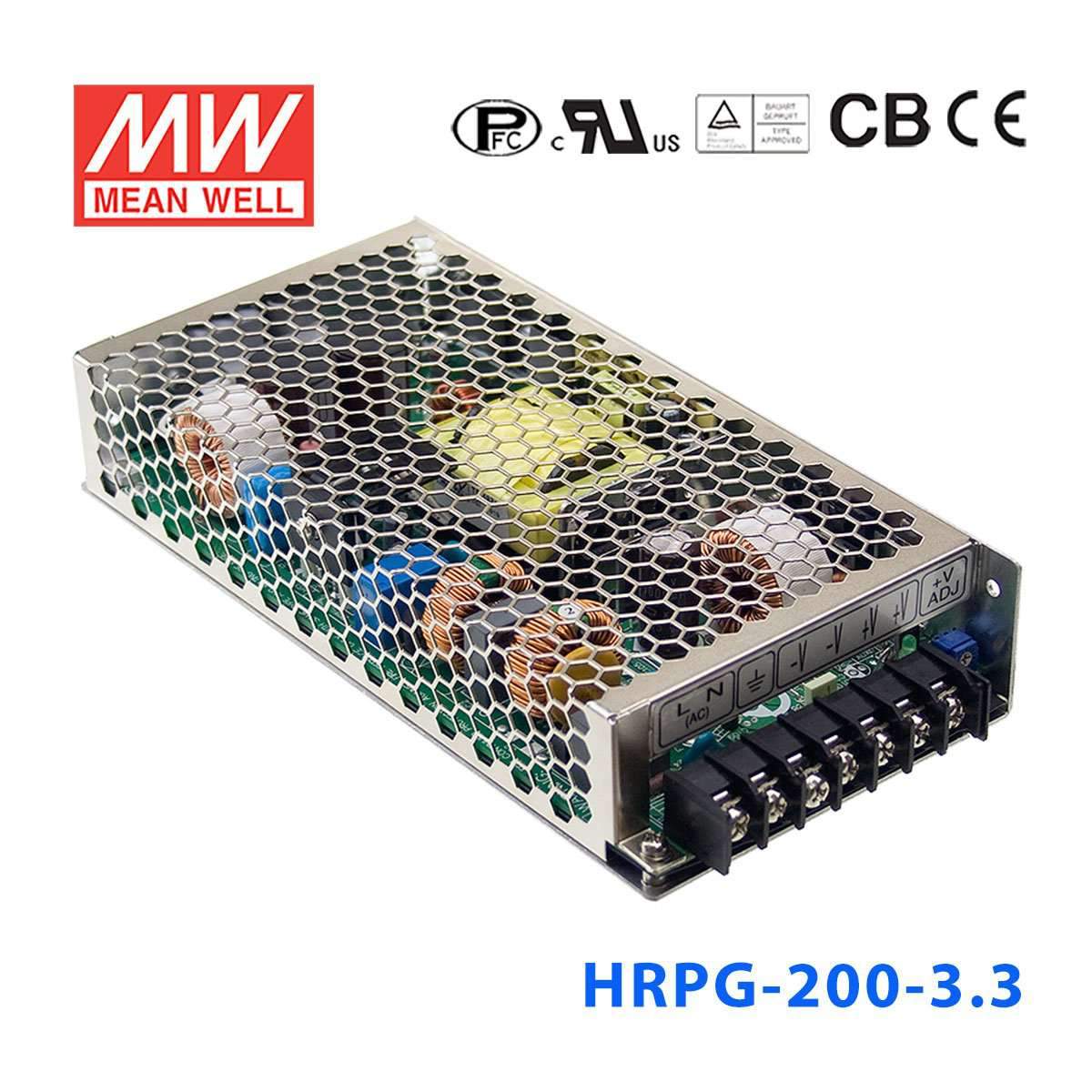

Mean Well HRPG-200-3.3 Power Supply 132W 3.3V
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating132 Watt
-
Output Voltage3.3 Volt
-
Rated Current40 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-200-3.3 for 3.3V embedded boards or digital logic systems?
Yes, it is a constant voltage 3.3V power supply rated for up to 40A and 132W. That makes it suitable for 3.3V embedded electronics, digital logic platforms, or industrial controller boards that need a high-current 3.3V rail.
Is the HRPG-200-3.3 suitable for FPGA, processor, or communications hardware that runs on 3.3V?
It can be a fit when the equipment specifically requires a regulated 3.3V DC input and the total load stays within 40A and 132W. The constant voltage output is intended for electronics that expect a fixed 3.3V supply rather than a higher-voltage bus.
Can this 3.3V model support high-current industrial electronics in a compact enclosure?
Yes, its 40A output capacity is useful for higher-current 3.3V systems, and the 1U low-profile housing is only 199.0 x 98.0 x 38.0 mm. That combination fits compact industrial or embedded assemblies that still need substantial current at 3.3V.
How does the HRPG-200-3.3 compare with other 3.3V models in the HRPG line?
The 3.3V options scale from HRPG-150-3.3 at 99W and 30A, to HRPG-200-3.3 at 132W and 40A, to HRPG-300-3.3 at 198W and 60A, to HRPG-450-3.3 at 297W and 90A, and to HRPG-600-3.3 at 396W and 120A. All are 3.3V constant voltage supplies, with output capacity being the main difference.
Is the HRPG-200-3.3 suitable for outdoor use or wide-temperature industrial environments?
Its operating temperature range is -40°C to +70°C, which supports use across a wide span of industrial ambient conditions. No IP rating is listed in the provided specifications, so direct outdoor exposure should not be assumed without additional protection.
