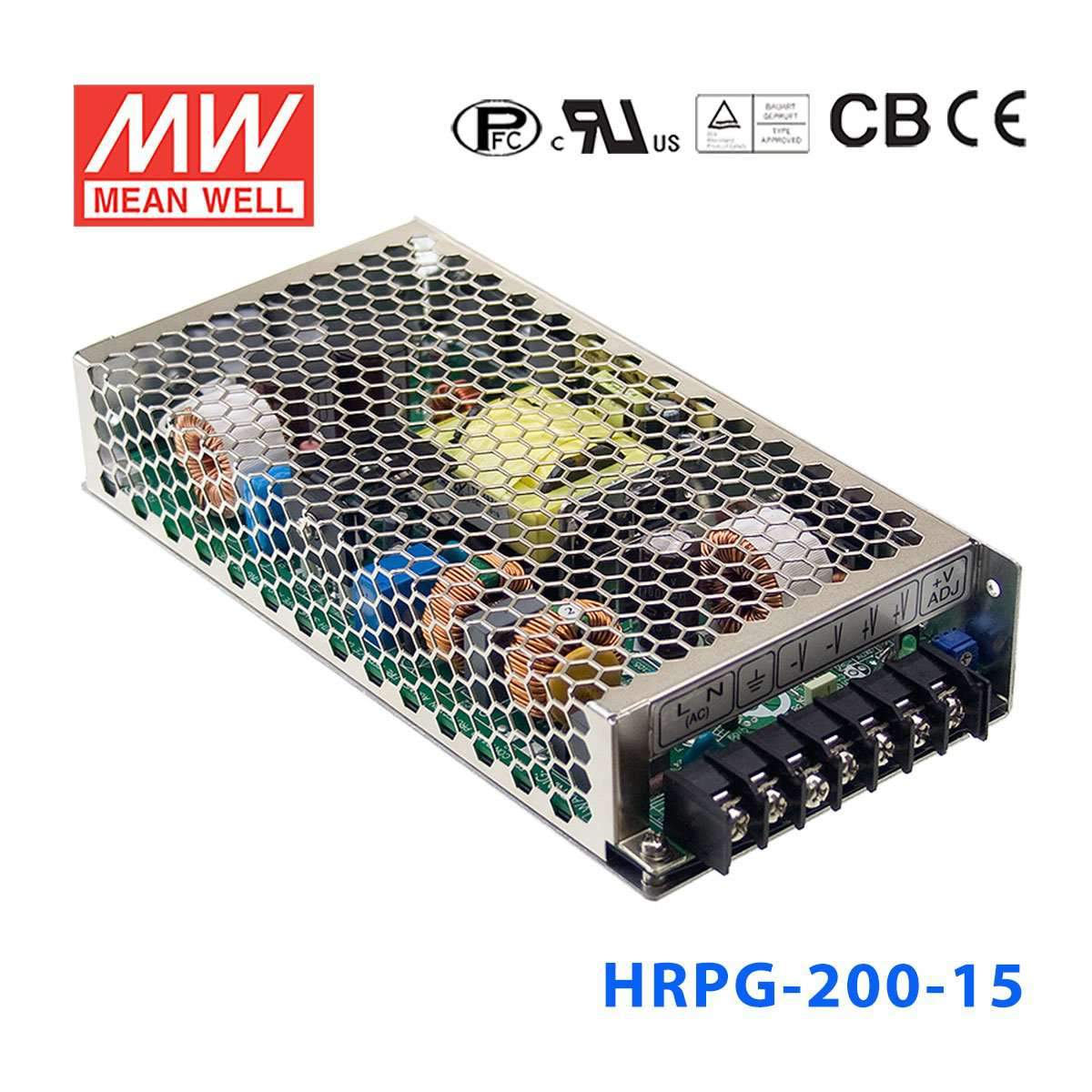

Mean Well HRPG-200-15 Power Supply 201W 15V
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating201 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-200-15 for 15V analog control or instrumentation equipment?
Yes, it is a 15V constant voltage supply rated for 13.4A and 201W. That makes it suitable for 15V instrumentation, analog control assemblies, or embedded industrial electronics that require a regulated 15V DC source within that load range.
Is the HRPG-200-15 suitable for a 15V automation subsystem inside a machine cabinet?
It can be a fit for 15V automation subsystems when the equipment is designed for constant 15V DC input. The 199.0 x 98.0 x 38.0 mm low-profile form factor also helps in tighter cabinet layouts.
Can this 15V model support higher-current embedded electronics or control boards?
Yes, compared with smaller 15V units, this model provides 13.4A at 15V for a total of 201W. That gives more headroom for 15V control boards, industrial electronics, or test fixtures that need more current than entry-level 15V supplies.
How does the HRPG-200-15 compare with other 15V HRPG power supplies?
In the 15V range, HRPG-150-15 is 150W at 10A, HRPG-200-15 is 201W at 13.4A, HRPG-300-15 is 330W at 22A, HRPG-450-15 is 450W at 30A, HRPG-600-15 is 645W at 43A, and HRPG-1000-15 is 960W at 64A. The output voltage stays at 15V while wattage and current increase across the series.
Is the HRPG-200-15 rated for outdoor use or wide-temperature operation?
The operating temperature range is -40°C to +70°C, which supports use in a wide range of indoor industrial conditions. No IP rating is listed in the provided data, so direct outdoor exposure should not be assumed without an external enclosure.
