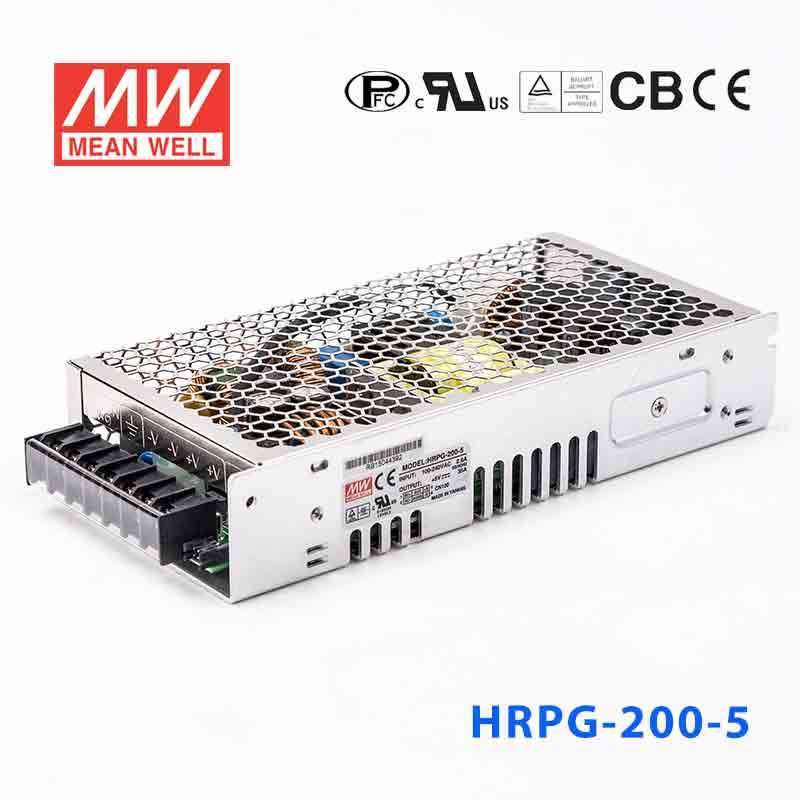

Mean Well HRPG-200-5 Power Supply 175W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-200-5 Power Supply 175W 5V
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating175 Watt
-
Output Voltage5 Volt
-
Rated Current35 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-200-5 for a 5V industrial controller or logic-heavy system?
Yes, this model supplies a constant 5V output with up to 35A available. Its total output is 175W, so it fits 5V DC industrial or embedded loads within that current and power range.
Is the HRPG-200-5 suitable for powering multiple 5V embedded boards from one supply?
It can be a good fit when the combined 5V load stays at or below 35A and 175W. That makes it suitable for centralized 5V DC distribution inside embedded or automation equipment.
Can this 5V power supply run high-current digital electronics in an equipment cabinet?
It is designed for constant voltage 5V output and provides substantially more current than low-power 5V supplies, at 35A. For cabinet-based digital or control electronics, the key requirement is keeping total demand within 175W.
Is the HRPG-200-5 appropriate for compact 1U chassis designs?
Yes, it has a 1U low profile design and measures 199.0 x 98.0 x 38.0 mm. That supports use in low-height systems needing a high-current 5V rail.
Can the HRPG-200-5 be used outdoors or in low and high ambient temperatures?
Its operating temperature range is -40C to +70C, so the temperature specification covers both cold and hot environments. An IP rating is not listed in the provided data, so outdoor suitability is not verified by these specs alone.
How does the HRPG-200-5 compare with other 5V models in the HRPG series?
The listed 5V siblings are HRPG-150-5 at 130W and 26A, HRPG-200-5 at 175W and 35A, HRPG-300-5 at 300W and 60A, HRPG-450-5 at 450W and 90A, and HRPG-600-5 at 600W and 120A. This model sits above the 150W version and below the 300W version in 5V output capacity.
