Mean Well

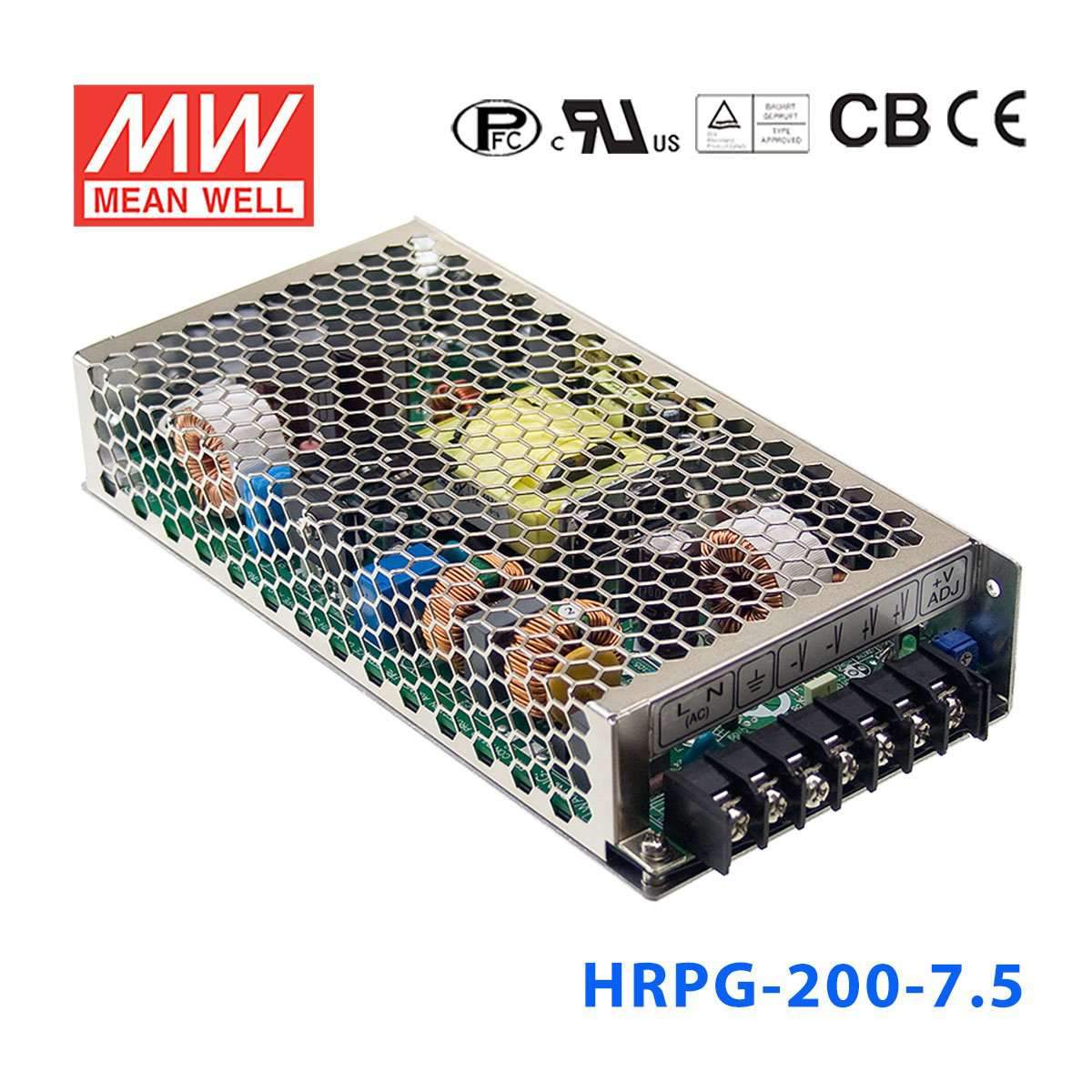

Mean Well HRPG-200-7.5 Power Supply 200.3W 7.5V 26.7A

built-in active PFCPF > 0.95high efficiency up to 90%no load power consumption <0.5W~0.75W1U low profile
SKU HRPG-200-7.5
$81.81 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

HRPG-200-7.5 is the 7.5V output model of this series: rated current 26.7A, rated power 200.3W, typical efficiency 86%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • No load power consumption<0.5W (Note.6)
  • 5 years warranty

Specifications

HRPG-200-7.5Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
7.5V
RATED CURRENT
26.7A
CURRENT RANGE
0 ~ 26.7A
RATED POWER
200.3W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
6.8 ~ 9V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY
5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL
RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1612.1K hrs min. Telcordia SR-332 (Bellcore) ; 189.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 0.8V or short.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRPG-200-7.5 Mechanical Specification
Mechanical Specification
HRPG-200-7.5 Block Diagram
Block Diagram
HRPG-200-7.5 Derating Curve
Derating Curve
HRPG-200-7.5 Function Manual (2)
Function Manual (2)
HRPG-200-7.5 2.Remote Sense
2.Remote Sense

Downloads

FAQ

Can I use the HRPG-200-7.5 for a 7.5V industrial or embedded DC load?

Yes, it provides a constant voltage 7.5V output rated for 26.7A. Total available power is 200.3W, so the connected 7.5V load must stay within those limits.

Is the HRPG-200-7.5 suitable for control electronics that need more current than a small 7.5V supply can provide?

This model is designed for higher-current 7.5V applications, with up to 26.7A available. It works for centralized 7.5V DC power in industrial or embedded equipment up to 200.3W.

Can this supply support a 7.5V automation subsystem inside a machine cabinet?

It can, provided the subsystem needs a constant 7.5V output and does not exceed 26.7A or 200.3W. The wide 85-264VAC input also supports use across different AC input conditions.

Is the HRPG-200-7.5 a fit for low-profile equipment layouts?

The sheet does not specify a 1U or low-profile rating; the unit measures 199 x 98 x 38 mm (L x W x H). Check that the 38 mm height fits where a 7.5V, 200.3W source is needed.

Can I use this 7.5V power supply outdoors or in wide ambient temperature ranges?

The operating temperature rating is -40C to +70C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specifications, so outdoor exposure suitability is not confirmed here.
