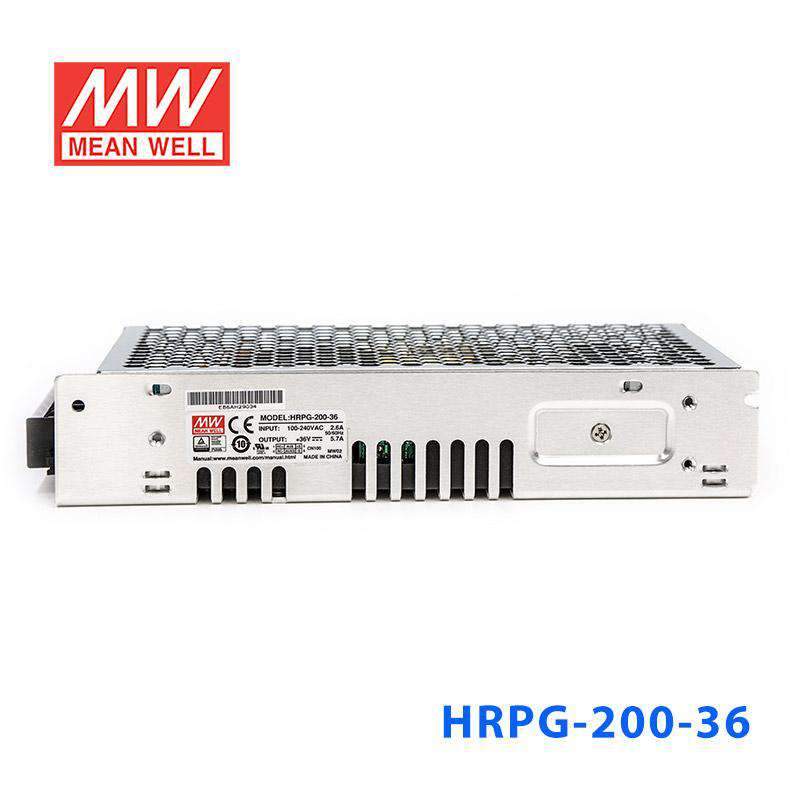

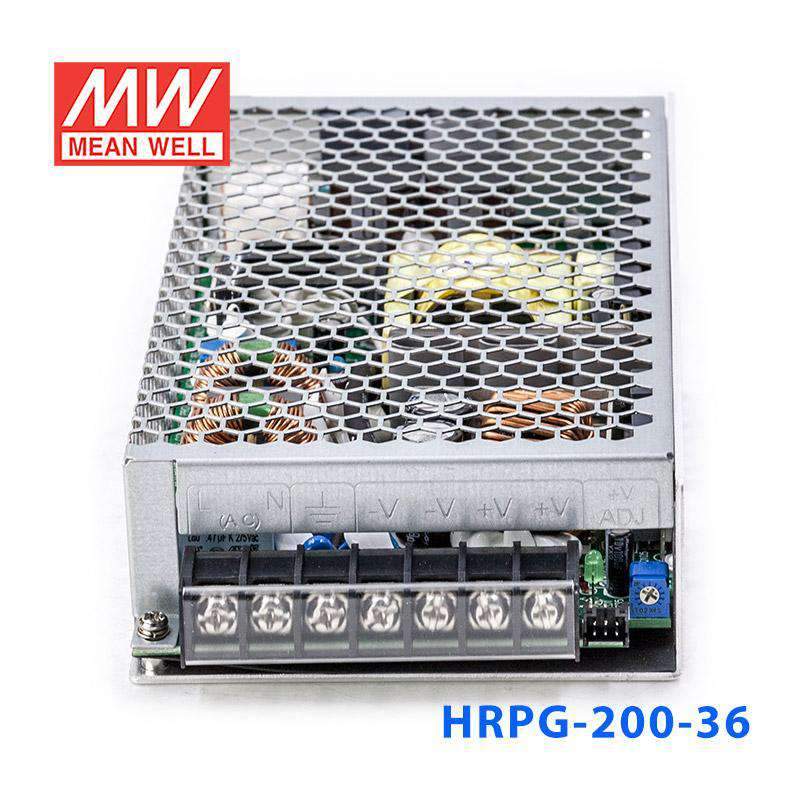

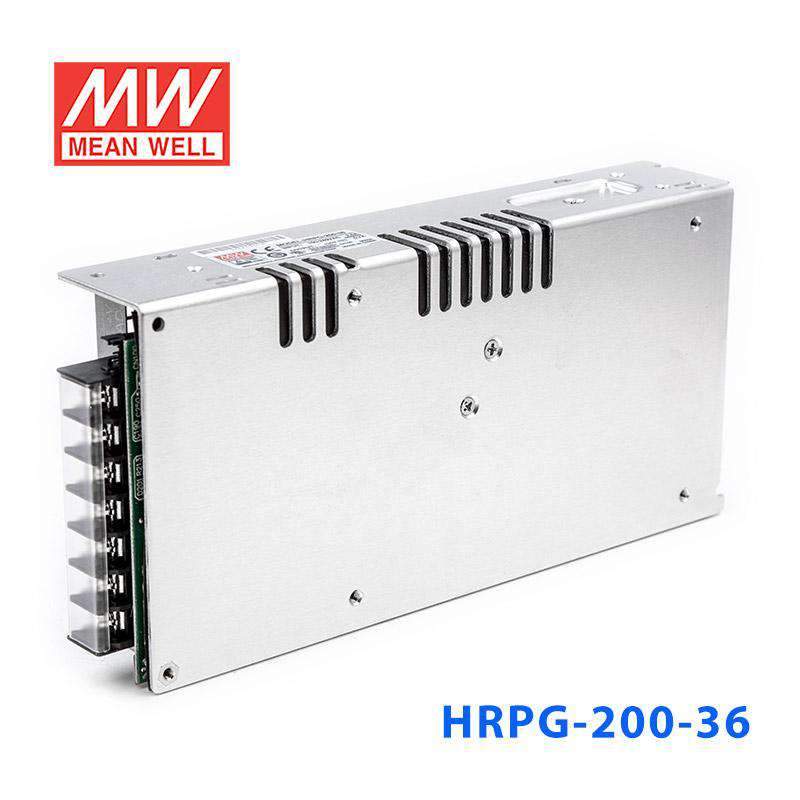

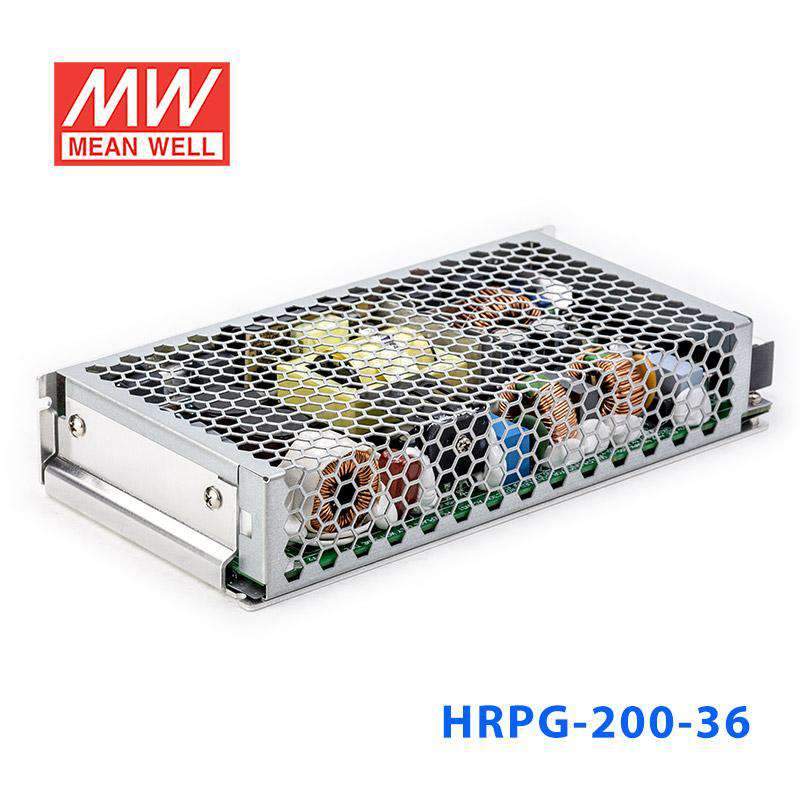

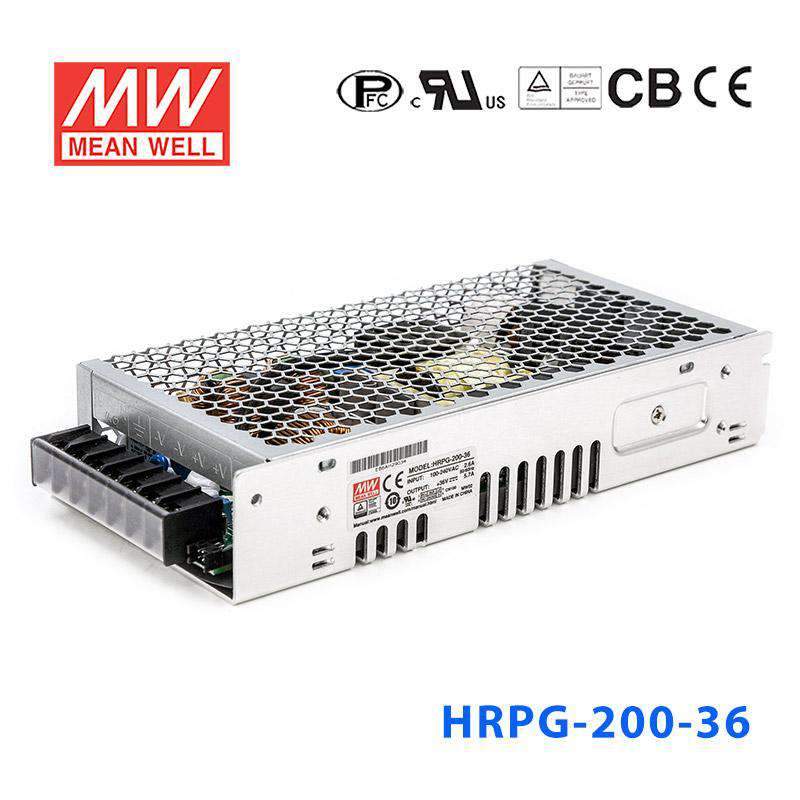

Mean Well HRPG-200-36 Power Supply 205.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HRPG-200-36 Power Supply 205.2W 36V
The HRPG-200 is a 200W Mean Well power converter (input range: 120~370VDC).
Key Features
- ✓ Input voltage range: 120~370VDC
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368- EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHRPG Series
-
Power Rating205.2 Watt
-
Output Voltage36 Volt
-
Rated Current5.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the HRPG-200-36 for a 36V industrial control or automation load?
Yes, this model is a constant voltage 36V power supply rated for 5.7A and 205.2W. It fits 36V DC industrial or automation equipment that stays within those output limits.
Is the HRPG-200-36 suitable for embedded systems that need a 36V DC rail?
It can be used for embedded or control systems that require a regulated 36V constant voltage output. The available output is 5.7A, with total power up to 205.2W.
Can this 36V power supply support smaller 36V motion or actuator subsystems?
It is suited to 36V DC subsystems where the combined load does not exceed 5.7A or 205.2W. That makes it a fit for compact industrial or automation assemblies built around a 36V bus.
Is the HRPG-200-36 a good fit for 1U equipment or shallow power compartments?
This unit has a 1U low profile form factor and measures 199.0 x 98.0 x 38.0 mm. That makes it easier to use where height is limited but a 36V, 205.2W supply is required.
Can I use the HRPG-200-36 outdoors or in harsh temperature conditions?
The specified operating temperature range is -40C to +70C, so the temperature rating is broad for demanding environments. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not confirmed here.
How does the HRPG-200-36 compare with the other HRPG 36V models?
Within the listed siblings, the 36V options are HRPG-150-36 at 154.8W and 4.3A, HRPG-200-36 at 205.2W and 5.7A, HRPG-300-36 at 324W and 9A, HRPG-450-36 at 450W and 12.5A, and HRPG-600-36 at 630W and 17.5A. This model sits between the 150W and 300W versions in available 36V output capacity.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HRPG-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HRPG-200-7.5 Power Supply 200.3W 7.5V | 200.3W | 7.5V | 26.7A | Indoor | $81.81 | View |
| Mean Well HRPG-200-5 Power Supply 175W 5V | 175W | 5V | 35A | Indoor | $81.29 | View |
| Mean Well HRPG-200-48 Power Supply 206.4W 48V | 206.4W | 48V | 4.3A | Indoor | $81.81 | View |
| Mean Well HRPG-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | Indoor | $81.81 | View |
| Mean Well HRPG-200-24 Power Supply 201.6W 24V | 201.6W | 24V | 8.4A | Indoor | $81.82 | View |
| Mean Well HRPG-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | Indoor | $81.81 | View |
| Mean Well HRPG-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | Indoor | $81.81 | View |
