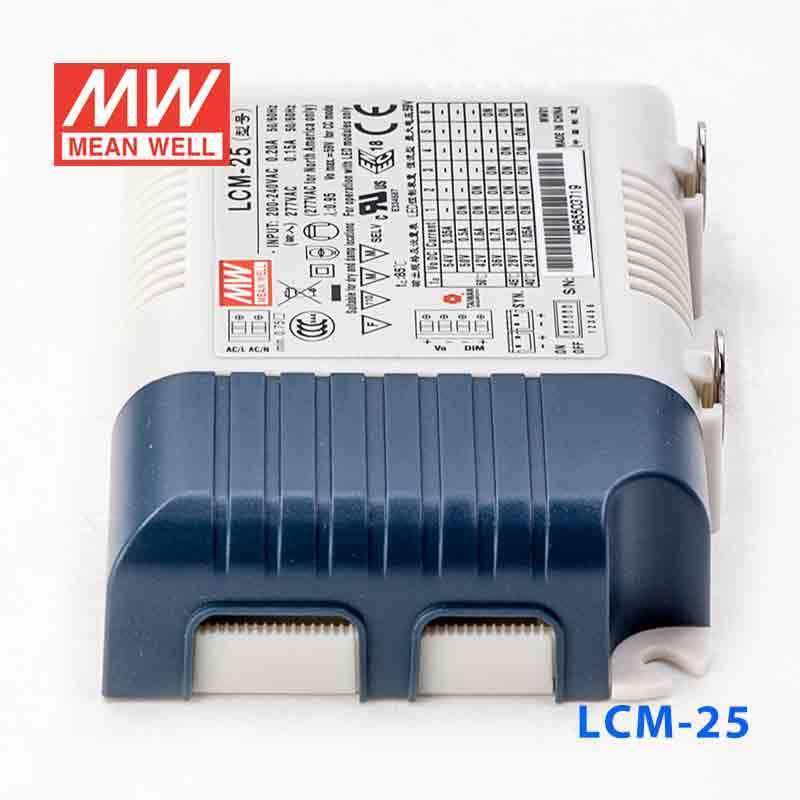

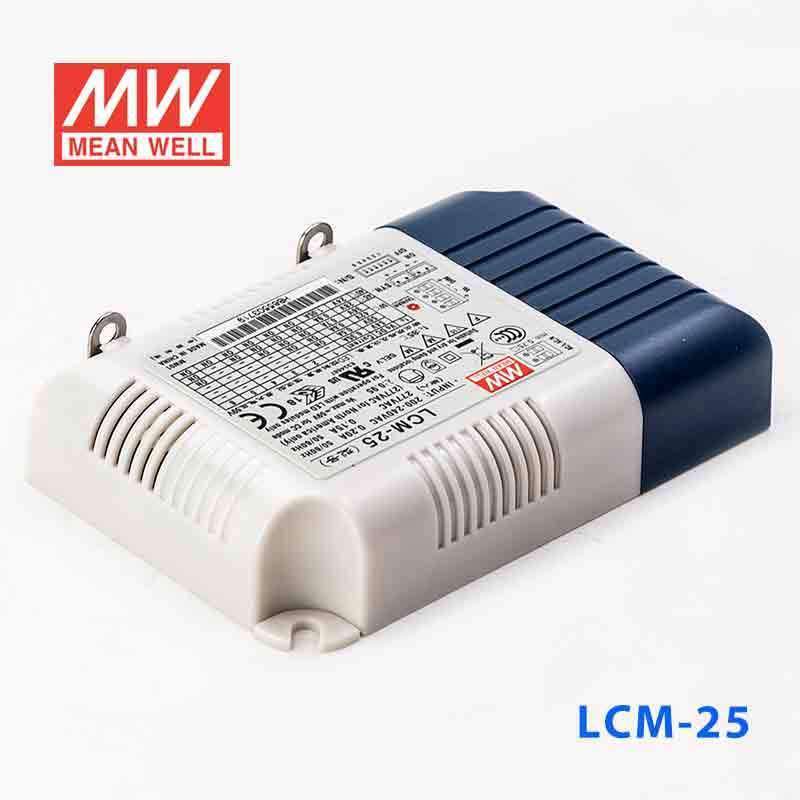

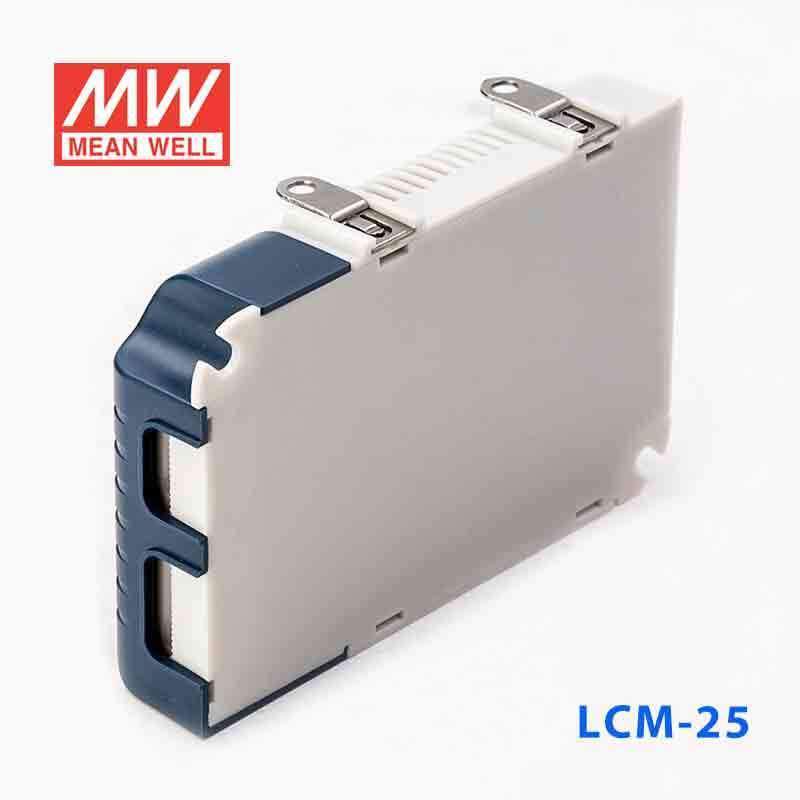

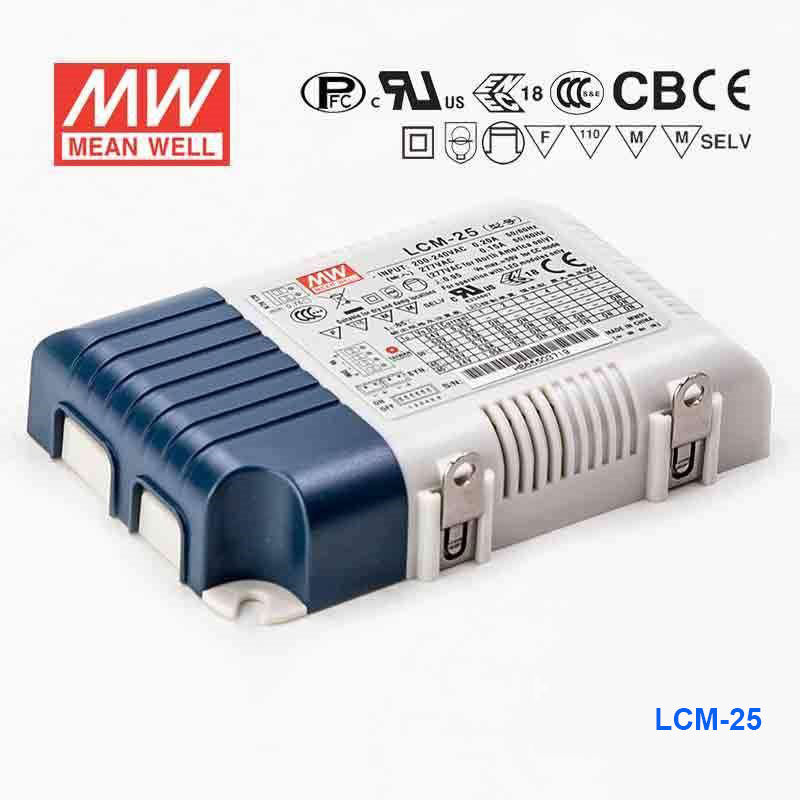

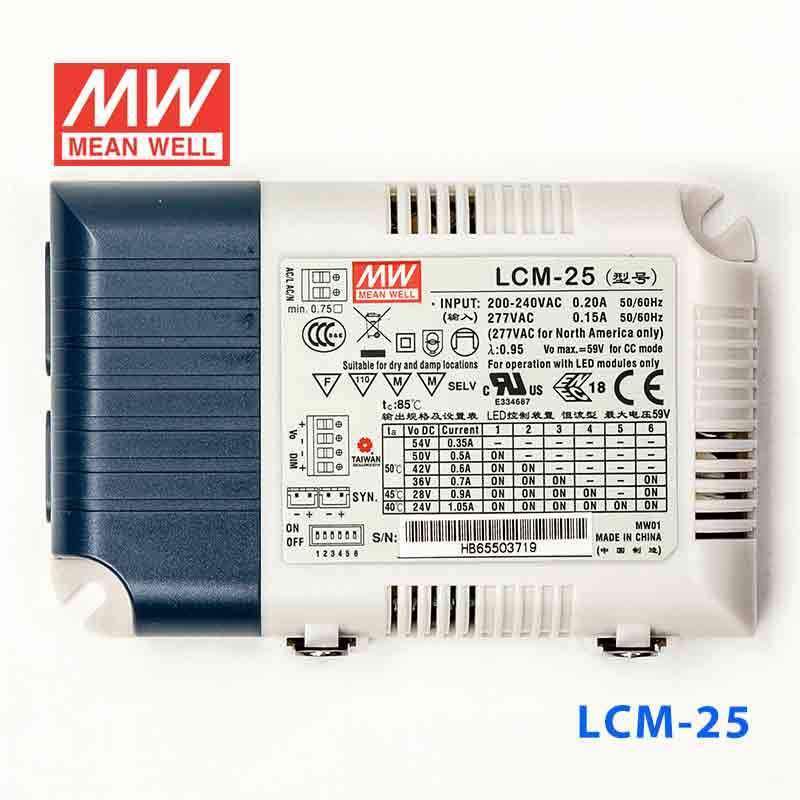

Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-25 Power Supply 25W 350mA 500mA 600mA 700mA(default) ...
The LCM-25 is a 25.2W Mean Well AC-DC constant current LED driver (input: 180~277VAC, output: 41V, operating temperature: -30~+85°C).
Key Features
- ✓ Input voltage: 180~277VAC
- ✓ Output voltage (max): 41V
- ✓ Rated output current: 700mA
- ✓ Selectable output current via dip switch
- ✓ 3-in-1 dimming (0–10V / PWM / resistance)
- ✓ Flicker-free output
- ✓ Class II design — no earth connection required
- ✓ Operating temperature: -30~+85°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesLCM Series
-
Power Rating25.2 Watt
-
Output Voltage41 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~277V
-
No of Output6
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.13 in
-
Width2.68 in
-
Height0.91 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
Can I use the LCM-25 for LED downlights?
Yes, the LCM-25 is a constant current LED driver rated at 25.2W with a 700mA default output current. Its 6-36V constant current range makes it suitable for LED downlights that are designed for constant current operation within that range, and it also includes built-in 3 in 1 dimming with flicker-free performance.
Is the LCM-25 suitable for signage LED modules?
It can be used for signage modules if the modules require constant current rather than constant voltage. This driver provides 700mA by default across a 6-36V CC range, so the total forward voltage of the module string needs to stay inside that range and within the 25.2W rating.
Can the LCM-25 run a small LED array?
Yes, it is intended for constant current LED loads such as small LED arrays when the array fits a 6-36V CC range at 700mA default. The 25.2W limit sets the driver size, so it is better suited to smaller arrays than higher-power assemblies.
How do I know if the LCM-25 is compatible with my LEDs?
Check that your LEDs require a constant current driver and that their combined forward voltage falls within the 6-36V constant current output range. The number of LEDs depends on each LED's forward voltage, so this should not be sized like a constant voltage supply.
What is the difference between the LCM-25 and other LCM series siblings?
Within the 25W class, LCM-25, LCM-25BLE, LCM-25DA, and LCM-25KN are listed at 25.2W with 700A and a 6-36V CC range, while LCM-25DA2 is listed at 25W with 0.7mA and a 277-180V CC range. Higher-output siblings include LCM-40, LCM-40BLE, LCM-40DA, and LCM-40KN at 42W with 700A and 2-57V; LCM-40DA2 at 40W with 0.6mA and 295-180V; LCM-40TW at 40W with 0.7mA and 20-50V; LCM-40U at 35W with 700A and 2-50V; LCM-60, LCM-60BLE, LCM-60DA, and LCM-60KN at 60.3W with 700A and 2-86V; LCM-60DA2 at 6W with 0.9mA and 295-180V; and LCM-60U at 50.4W with 700A and 2-72V.
