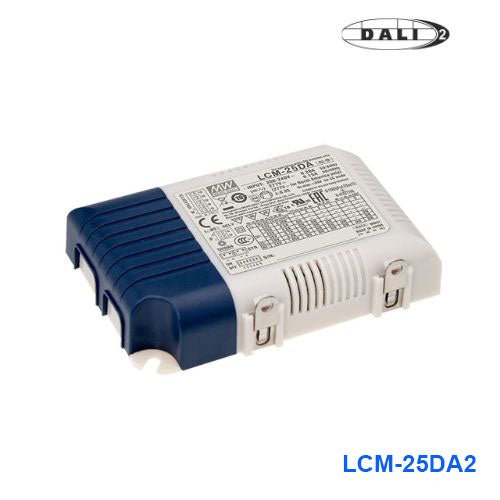

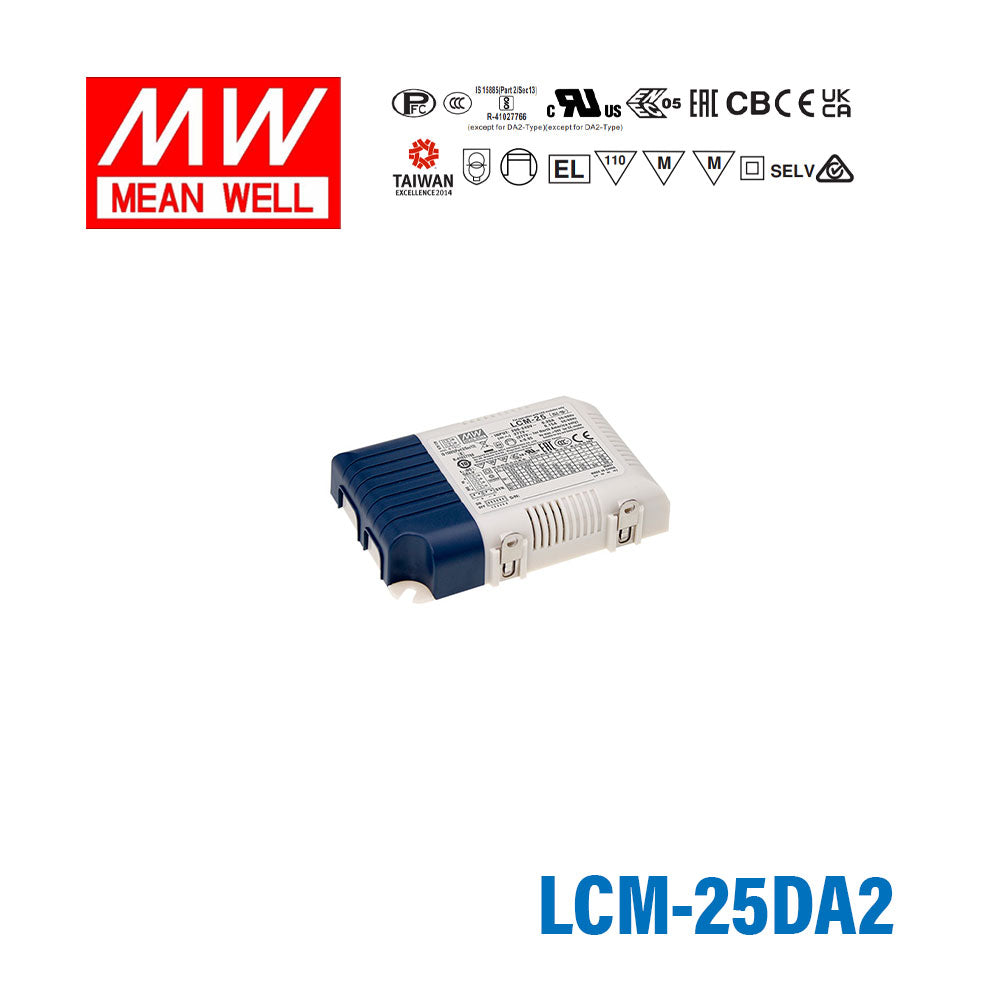

Mean Well LCM-25DA2 Power Supply 25W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI2 and Push
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-25DA2 Power Supply 25W 350mA 500mA 600mA 700mA(defaul...
Description
Description
The LCM is a 25W Mean Well DIN rail power converter with a 105mm profile (input range: 6~54V, operating temperature: -30~+85℃).
Key Features
- ✓ 105mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 6~54V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1, BIS IS15885, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLCM Series
-
Power Rating25 Watt
-
Output Voltage41 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~277V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.13 in
-
Width2.68 in
-
Height0.91 in
-
Weight0.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LCM-25DA2 for indoor LED downlights?
This model is listed as IP20 Indoor, so it is intended for indoor use rather than exposed wet or dusty locations. It is also a constant current LED driver with a 25W rating, making it relevant for LED downlights designed around a constant current input.
Is the LCM-25DA2 suitable for indoor signage LED modules?
It is suited to indoor applications where the LED modules require constant current operation, since the product is rated IP20 Indoor. Because it is not a constant voltage supply, module compatibility depends on the driver's stated constant current output characteristics rather than a fixed DC voltage output.
Can the LCM-25DA2 be used with a small indoor LED array?
Yes, it is aimed at constant current LED loads and is rated at 25W for indoor use. For a small LED array, the load still needs to be matched to the driver's constant current characteristics instead of treating it as a constant voltage power supply.
How should I check LED compatibility for the LCM-25DA2?
Use the listed constant current output information and verify that the LED load is designed for constant current operation. The product data lists a CC voltage range of 277-180V, and the number of LEDs depends on each LED's forward voltage rather than on a fixed LED count.
Is the LCM-25DA2 for outdoor environments?
No, the listed protection level is IP20 Indoor. It is better suited to indoor fixtures and protected spaces, while its operating temperature range is -30°C to +85°C.
