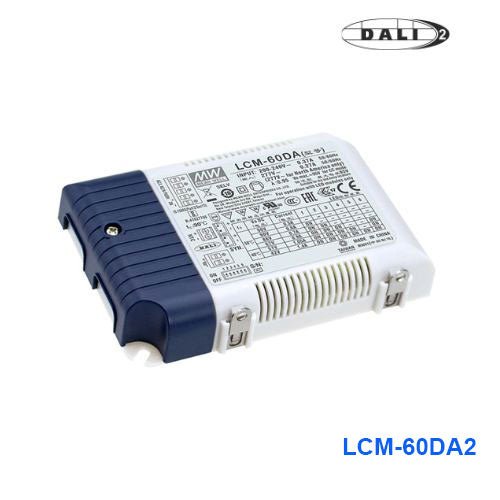

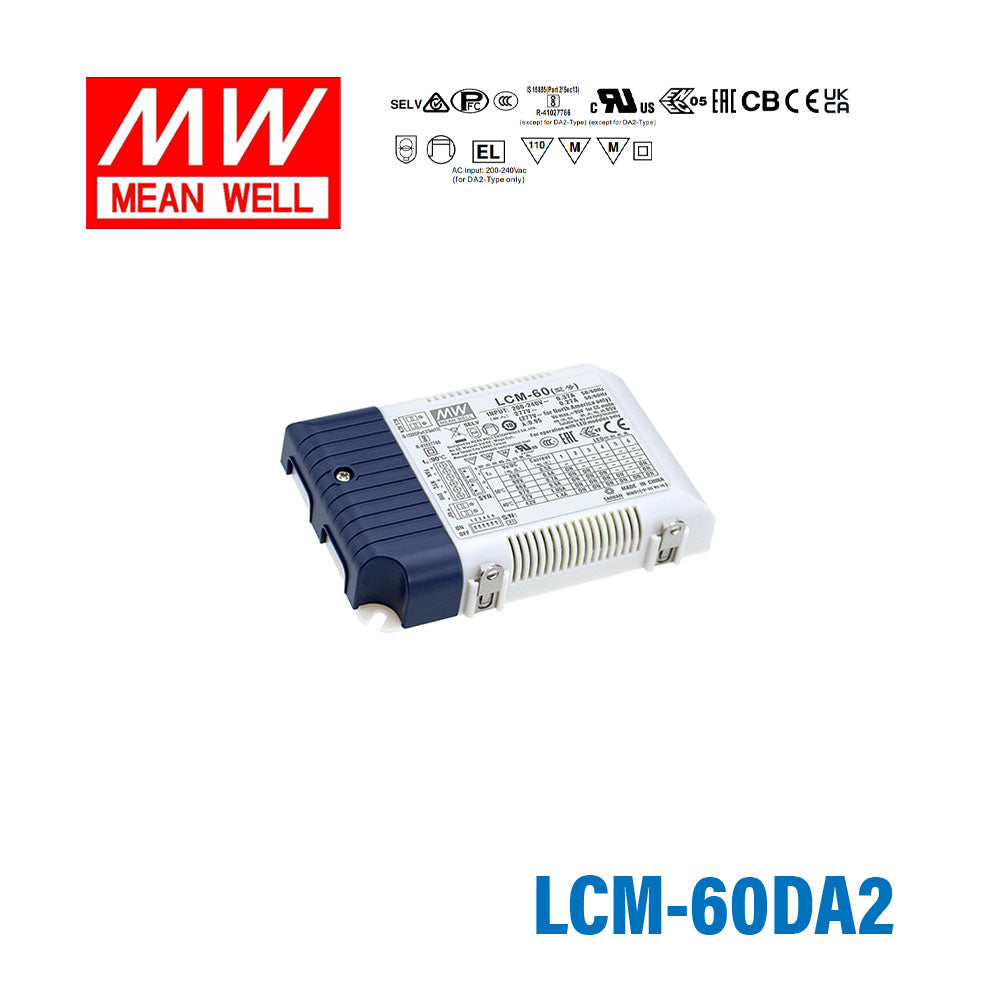

Mean Well LCM-60DA2 Power Supply 60W 500mA 600mA 700mA(default) 900mA 1050mA 1400mA - DALI2 and Push
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LCM-60DA2 Power Supply 60W 500mA 600mA 700mA(default) 900...
Description
Description
The LCM is a 25W Mean Well DIN rail power converter with a 105mm profile (input range: 6~54V, operating temperature: -30~+85℃).
Key Features
- ✓ 105mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 6~54V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1, BIS IS15885, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLCM Series
-
Power Rating6 Watt
-
Output Voltage95 Volt
-
Rated Current0.9 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-

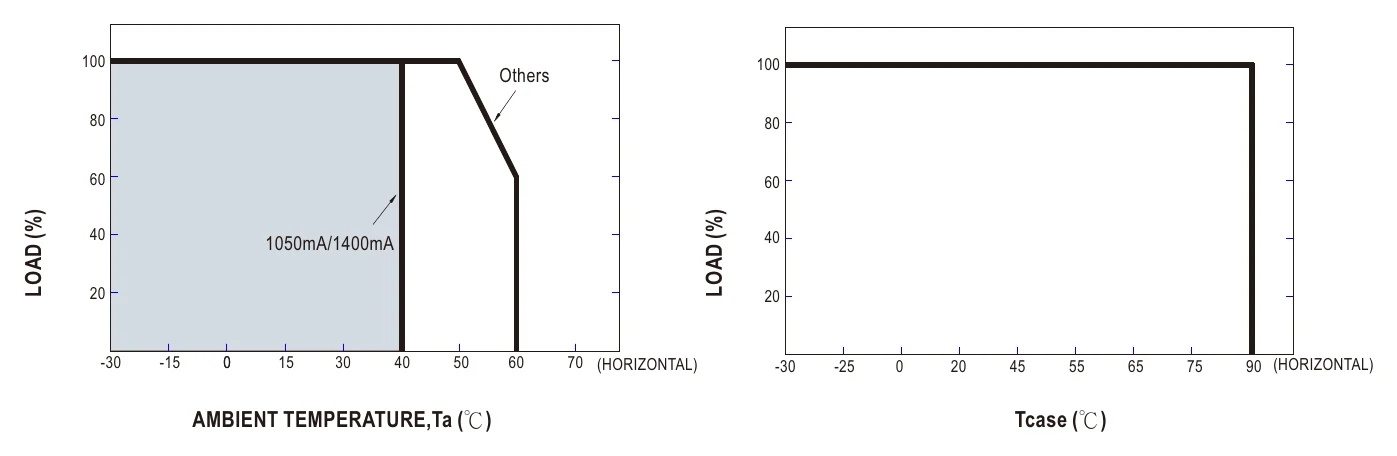

Operating Temperature-30°C~90°C
-
Warranty3 Year
-
Length4.86 in
-
Width3.21 in
-
Height0.91 in
-
Weight0.53 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LCM-60DA2 for indoor LED downlights with dimming control?

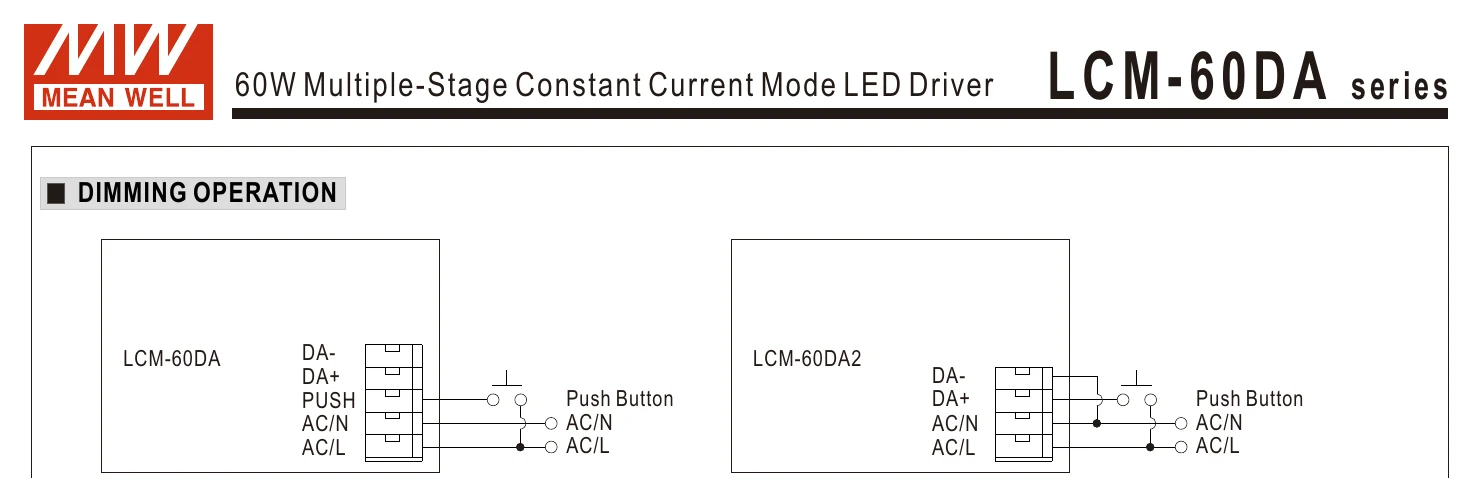

Yes, this model is an indoor IP20 constant current LED driver intended for LED lighting loads rather than constant voltage products. The listed features include DALI2 and push dimming, plus selectable output current levels from 500mA to 1400mA with 700mA as the default.
Is the LCM-60DA2 suitable for indoor illuminated signage modules?
It can be used for indoor signage modules when the module requires a constant current driver and not a constant voltage power supply. Because it is rated IP20 Indoor, it should be used in dry indoor environments only.
Can this driver run a small indoor LED array?
Yes, it is intended for constant current LED loads and can be used with a small indoor LED array when the array matches the selected current setting and the driver's listed voltage limits. The product is flicker-free and uses constant current operation rather than constant voltage output.
Will the LCM-60DA2 work for architectural LED downlight projects in enclosed indoor fixtures?
It is designed for indoor use with an IP20 rating and operates from 180-295VAC input, so it fits enclosed indoor lighting projects that need a constant current driver. The operating temperature range is -30°C to +90°C, which supports demanding indoor fixture conditions when the overall fixture design stays within that range.
How do I know if my LED load is compatible with the LCM-60DA2?
This is a constant current driver, so compatibility depends on matching the LED load to the listed constant current output and the CC output voltage range of 295-180V. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this model.
How does the LCM-60DA2 compare with other LCM series drivers?
Within the provided sibling list, LCM-25, LCM-25BLE, LCM-25DA, and LCM-25KN are 25.2W with 6-36V CC range; LCM-25DA2 is 25W with 277-180V CC range; LCM-40, LCM-40BLE, LCM-40DA, and LCM-40KN are 42W with 2-57V CC range; LCM-40DA2 is 40W with 295-180V CC range; LCM-40TW is 40W with 20-50V CC range; LCM-40U is 35W with 2-50V CC range; LCM-60, LCM-60BLE, LCM-60DA, and LCM-60KN are 60.3W with 2-86V CC range; and LCM-60U and LCM-60UDA are 50.4W series options with 2-72V listed for LCM-60U. The LCM-60DA2 in the provided specs is listed at 6W with a 295-180V CC range and DALI2/push control.
