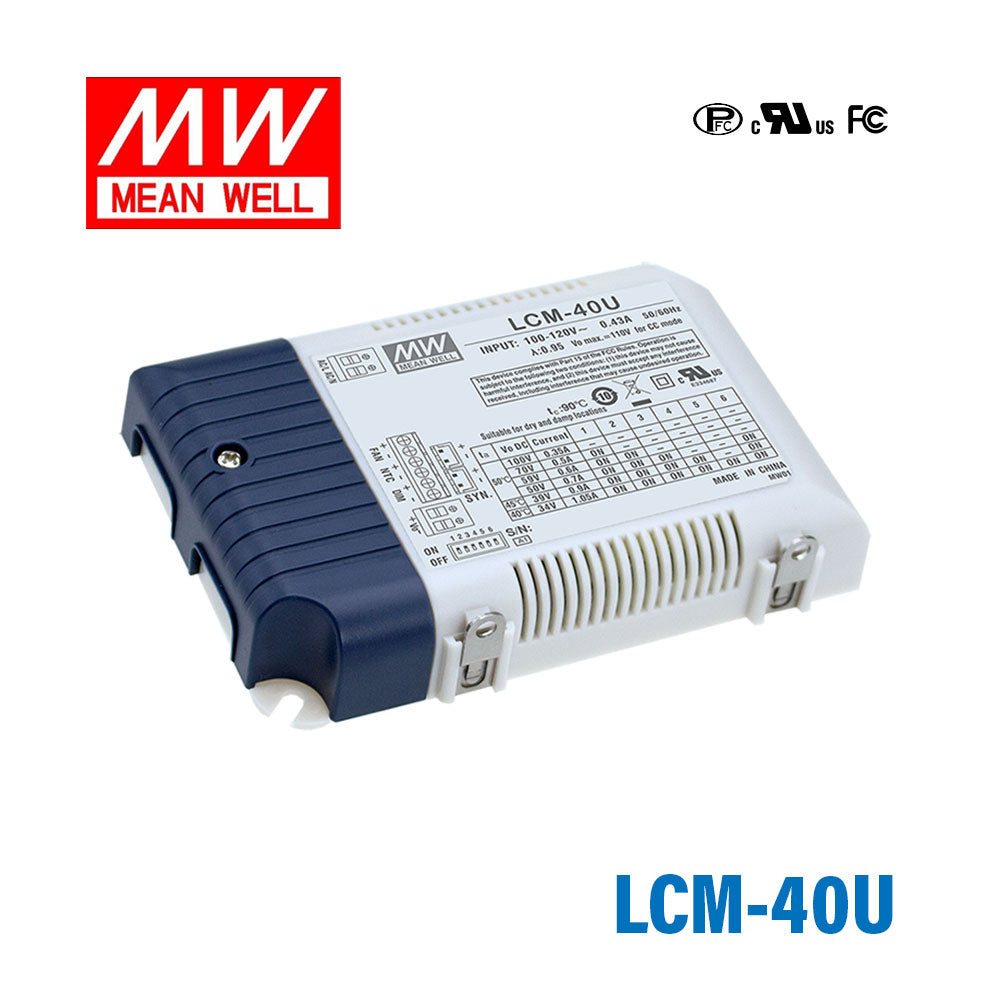

Mean Well LCM-40U Power Supply 35W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI and Push

Name: Mean Well LCM-40U Power Supply 35W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI and Push
Brand: Mean Well
SKU: LCM-40U
Price: 31.29 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGDALI

SKU LCM-40U

$31.29 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LCM-40U is the model of this series: rated power 35W, typical efficiency 87.5%.

LCM-40U series is a 35W LED AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch. LCM-40U operates from 90～132VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the efficiency up to 87.5%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. LCM-40U is equipped with various functions, such as the dimming function and synchronization, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
3 years warranty

Specifications

LCM-40USpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
RATED POWER: 35W
DC VOLTAGE RANGE: 2 ~ 100V (350mA) / 2 ~ 70V (500mA) / 2 ~ 59V (600mA) / 2 ~ 50V (700mA) / 2 ~ 39V (900mA) / 2 ~ 34V (1050mA)
OPEN CIRCUIT VOLTAGE (max.): 110V (350mA ~ 600mA) / 65V (700mA ~ 1050mA)
CURRENT RIPPLE^Note.6: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA
SETUP TIME^Note.3: 1000ms / 115VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 132VAC 127 ~ 186VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.4: 87.5%
AC CURRENT (Typ.): 0.43A/115VAC
INRUSH CURRENT (Typ.): COLD START 15A(twidth=270μs measured at 50% Ipeak) at 115VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 22 units (circuit breaker of type B) / 38 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT: <0.5mA / 120VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 130V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION" section
TEMP. COMPENSATION: By external NTC, please refer to "TEMPERATURE COMPENSATION OPERATION"section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 approved
DALI STANDARDS: Comply with IEC62386-101, 102, 207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC part 15 Subpart B

OTHERS

MTBF: 2649.1K hrs min. Telcordia SR-332 (Bellcore) ; 273.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.28Kg ; 54pcs/16Kg/1.12CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 115VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 500mA/70V output set by DIP switch.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. It is measured 50%~100% of maximum voltage under rated power delivery.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LCM-40U DIMMING OPERATION — DIMMING OPERATION

LCM-40U TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

LCM-40U OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

LCM-40U STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LCM-40U TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LCM-40U MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Downloads

Datasheet1

LCM-40U datasheetLCM-40U(EO)-spec.pdf · 2024-10-16 edition PDF Download
