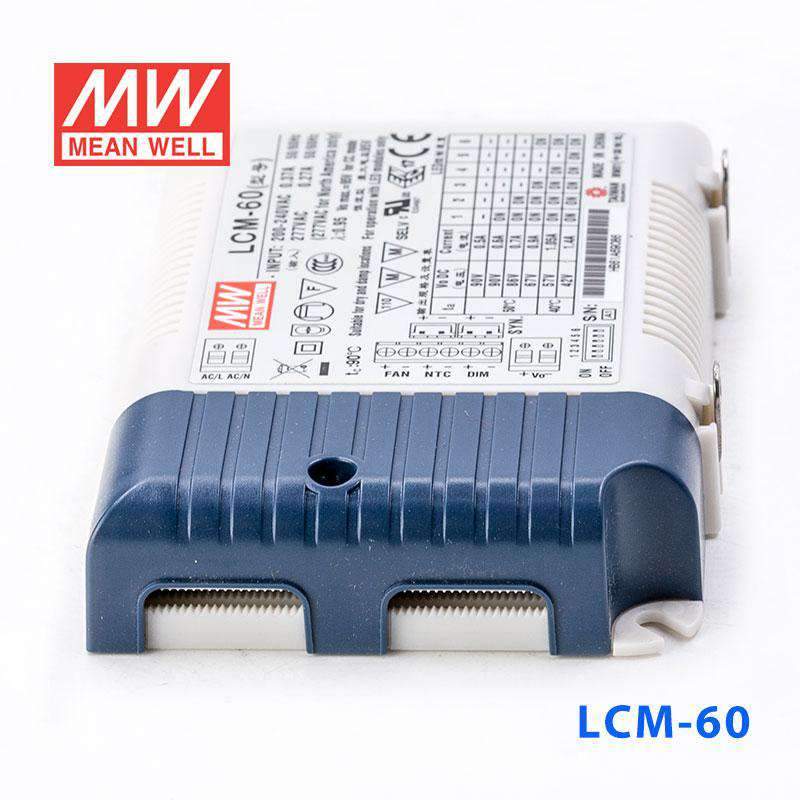

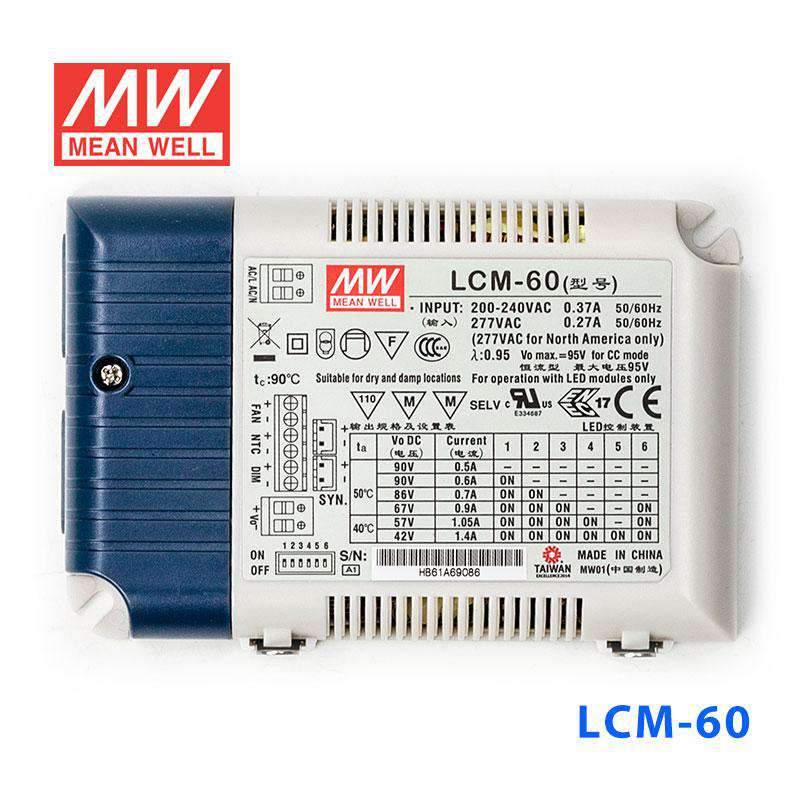

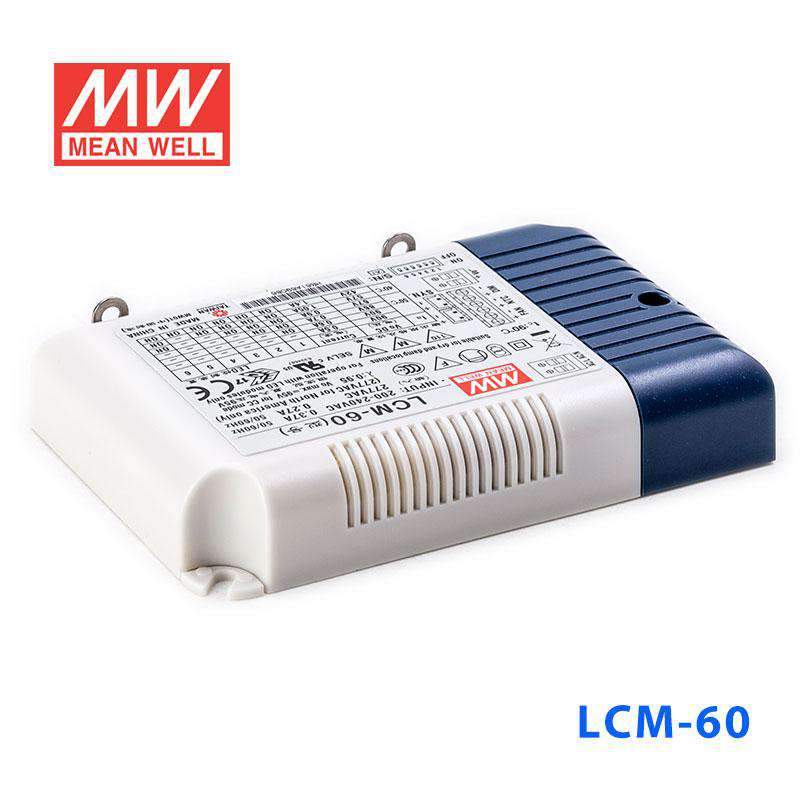

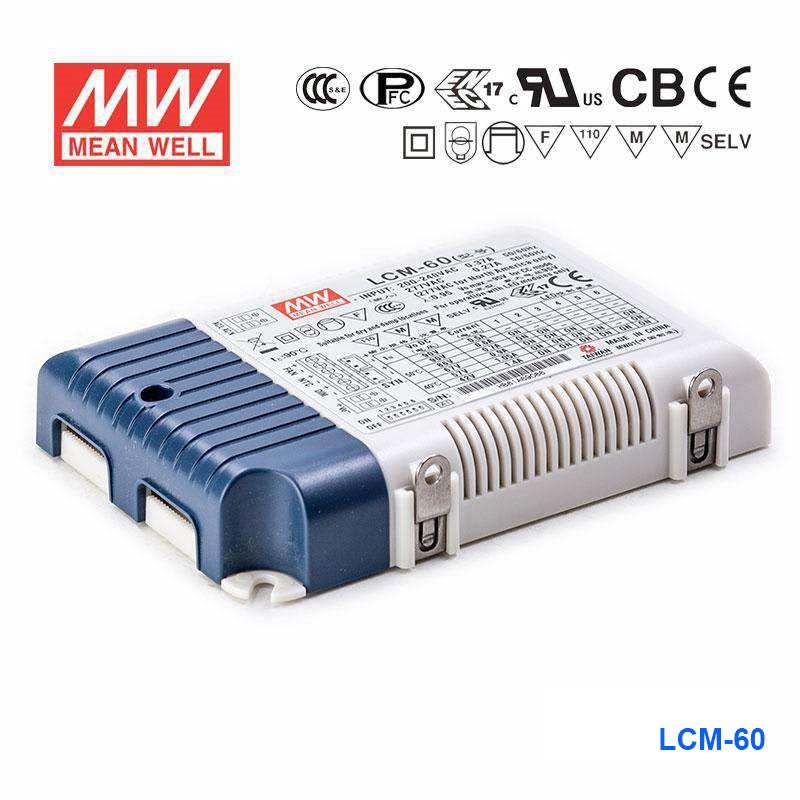

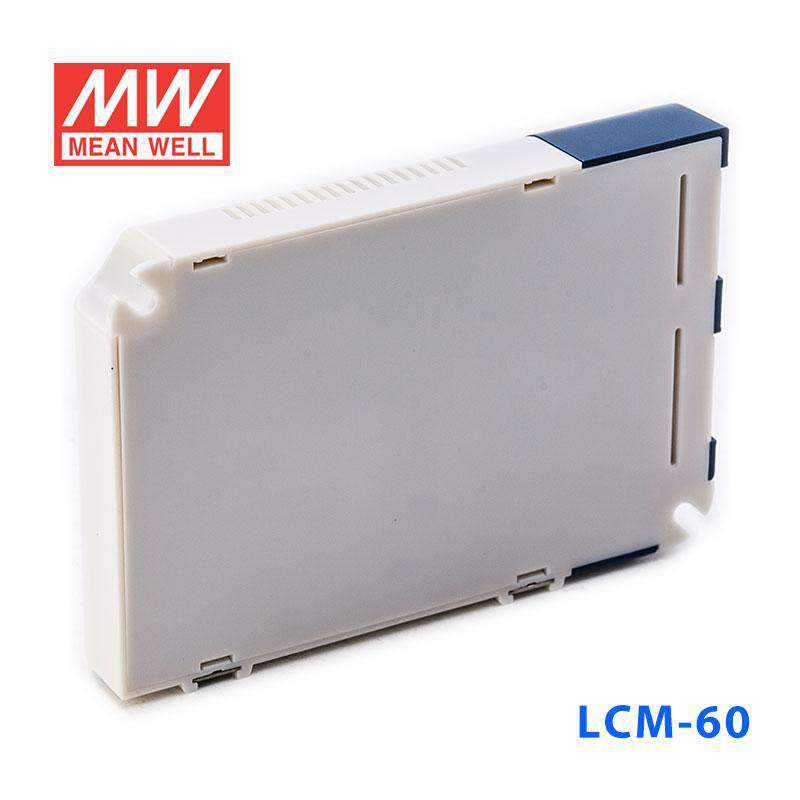

Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current

Name: Mean Well LCM-60 AC-DC Multi-Stage LED driver Constant Current
Brand: Mean Well
SKU: LCM-60
Price: 34.69 USD
Availability: InStock

selectable output current using dip switch, flicker-free, Class II without FG, built-in 3 in 1 dimming

SKU:

LCM-60

Datasheet:

LCM-60 Datasheet

$34.69 USD

Shipping calculated at checkout.

Your order will be processed within 24 hours

Description

Features

Constant current mode output with multiple levels selectable by dip switch

Plastic housing with class II design

Built-in active PFC function

Standby power consumption <1W

Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units

Optional: Wireless LED driver with integrated EnOcean module

3 years warranty

General Specification

AC input voltage range	180~295VAC; 254~417VDC
AC inrush current (Typ.)	COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Constant current limiting recovers automatically after the fault condition is removed
Over temperature protection	Shut down o/p voltage, re-power on to recover
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards	UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	123.581.523mm
Packing	54pcs/15Kg

Specifications

Brand

Mean Well
Series

LCM Series
Power Rating

60.3 Watt
Output Voltage

102 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
No of Output

6
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~90°C
Warranty

3 Year
Length

4.86 in
Width

3.21 in
Height

0.91 in
Weight

0.53 lb

File Downloads

Specification Sheet

Spec Sheet (LCM-60)(EN)

Certificates

Test Reports

Test Report (LCM-60)(EN)

Catalog

Mean Well LED Driver Catalog

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Constant current mode output with multiple levels selectable by dip switch

Plastic housing with class II design

Built-in active PFC function

Standby power consumption <1W

Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units

Optional: Wireless LED driver with integrated EnOcean module

3 years warranty

General Specification

AC input voltage range

180~295VAC; 254~417VDC

AC inrush current (Typ.)

COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Short circuit protection

Constant current limiting recovers automatically after the fault condition is removed

Over temperature protection

Shut down o/p voltage, re-power on to recover

Setup time

500ms / 230VAC

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved

EMC standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020

Dimension (LxWxH)(mm)

123.5*81.5*23mm

Packing

54pcs/15Kg
