Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

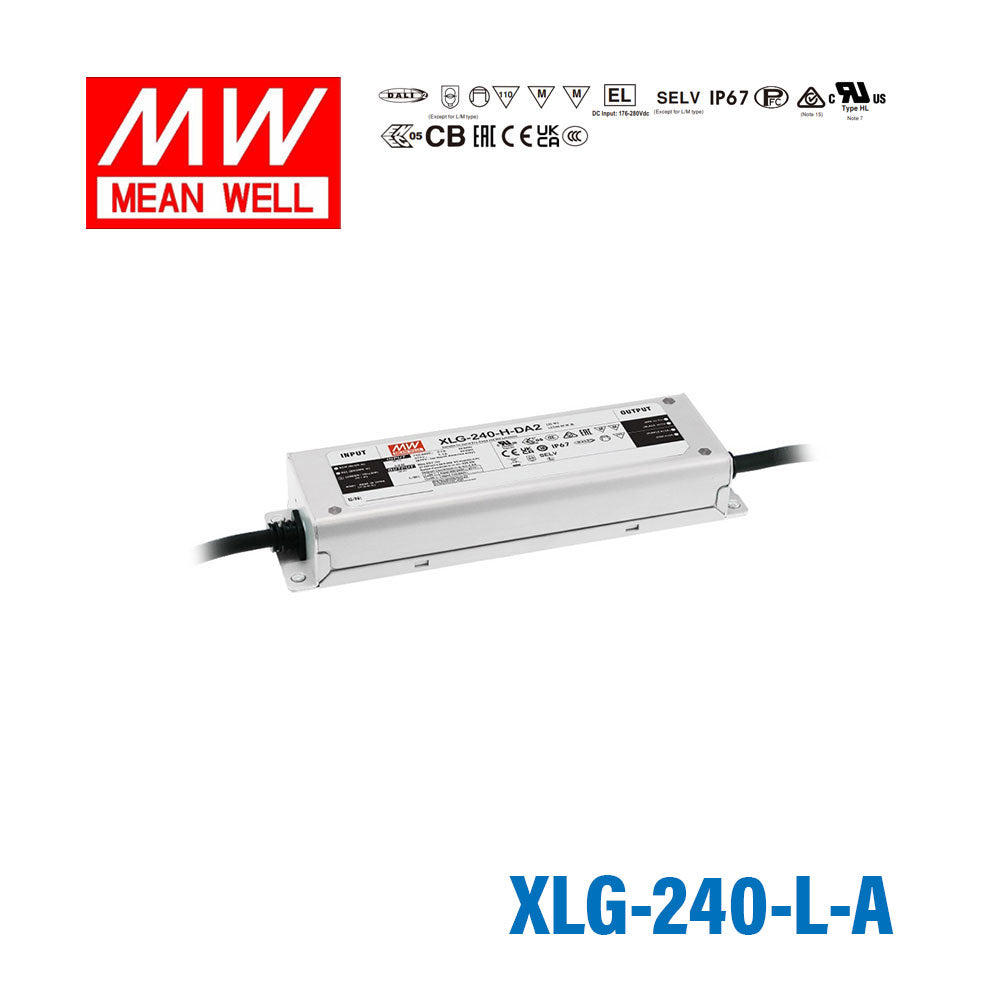

Mean Well XLG-240-L-A Power Supply 240W 700mA - Adjustable

Name: Mean Well XLG-240-L-A Power Supply 240W 700mA - Adjustable
Brand: Mean Well
SKU: XLG-240-L-A
Price: 43.93 USD
Availability: InStock

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU:

XLG-240-L-A

$43.93 USD

Shipping calculated at checkout.

Select model — 9 in this family

XLG-240-L-A

XLG-25-A 700mA Adjustable In stock $22.32 USD

XLG-50-L-DA2 700mA DALI2 Dimmable Backorder $51.32 USD

XLG-75-L-DA2 700mA DALI2 Dimmable Backorder $65.94 USD

XLG-100-L-DA2 700mA DALI2 Dimmable Backorder $68.91 USD

XLG-150-L-DA2 700mA DALI2 Dimmable Backorder $76.49 USD

XLG-200-L-DA2 700mA DALI2 Dimmable Backorder $89.02 USD

XLG-240-L-A 700mA Adjustable Low stock $43.93 USD

XLG-240-L-AB 700mA Adjustable and Dimmable Backorder $46.77 USD

XLG-240-L-DA2 700mA DALI2 Dimmable Backorder $95.62 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

The XLG-240-L is a 240W Mean Well DIN rail power converter with a 219mm profile (input range: 100~305VAC).

Key Features

✓ 219mm width — DIN rail TS-35 compatible
✓ Input voltage range: 100~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004; IP67
✓ 3 years warranty

Brand

Mean Well
Series

XLG Series
Power Rating

239.4 Watt
Output Voltage

186 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

8.62 in
Width

2.48 in
Height

1.4 in
Weight

2.2 lb

Frequently Asked Questions

What type of LED lighting is the XLG-240-L-A designed for?

The XLG-240-L-A is a constant-current driver suited for high-voltage LED strings, such as long series-connected LED module chains used in large-format signage, tunnel lighting, or street light retrofits. Its CC voltage range of 178–342V accommodates strings that require much higher forward voltage than typical low-voltage strips.

Can the XLG-240-L-A be used in outdoor installations exposed to rain?

Yes. The IP67 waterproof rating confirms the driver is protected against dust and temporary water immersion. It is suitable for outdoor street lighting poles, tunnel fixtures, or any exterior enclosure where moisture ingress is a concern.

Is this driver compatible with LED tunnel or street lighting modules that operate above 200V?

Yes. The XLG-240-L-A supports a CC voltage range of 178–342V, which is specifically designed for high-voltage LED module strings used in tunnel lights, area lights, and other infrastructure luminaires. The output current is 0.7A at up to 239.4W.

Can I run the XLG-240-L-A from a 277V commercial supply in North America?

Yes. The driver accepts 100–305VAC input, which covers 277V single-phase circuits common in US commercial buildings. No step-down transformer is required.

How does the XLG-240-L-A differ from the XLG-240-H-A?

Both are 239W-class constant-current drivers in the same enclosure with IP67 protection. The XLG-240-L-A operates at a higher CC voltage range (178–342V) and lower output current (0.7A), targeting high-voltage LED strings. The XLG-240-H-A operates at a lower CC voltage range (27–56V) with higher output current (4.9A), targeting lower-voltage LED modules and strips.

What operating temperature range does the XLG-240-L-A support?

The driver operates from -40°C to +90°C, making it suitable for installations in very cold climates such as northern outdoor infrastructure, as well as hot environments like desert street lighting projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well XLG-240-H-A Power Supply 240W 1400mA - Adjustable	239.6W	186V	4.9A	IP67	$43.93	View
Mean Well XLG-240-48-ABV Power Supply 240W 48V 5A	240W	48V	5A	IP67	$86.26	View
Mean Well XLG-240-M-DA2 Power Supply 239.4W 1400mA - DALI2 Dimmable	239.4W	197V	1.4A	IP67	$95.62	View
Mean Well XLG-240-L-DA2 Power Supply 239.4W 700mA - DALI2 Dimmable	239.4W	380V	0.7A	IP67	$95.62	View
Mean Well XLG-240-H-DA2 Power Supply 239.6W 4900mA - DALI2 Dimmable	239.6W	65V	4.9A	IP67	$95.62	View
Mean Well XLG-240-M-AB Power Supply 240W 1400mA - Adjustable and Dimmable	239.4W	60V	1.4A	IP67	$46.77	View
Mean Well XLG-240-M-A Power Supply 240W 1400mA - Adjustable	239.4W	186V	1.4A	IP67	$43.93	View
Mean Well XLG-240-L-AB Power Supply 240W 700mA - Adjustable and Dimmable	239.4W	60V	0.7A	IP67	$46.77	View
Mean Well XLG-240-H-AB Power Supply 240W 1400mA - Adjustable and Dimmable	239.6W	60V	4.9A	IP67	$46.77	View
