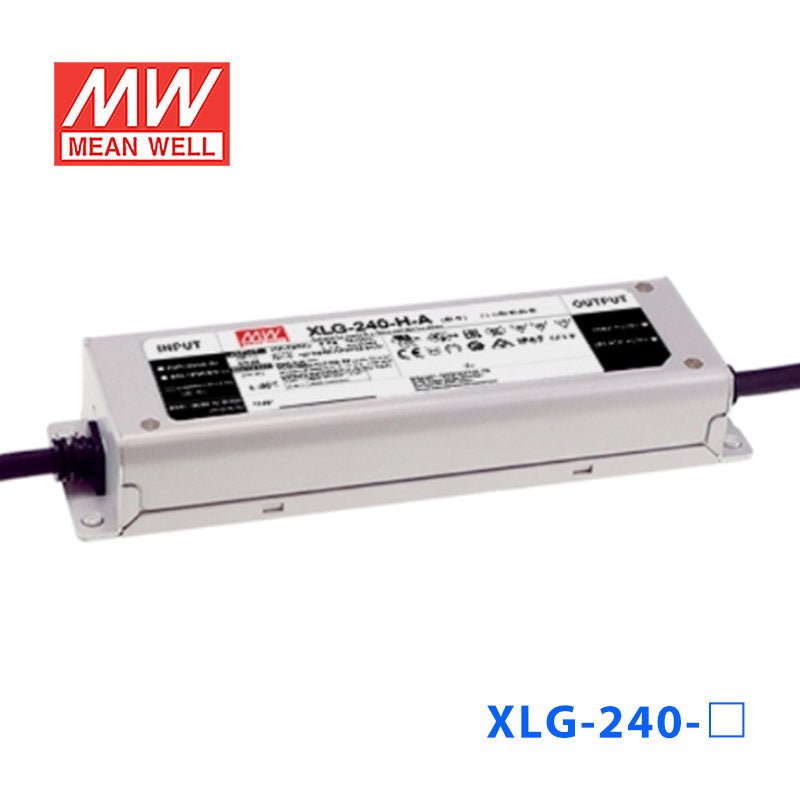

Mean Well XLG-240-H-A Power Supply 240W 1400mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-240-H-A Power Supply 240W 1400mA - Adjustable
The XLG-240-H is a 240W Mean Well power converter.
Key Features
- ✓ 3.75 KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating239.6 Watt
-
Output Voltage186 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.2 lb
::specification::
Frequently Asked Questions
Can I use the XLG-240-H-A to drive high-bay LED fixtures in a wet or outdoor environment?
Yes. The XLG-240-H-A carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and temporary water immersion. It is suitable for outdoor installations and wet-location luminaires such as canopy lights or architectural uplighting.
Is the XLG-240-H-A suitable for powering large LED signage cabinets?
Yes. Running in constant-current mode at up to 239.6W, this driver can power LED modules in large illuminated sign cabinets. The 27–56V CC voltage range accommodates many mid-voltage LED module strings used in channel letter and backlit signage.
Can I use this driver for outdoor architectural LED strip lighting on a building facade?
Yes. The IP67 rating makes the XLG-240-H-A safe in rain and outdoor conditions, and its -40°C to +90°C operating temperature range covers extreme climates. It is well suited to facade cove lighting or under-eave strip installations where the driver may be exposed to the elements.
Will the XLG-240-H-A work on both 120V and 240V mains supplies?
Yes. The driver accepts 100–305VAC input, so it operates without any switching or rewiring on standard 120V North American, 230V European, and 277V US commercial circuits. This makes it practical for international projects or multi-voltage facilities.
How many meters of LED strip can the XLG-240-H-A drive?
The driver delivers up to 239.6W. Dividing 239.6W by the rated power-per-meter of your strip gives the maximum length — for example, a 14.4 W/m strip supports roughly 16.6 m (239.6 ÷ 14.4). Always check your strip's rated power per meter and apply a 20% derating margin for thermal safety.
What is the difference between the XLG-240-H-A and the XLG-240-H-AB?
Both models are 239.6W constant-current drivers with a 27–56V CC voltage range and IP67 rating. The XLG-240-H-AB adds a dimming interface (the 'B' suffix), while the XLG-240-H-A is adjustable but not dimmable via an external signal. Choose the AB if you need 0-10V or PWM dimming control.
Can the XLG-240-H-A be installed inside an enclosed luminaire housing?
Yes. The metal case construction and -40°C to +90°C operating temperature range allow installation inside sealed or enclosed fixtures. Ensure the housing allows adequate conduction of heat away from the driver to stay within its temperature limits.
