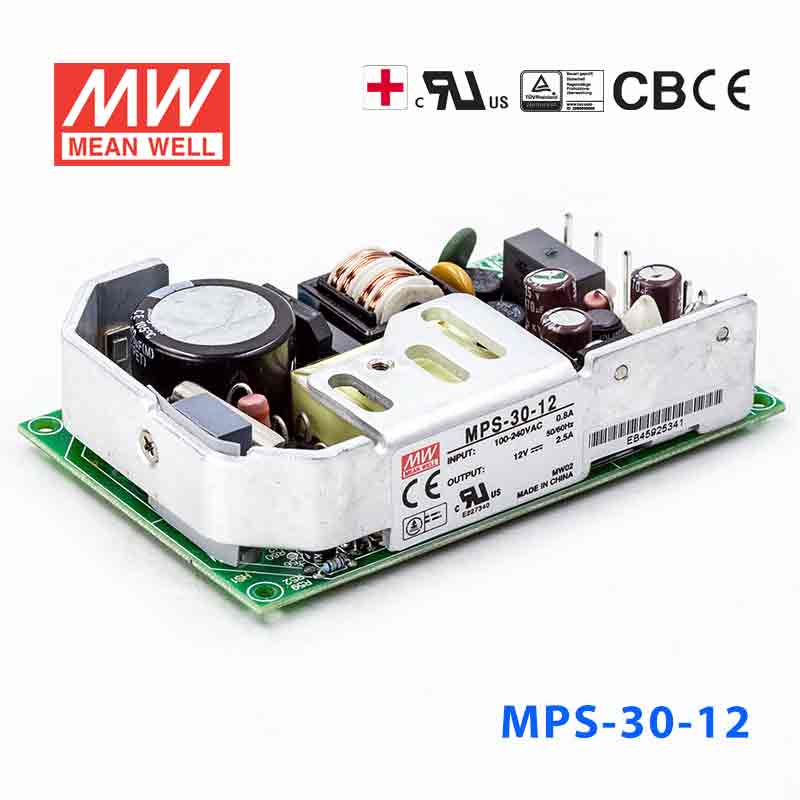

Mean Well MPS-30-12 Power Supply 30W 12V 2.5A
MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <200pA
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓Fixed switching frequency at 100KHz
- ✓Low cost
- ✓High reliability
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length4 in
-
Width2.59 in
-
Height0.93 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
Can I use the MPS-30-12 for a small 12V PLC, relay, or sensor circuit?
Yes, this model is a 12V constant-voltage supply rated for 30W and 2.5A. It is a reasonable fit for compact 12V PLC sections, relays, sensors, and other low-power automation loads that stay within that output limit.
Is the MPS-30-12 suitable for a 12V embedded controller or electronics enclosure?
It can be used for small 12V embedded systems, controller boards, and support electronics that need a constant 12V DC source. The smaller 101.6 × 65.8 × 23.5 mm size also helps where cabinet space is limited.
Would the MPS-30-12 work for light-duty industrial instrumentation at 12V?
Yes, it fits low-power 12V instrumentation, signal-conditioning modules, and monitoring devices if the total demand remains within 30W and 2.5A. It is better suited to lighter 12V loads than higher-power control assemblies.
Can this power supply support a compact 12V bench or test fixture?
It can support a small 12V bench fixture or validation setup that needs a constant-voltage source and modest output. The 88-264VAC input also supports use across a wide AC input range.
Is the MPS-30-12 suitable for outdoor use or washdown areas?
The operating temperature range is -10°C to +60°C, but no IP rating is provided in the specs. That means it is better suited to indoor or protected enclosure use rather than exposed outdoor or washdown environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-30-5 Power Supply 30W 5V 5A | 25W | 5V | 5A | Indoor | $38.92 | View |
| Mean Well MPS-30-48 Power Supply 30W 48V 600mA | 28.8W | 48V | 0.6A | Indoor | $38.92 | View |
| Mean Well MPS-30-27 Power Supply 30W 27V 1.1A | 29.7W | 27V | 1.1A | Indoor | $38.57 | View |
| Mean Well MPS-30-24 Power Supply 30W 24V 1.2A | 28.8W | 24V | 1.2A | Indoor | $38.92 | View |
| Mean Well MPS-30-15 Power Supply 30W 15V 2A | 30W | 15V | 2A | Indoor | $38.92 | View |
