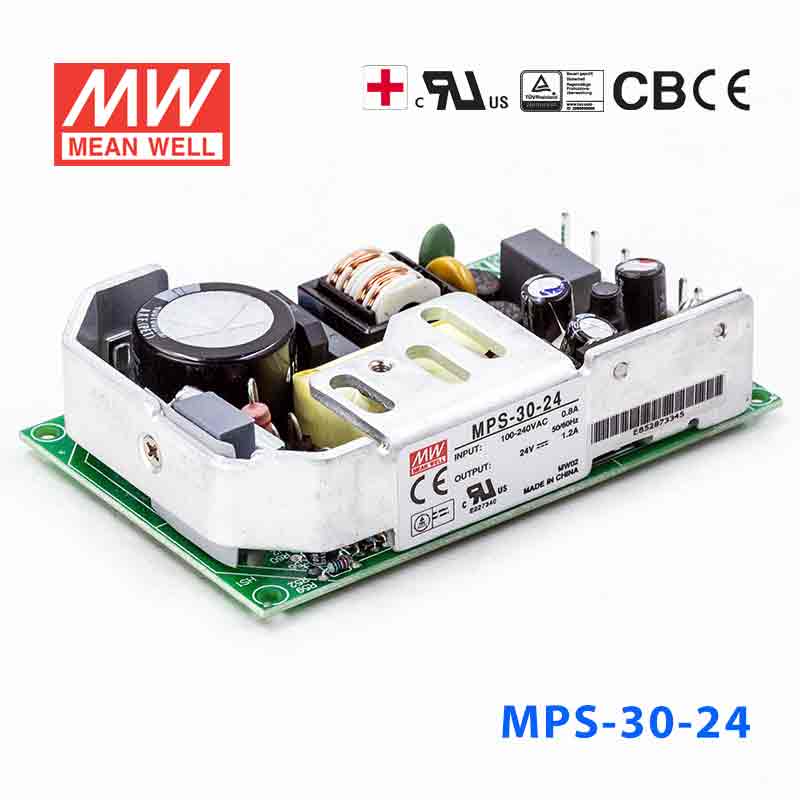

Mean Well MPS-30-24 Power Supply 30W 24V
Description
Description
MEAN WELL MPS-30 Series Power Supplies are 30W singlel output medical type power supplies low cost ,high reliability with 3 years warranty.
Features
- Universal AC input / Full range
- Low leakage current <200pA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2 x MOPP between primary to secondary)
- Fixed switching frequency at 100KHz
- Low cost
- High reliability
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating28.8 Watt
-
Output Voltage24 Volt
-
Rated Current1.2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length4 in
-
Width2.59 in
-
Height0.93 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-30-24 for a 24V PLC accessory or control module?
Yes, if the device needs constant-voltage 24V DC and its demand stays at or below 1.2A. The unit is rated for 28.8W total output, which fits lower-power 24V industrial electronics.
Is this a good fit for a small 24V automation sensor or relay load?
It can support 24V automation components as long as the total load does not exceed 1.2A or 28.8W. For larger 24V loads, a higher-current model in the same series would be a better fit.
Can the MPS-30-24 power a compact 24V embedded or industrial communications device?
It is appropriate for compact 24V DC equipment that operates within the 28.8W output ceiling. The 88-264VAC input range is useful where the equipment may be used with different AC input standards.
Can this power supply be used in an enclosed indoor panel with varying temperatures?
The specified operating range is -10°C to +60°C, so it is intended for use within that temperature span. Because no IP rating is listed, the specs do not support treating it as an outdoor or washdown-rated model.
What are the main differences between the MPS-30-24 and the other lower-power MPS voltage options?
In the smaller-output group, MPS-30-5 is 25W, 5V, 5A; MPS-30-12 is 30W, 12V, 2.5A; MPS-30-15 is 30W, 15V, 2A; MPS-30-27 is 29.7W, 27V, 1.1A; and MPS-30-48 is 28.8W, 48V, 0.6A. The MPS-30-24 version is rated at 28.8W, 24V, 1.2A.
Other MPS-30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-30-5 Power Supply 30W 5V | 25W | 5V | 5A | Indoor | $38.92 | View |
| Mean Well MPS-30-48 Power Supply 30W 48V | 28.8W | 48V | 0.6A | Indoor | $38.92 | View |
| Mean Well MPS-30-27 Power Supply 30W 27V | 29.7W | 27V | 1.1A | Indoor | $38.57 | View |
| Mean Well MPS-30-15 Power Supply 30W 15V | 30W | 15V | 2A | Indoor | $38.92 | View |
| Mean Well MPS-30-12 Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $38.92 | View |
